Transmission Case Reseal

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

GFD264683Courtesy of FORD MOTOR COMPANY
 100-001 (T50T-100-A)
Slide Hammer
GFD264157Courtesy of FORD MOTOR COMPANY
 205-153 (T80T-4000-W)
Handle
GFD267945Courtesy of FORD MOTOR COMPANY
 205-990
Installer, Axle Seal
TKIT-2012A-FL
TKIT-2012A-ROW
GFD267946Courtesy of FORD MOTOR COMPANY
 303-D011 (D80L-100-G)
Actuator Pin (Dia 3/16)
GFD267947Courtesy of FORD MOTOR COMPANY
 303-D019 (D80L-100-Q)
Collet, 3/4 to 7/8
GFD267948Courtesy of FORD MOTOR COMPANY
 307-003 (T57L-500-B)
Holding Fixture, Transmission
GFD267949Courtesy of FORD MOTOR COMPANY
 307-091
Handle, Torque Converter
TKIT-2009TC-F
GFD267950Courtesy of FORD MOTOR COMPANY
 307-566
Retainer, Torque Converter
TKIT-2006C-FFMFLM
TKIT-2006C-LM
TKIT-2006C-ROW
GFD267951Courtesy of FORD MOTOR COMPANY
 307-627
Installer, Converter Seal
TKIT-2008ET-FLM
TKIT-2008ET-ROW
GFD267952Courtesy of FORD MOTOR COMPANY
 307-635
Protector, Turbine Shaft Seal
TKIT-2008ET-FLM
TKIT-2008ET-ROW
GFD267953Courtesy of FORD MOTOR COMPANY
 307-718
Installer, Axle Seal
TKIT-2013B-FL
TKIT-2013B-ROW
GFD267954Courtesy of FORD MOTOR COMPANY
 307-723
Installer, Turbine Seal
TKIT-2014A-FL
GFD267955Courtesy of FORD MOTOR COMPANY
 307-725
Mounting Fixture, Bench
Puller

Materials

Name Specification
Motorcraft® Ultra Silicone Sealant
TA-29		 -

Repair

  1. Remove the transmission. Refer to: Transmission .
  2. For information on component views and base part numbers. Refer to: Transmission Description .

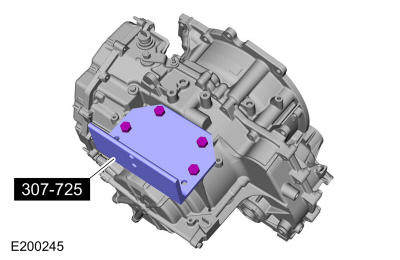

  3. Install the special tool. Use Special Service Tool: 307-725 Mounting Fixture, Bench.
    GFD267956Courtesy of FORD MOTOR COMPANY
  4. Mount the transmission to the bench-mounted holding fixture. Use Special Service Tool: 307-003 (T57L-500-B) Holding Fixture, Transmission, 307-725 Mounting Fixture, Bench.
    GFD267957Courtesy of FORD MOTOR COMPANY

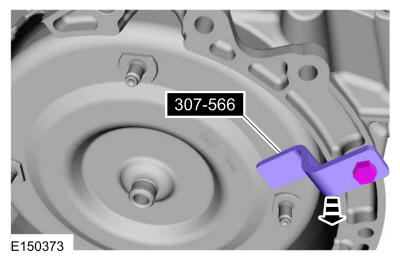

  5. Remove the special tool. Use Special Service Tool: 307-566 Retainer, Torque Converter.
    GFD267958Courtesy of FORD MOTOR COMPANY
  6. NOTE: The torque converter is heavy. Be careful not to drop it or damage will result.

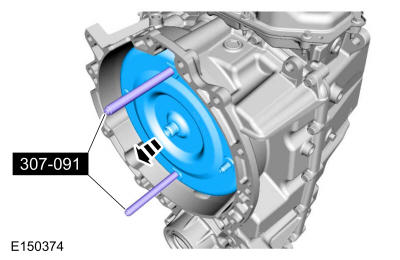

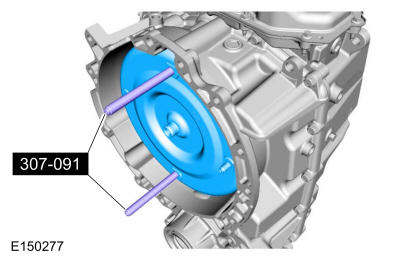

    Using the special tools, remove the torque converter from the transmission. Use Special Service Tool: 307-091 Handle, Torque Converter.

    GFD267959Courtesy of FORD MOTOR COMPANY

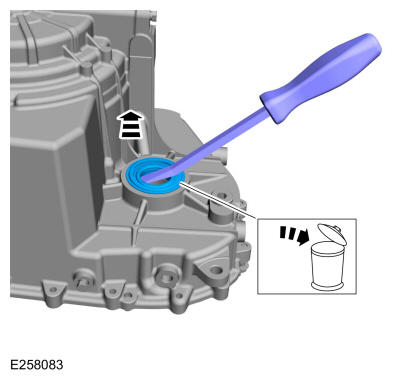

  7. Remove and discard the LH halfshaft seal.
    GFD267960Courtesy of FORD MOTOR COMPANY

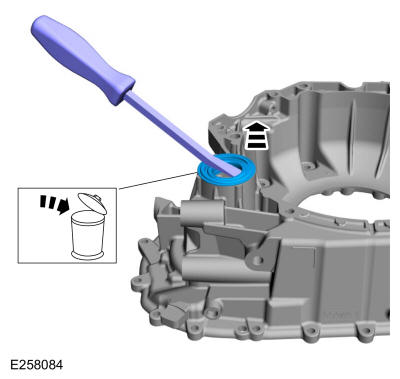

  8. Remove and discard the RH halfshaft seal.
    GFD267961Courtesy of FORD MOTOR COMPANY

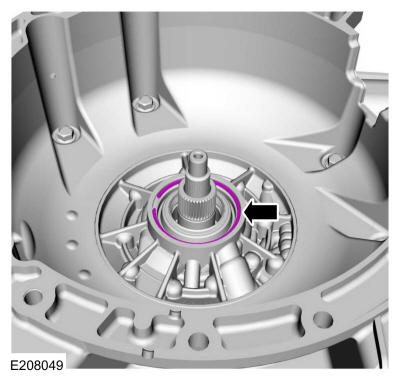

  9. Remove the torque converter hub seal snap ring.
    GFD267962Courtesy of FORD MOTOR COMPANY

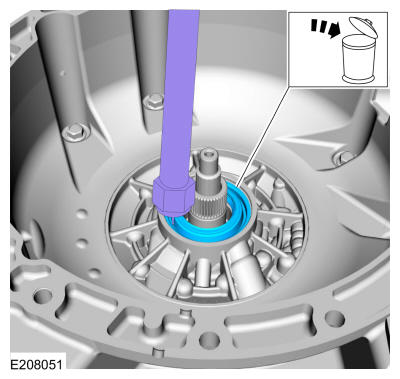

  10. Using a dent puller, remove the torque converter hub seal. Use the General Equipment: Puller
    GFD267963Courtesy of FORD MOTOR COMPANY
  11. NOTE: Note the location of the stud bolts for assembly.

    Remove the torque converter housing bolts.

    GFD267964Courtesy of FORD MOTOR COMPANY

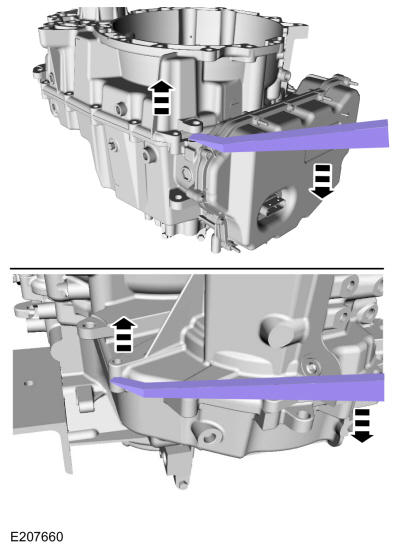

  12. Pry the torque converter housing loose from the transmission case.
    GFD267965Courtesy of FORD MOTOR COMPANY

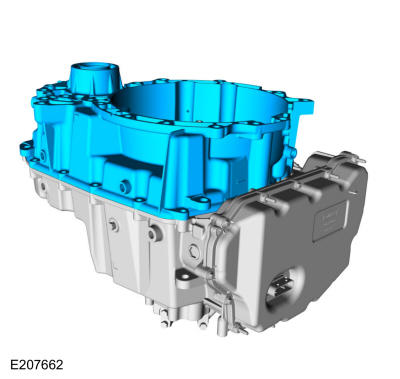

  13. Remove the torque converter housing from the transmission case.
    GFD267966Courtesy of FORD MOTOR COMPANY
  14. Remove and discard the clutch feed seals.

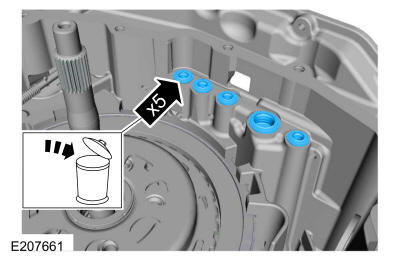

    GFD267967Courtesy of FORD MOTOR COMPANY
    • NOTE: If the LH transmission case bushing or the LH halfshaft bushing surface shows signs of excessive wear or damage, a new LH transmission case bushing and a new LH halfshaft must be installed, or excessive noise or transmission failure can occur.

      Clean and inspect the LH transmission case bushing and the bushing surface on the LH halfshaft for damage or excessive wear. If the LH transmission case bushing or the LH halfshaft shows signs of excessive wear or damage, install new components. Refer to: Transmission Case .

    • NOTE: Do not use metal scrapers, wire brushes, power abrasive discs, or other abrasive means to clean sealing surfaces. These tools cause scratches and gouges which make leak paths.

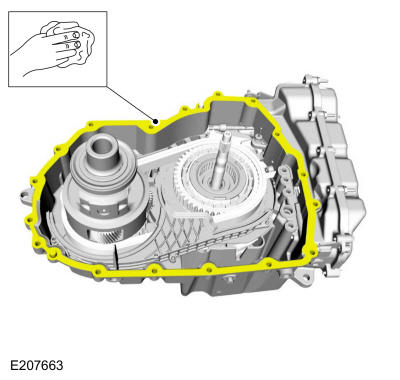

      Make sure that the mating faces are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation .

    GFD267968Courtesy of FORD MOTOR COMPANY
    • Inspect the torque converter housing and the differential ring gear for damage or excessive wear. If the differential ring gear shows signs of excessive wear or damage replace the differential ring gear. Refer to: Transmission Case .

    • NOTE: Do not use metal scrapers, wire brushes, power abrasive discs, or other abrasive means to clean sealing surfaces. These tools cause scratches and gouges which make leak paths.

      Make sure that the mating faces are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation .

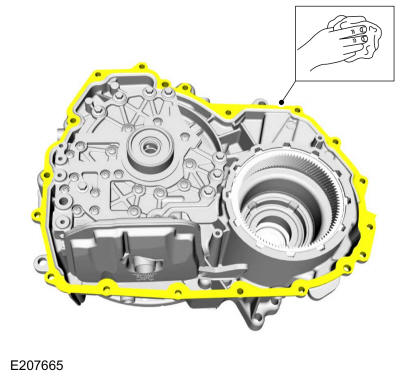

    GFD267969Courtesy of FORD MOTOR COMPANY

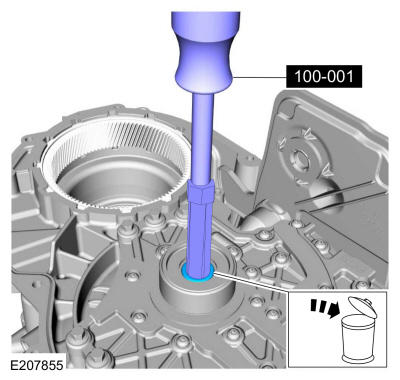

  17. Assemble the special tools and remove and discard the input shaft seal. Use Special Service Tool: 100-001 (T50T-100-A) Slide Hammer, 303-D011 (D80L-100-G) Actuator Pin (Dia 3/16), 303-D019 (D80L-100-Q) Collet, 3/4 to 7/8.
    GFD267970Courtesy of FORD MOTOR COMPANY
  18. Install a new input shaft seal on the special tool. Use Special Service Tool: 307-723 Installer, Turbine Seal.
    GFD267971Courtesy of FORD MOTOR COMPANY

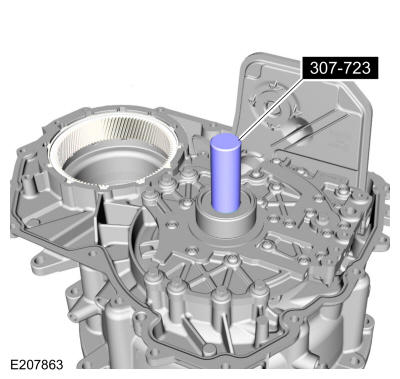

  19. Using the special tool, install the input shaft seal. Use Special Service Tool: 307-723 Installer, Turbine Seal.
    GFD267972Courtesy of FORD MOTOR COMPANY
  20. Install the 5 new clutch feed seals.

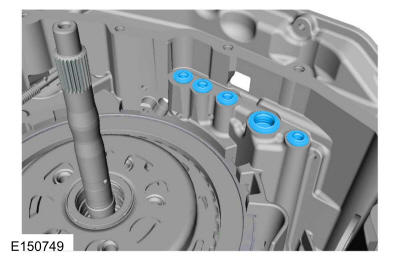

    GFD267973Courtesy of FORD MOTOR COMPANY

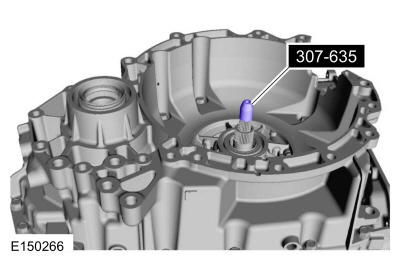

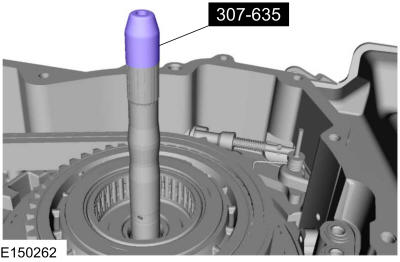

  21. Install the special tool on the input shaft. Use Special Service Tool: 307-635 Protector, Turbine Shaft Seal.
    GFD267974Courtesy of FORD MOTOR COMPANY
  22. Verify the thrust washer and thrust bearing are correctly installed.

    1. No. 13 thrust washer.
    2. No. 11 drive sprocket thrust bearing.

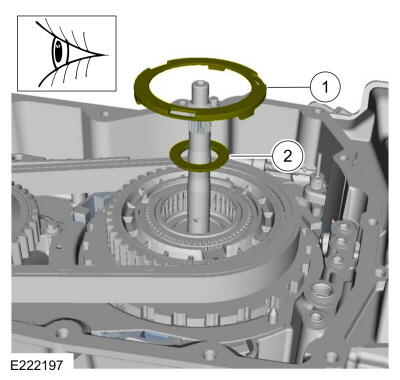

    GFD267975Courtesy of FORD MOTOR COMPANY
  23. NOTE: Be sure the sealing surfaces of the torque converter housing and the transmission housing are free of oil before applying silicone.

    Apply silicone to the sealing surface of the transmission case.

    Material: Motorcraft® Ultra Silicone Sealant / TA-29

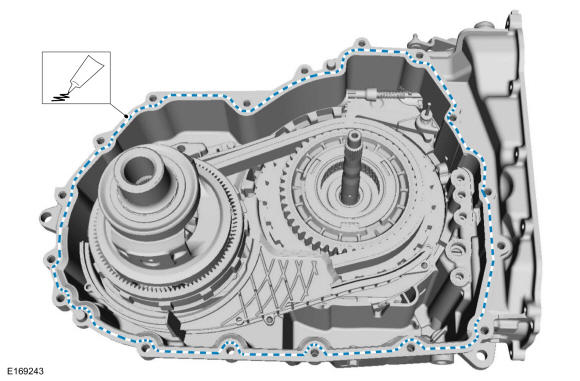

    GFD267976Courtesy of FORD MOTOR COMPANY
  24. Install the torque converter housing on the transmission case.
    GFD267966Courtesy of FORD MOTOR COMPANY
  25. NOTE: Be sure the torque converter housing stud bolt is in the correct location as noted during disassembly.

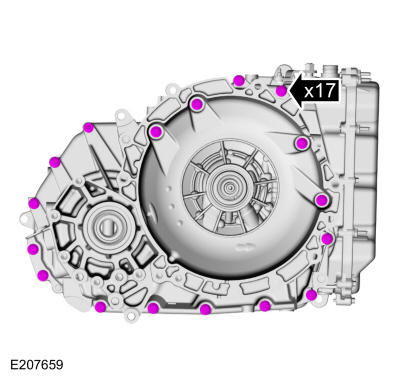

    Install the torque converter housing bolts and the torque converter housing stud bolt.

    Torque: 24 lb.ft (32 Nm)

    GFD267964Courtesy of FORD MOTOR COMPANY
  26. Remove the special tool. Remove Special Service Tool: 307-635 Protector, Turbine Shaft Seal.
    GFD267977Courtesy of FORD MOTOR COMPANY
  27. Install a new torque converter hub seal on the special tool. Use Special Service Tool: 307-627 Installer, Converter Seal.
    GFD267978Courtesy of FORD MOTOR COMPANY

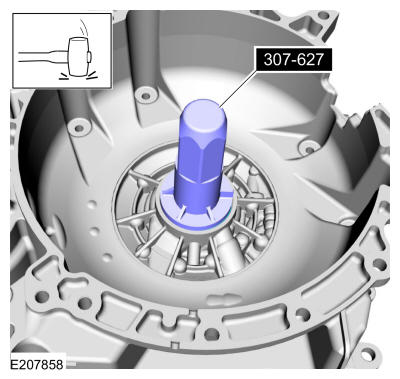

  28. Using the special tool, install a new torque converter hub seal. Use Special Service Tool: 307-627 Installer, Converter Seal.
    GFD267979Courtesy of FORD MOTOR COMPANY

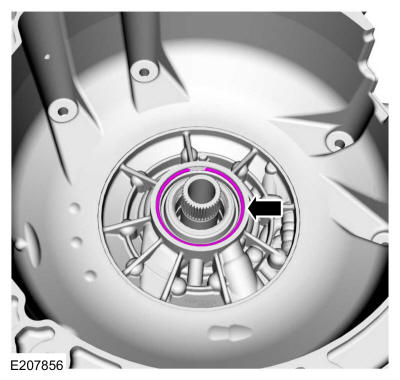

  29. Install the torque converter hub seal snap ring.
    GFD267980Courtesy of FORD MOTOR COMPANY

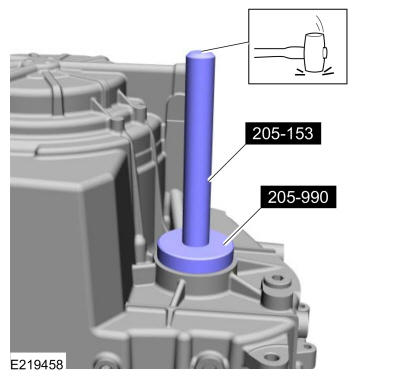

  30. Assemble the special tools. Install a new LH halfshaft seal on the special tool. Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 205-990 Installer, Axle Seal.
    GFD267981Courtesy of FORD MOTOR COMPANY
  31. Using the special tools, install the new LH halfshaft seal in the transmission case. Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 205-990 Installer, Axle Seal.
    GFD267982Courtesy of FORD MOTOR COMPANY
  32. NOTE: FWD Vehicles.

    Assemble the special tools and install a new RH halfshaft seal on the special tool. Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 205-990 Installer, Axle Seal.

    GFD267981Courtesy of FORD MOTOR COMPANY
  33. NOTE: FWD Vehicles.

    Using the special tools, install the new RH halfshaft seal. Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 205-990 Installer, Axle Seal.

    GFD267983Courtesy of FORD MOTOR COMPANY
  34. NOTE: AWD Vehicles.
    NOTE: Special tool 307-718 is reversible, make sure it is assemble correctly for AWD vehicles.

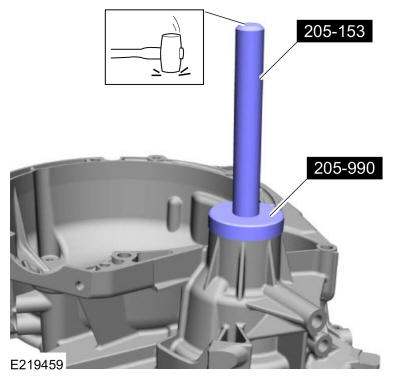

    Assemble the special tools and install a new RH halfshaft seal on the special tool. Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 307-718 Installer, Axle Seal.

    GFD267984Courtesy of FORD MOTOR COMPANY
  35. NOTE: AWD Vehicles.

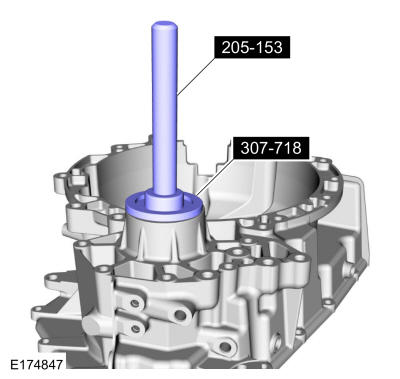

    Using the special tools, install the new RH halfshaft seal. Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 307-718 Installer, Axle Seal.

    GFD267985Courtesy of FORD MOTOR COMPANY
  36. NOTE: The torque converter is heavy. Be careful not to drop it or damage will result.

    Using the special tools, install the torque converter. Use Special Service Tool: 307-091 Handle, Torque Converter.

    GFD267986Courtesy of FORD MOTOR COMPANY

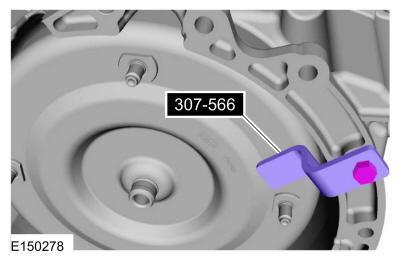

  37. Install the special tool. Use Special Service Tool: 307-566 Retainer, Torque Converter.
    GFD267987Courtesy of FORD MOTOR COMPANY

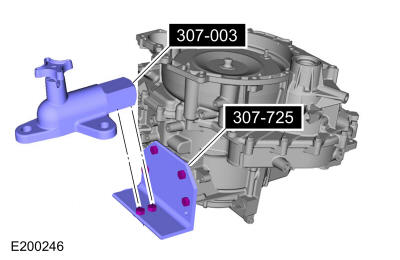

  38. Remove the transmission from the bench-mounted holding fixture. Use Special Service Tool: 307-003 (T57L-500-B) Holding Fixture, Transmission, 307-725 Mounting Fixture, Bench.
    GFD267957Courtesy of FORD MOTOR COMPANY
  39. Remove the special tool. Use Special Service Tool: 307-725 Mounting Fixture, Bench.
    GFD267956Courtesy of FORD MOTOR COMPANY
  40. Install the transmission. Refer to: Transmission .
