Powertrain Control Module (PCM): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
-
NOTE: This step is only necessary when installing a new component.
Download the module information to the diagnostic tool using the Programmable Modules Installation routine. Use the General Equipment: Ford Diagnostic Equipment
- Refer to: BATTERY DISCONNECT AND CONNECT
- Refer to: FENDER SPLASH SHIELD
Vehicles without PCM security shield

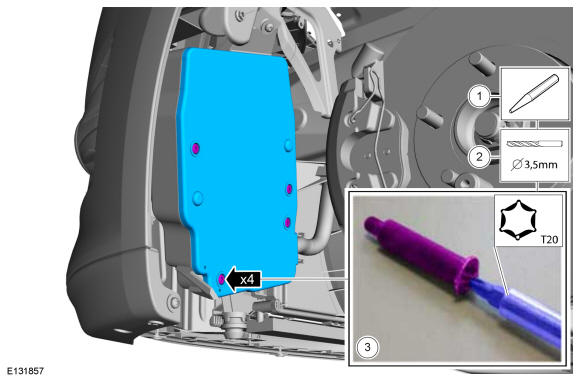

Vehicles with PCM security shield
- Use the General Equipment: Center Punch. Use the General Equipment: 3.5 mm Drill Bit
All vehicles
