Oil Cooler: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

Refer to: Battery Disconnect and Connect .

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

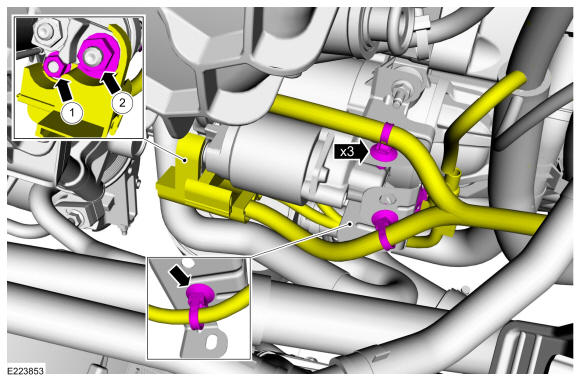

1. Torque
  : 106 lb.in (12 Nm)
2. Torque
  : 159 lb.in (18 Nm)
Courtesy of FORD MOTOR COMPANY

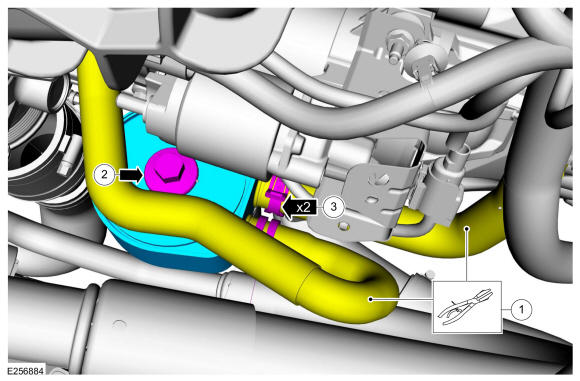

1. Use the General Equipment: Hose Clamp(s)
2. NOTE: Make sure that the mating faces are clean and free of foreign material.

  Torque

  :Stage 1: 17 lb.ft (23 Nm) Stage 2: 75°Stage 3: 15°
3. NOTE: Be prepared to collect escaping fluid.

  Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY
