Valve Cover: Installation

WARNING: This page is about a different variant/trim than selected.

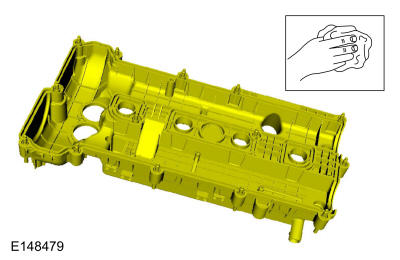

NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths.

Make sure that the surface is clean and free of foreign material.

Material

: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

Courtesy of FORD MOTOR COMPANY
NOTE: Installation of new seals is only required if damaged seals were removed during disassembly of the engine.

Using the special tools, install the VCT solenoid seals. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

Courtesy of FORD MOTOR COMPANY
Install the new valve cover gaskets.

Courtesy of FORD MOTOR COMPANY

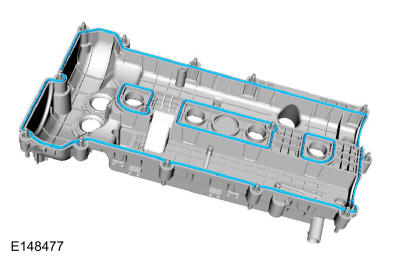

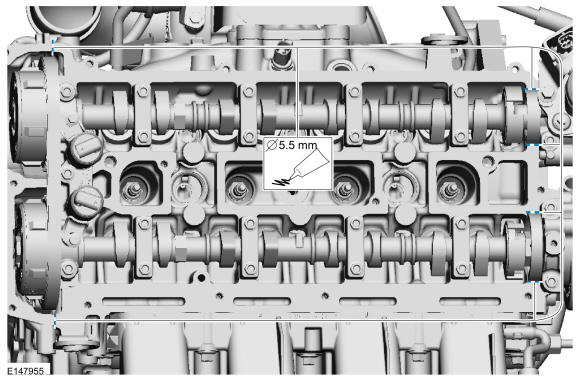

Apply a 5.5 mm (0.216 in) bead of silicone sealant.
Material

: Motorcraft® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Courtesy of FORD MOTOR COMPANY
NOTE: The valve cover must be secured within 10 minutes of silicone gasket application. If the valve cover is not secured within 10 minutes, the sealant must be removed and the sealing area cleaned with metal surface prep.

Install the valve cover and the bolts in sequence shown.

Material

: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

Torque

: 89 lb.in (10 Nm)

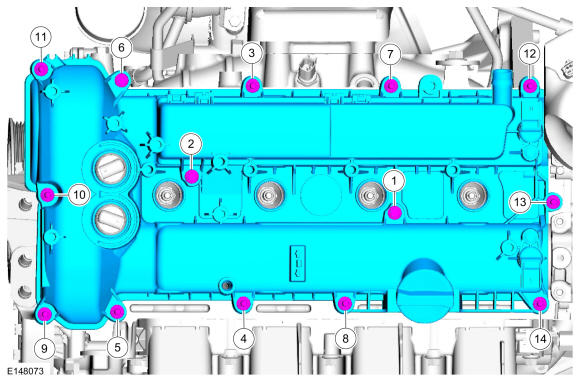

Fig 1: Valve Cover Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY

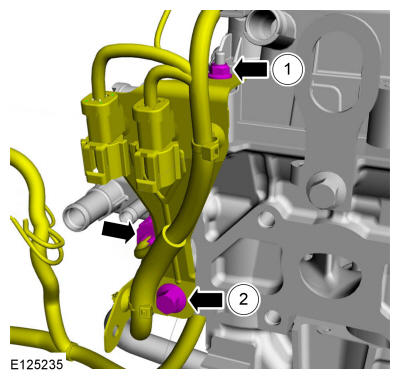

Position the bracket and install the nut and the bolt. Connect the electrical connector.
Torque

:1: 89 lb.in (10 Nm) 2: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

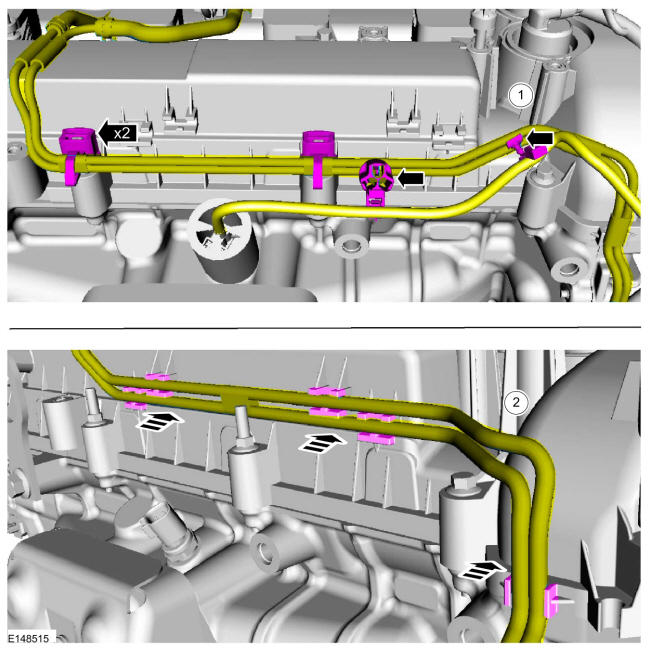

1. NOTE: Early build vehicles equipped with metal vacuum tubes.

  Attach the vacuum tubes and wiring harness retainers.
2. NOTE: Late build vehicles equipped with nylon vacuum tubes.

  Attach the vacuum tubes retainers.
Courtesy of FORD MOTOR COMPANY
- Install the EVAP canister purge valve.
- Connect the vacuum tube quick release coupling. Refer to: Quick Release Coupling .
Courtesy of FORD MOTOR COMPANY

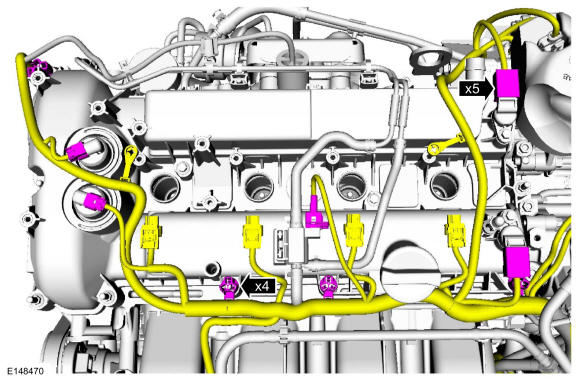

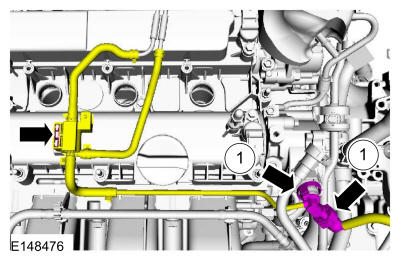

Position the wiring harness, attach the retainers and connect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

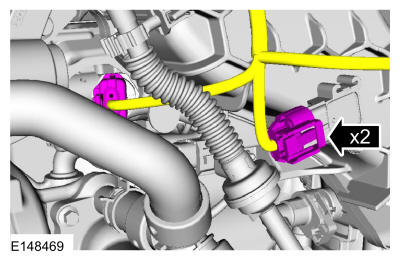

Connect the MAP and FRP sensor electrical connectors.

Courtesy of FORD MOTOR COMPANY
Install the ignition coil-on-plugs. Refer to: IGNITION COIL-ON-PLUG .

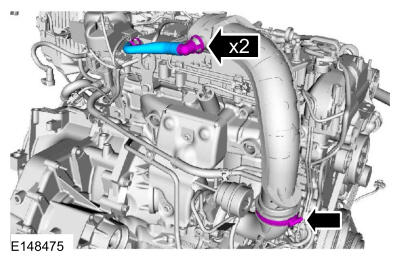

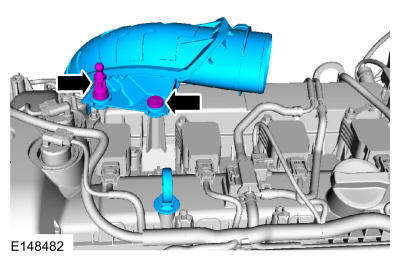

- Install the TC inlet pipe, stud and bolt.
  Torque

  : 106 lb.in (12 Nm)
- Install the oil level indicator.
Courtesy of FORD MOTOR COMPANY
- Install the PCV hose and connect the couplings.
- Tighten the TC inlet pipe clamp.
  Torque

  : 44 lb.in (5 Nm)
Courtesy of FORD MOTOR COMPANY
1. Install the underbody shield and the retainers.
2. Install the underbody shield reinforcement and the retainers.
Courtesy of FORD MOTOR COMPANY

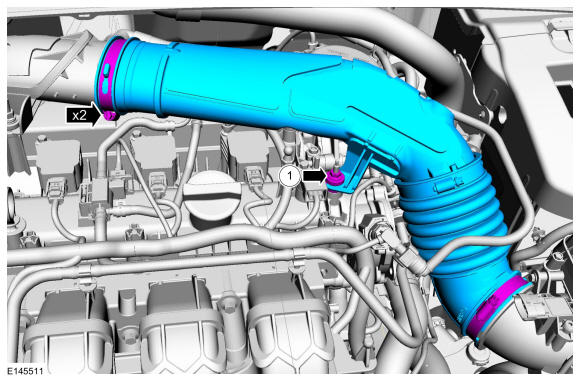

- Install the upper air cleaner outlet pipe and the nut.
  Torque

  :1: 106 lb.in (12 Nm)
- Tighten the upper air cleaner outlet pipe clamps.
Courtesy of FORD MOTOR COMPANY
Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
Install the cowl panel grille. Refer to: Cowl Panel Grille .
