Intake Manifold: Removal

WARNING: This page is about a different variant/trim than selected.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
- Disconnect the MAP and FRP sensor electrical connectors.
- Detach the retainer and position the fuel evaporative tube aside.
Courtesy of FORD MOTOR COMPANY
- Detach the retainers and position the fuel evaporative tube aside.
- Disconnect and position the sound symposer hose aside.
Courtesy of FORD MOTOR COMPANY
1. Remove the retainers and the underbody shield reinforcement.
2. Remove the retainers and the underbody shield.
Courtesy of FORD MOTOR COMPANY
1. Disconnect the fuel evaporative tube quick release coupling. Refer to: Quick Release Coupling .
2. Loosen clamp and position the air inlet pipe aside and detach the electrical connector retainers.
Courtesy of FORD MOTOR COMPANY
- Detach the wiring harness retainers.
- Disconnect the PCV tube coupling.
- Remove the bolts and the intake manifold.

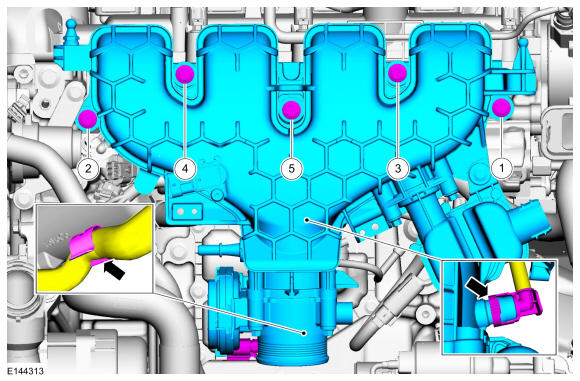

Fig 1: Intake Manifold Bolts Loosening Sequence

Courtesy of FORD MOTOR COMPANY
