Variable Camshaft Timing (VCT) Unit: Installation

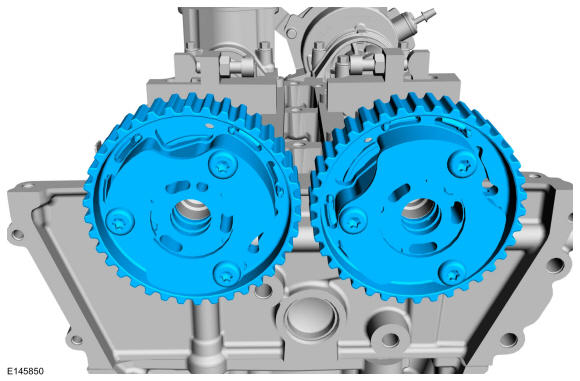

- Install the VCT units.

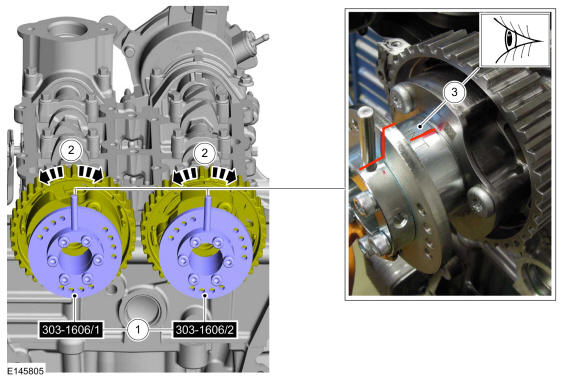

- Install Special Service Tool: 303-1606 Locking Tool, Variable Camshaft Timing.
-
NOTE: Only tighten the bolts finger tight at this stage.

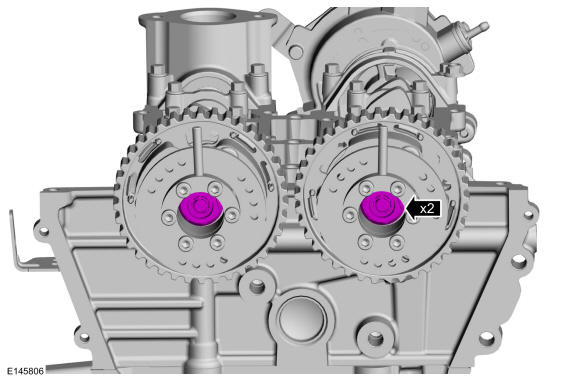

Install the VCT units mounting bolt.
- Remove Special Service Tool: 303-1606 Locking Tool, Variable Camshaft Timing.
- Install timing belt in sequence shown.
-
WARNING: Take extra care when handling the compressed spring.
Remove the locking pin.
-

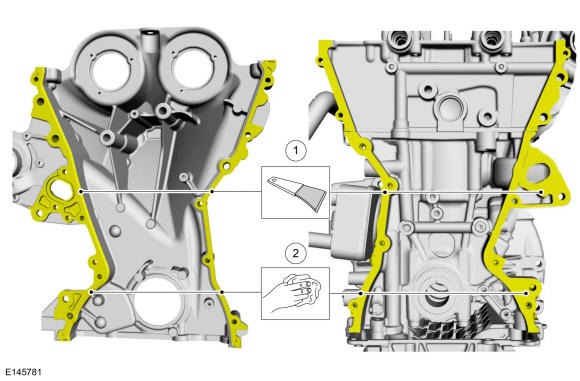

NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove traces of sealant.
- Clean only the specified area with the specified material and a plastic scraping tool to remove traces of sealant. Use the General Equipment: Plastic Scraper
- Make sure that the surface is clean and free of foreign material.
Material
: Motorcraft® Metal Surface Prep Wipes / ZC-31-B
-

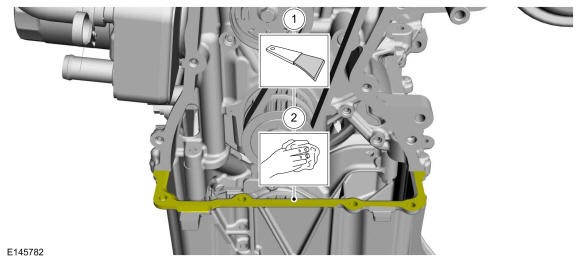

NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove traces of sealant.
- Clean only the specified area with the specified material and a plastic scraping tool to remove traces of sealant. Use the General Equipment: Plastic Scraper
- Make sure that the surface is clean and free of foreign material.
Material
: Motorcraft® Metal Surface Prep Wipes / ZC-31-B
-
NOTE: The component must be installed within 10 minutes of applying the sealant.
Apply beads of silicone sealant that are 4 mm (0.157 in) and 6 mm (0.236 in) as shown in the graphic.
Material
: Motorcraft® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)
-
NOTE: The component must be installed within 10 minutes of applying the sealant.
Apply beads of silicone sealant that are 4 mm (0.157 in) on the edge of the engine oil pan.
Material
: Motorcraft® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)
- Install the engine front cover, bolts and tighten in the sequence shown.
-
NOTE: Make sure that new components are installed.
Torque
:1-2, M6x60: 44 lb.in (5 Nm)
-
NOTE: Make sure that new components are installed.
Torque
:3-6, M10x95: 89 lb.in (10 Nm)
-
NOTE: Make sure that new components are installed.
Torque
:7-16 M6x60: 44 lb.in (5 Nm)
- Torque
:17-19 M6x60: 44 lb.in (5 Nm)20 M6x75: 44 lb.in (5 Nm)
- Torque
:3-6: 30 lb.ft (40 Nm)
- Torque
:3-4:Stage 1: 52 lb.ft (70 Nm) Stage 2: 90°
- Torque
:5-6:Stage 1: 52 lb.ft (70 Nm) Stage 2: 90°
- 1-2
Torque
:Stage 1: 80 lb.in (9 Nm) Stage 2: 90°
- 7-20
Torque
:Stage 1: 133 lb.in (15 Nm) Stage 2: 90°
-

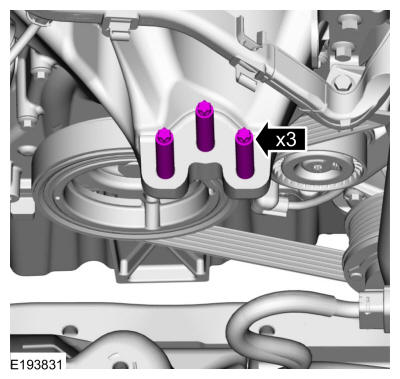

- Tighten the RH engine mount studs.
Torque
: 89 lb.in (10 Nm)
-
- Install the RH engine mount and the nuts.
Torque
: 85 lb.ft (115 Nm)
- Install the RH engine mount bolts finger-tight.
- Install the RH engine mount and the nuts.
- Release the jack. Use the General Equipment: Trolley Jack. Use the General Equipment: Wooden Block
- Tighten the RH engine mount bracket bolts.
Torque
: 66 lb.ft (90 Nm)

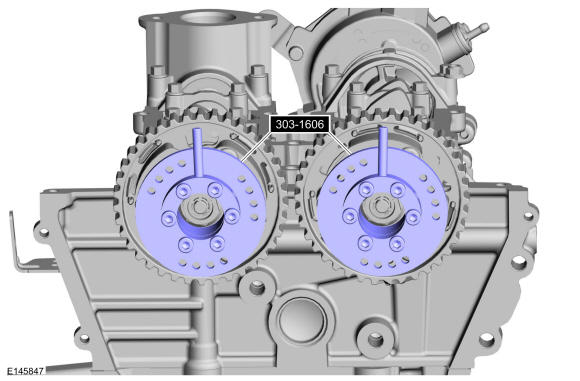

- Install Special Service Tool: 303-1606 Locking Tool, Variable Camshaft Timing.
Torque
: 89 lb.in (10 Nm)
-
- Turn until resistance is felt.
- Torque
: 133 lb.in (15 Nm)
-

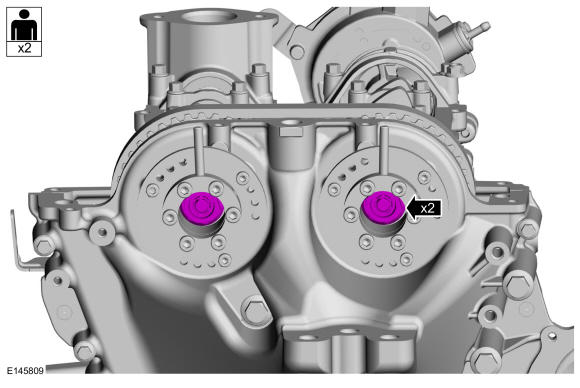

NOTE: Use an open-ended wrench to hold the camshafts by the hexagon to prevent the camshafts from turning.
Tighten the VCT units bolt.
Torque
: 22 lb.ft (30 Nm)
- Remove Special Service Tool: 303-1605 Alignment Tool, Camshaft.
-
NOTE: Use an open-ended wrench to hold the camshafts by the hexagon to prevent the camshafts from turning.
Tighten the VCT units bolt.
Torque
:Stage 1: 37 lb.ft (50 Nm) Stage 2: 70 lb.ft (95 Nm) Stage 3: 45°
-
NOTE: Make sure that a new component is installed.NOTE: Only tighten the bolt finger tight at this stage.
-
NOTE: Only tighten the bolt finger tight at this stage.
-
NOTE: Only tighten the bolt finger tight at this stage.
- Torque
: 89 lb.in (10 Nm)
- Torque
: 89 lb.in (10 Nm)
- Torque
: 22 lb.ft (30 Nm)
-
NOTE: The air intake pipes and wiring harness retainers will be installed during the valve cover installation.
Install the crankshaft front seal. Refer to: Crankshaft Front Seal .
- Install the engine lifting bracket and the bolts.
Torque
: 17 lb.ft (23 Nm)
- Position the coolant hose assembly, attach the retainers and install the bolts.
Torque
: 89 lb.in (10 Nm)
-
NOTE: Make sure that the mating faces are clean and free of foreign material.
-
-
NOTE: Make sure that the component is correctly installed.
-
NOTE: Only tighten the bolts finger tight at this stage.
-
- Torque
:1-3: 89 lb.in (10 Nm)4: 27 lb.in (3 Nm)
- Connect the throttle body electrical connector and attach the wiring harness retainer.
- Attach the wiring harness retainers.
-

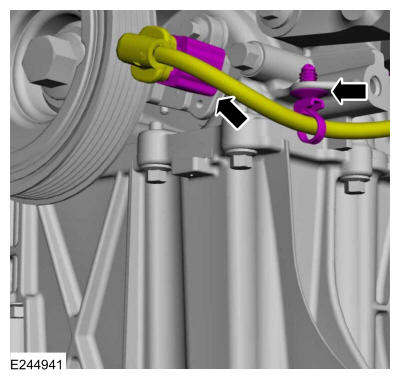

- Connect the CKP sensor electrical connector.
- Attach the wiring harness retainer.
- Install the following items:
- Refer to: Generator - 1.0L EcoBoost (92kW/125PS) .
- Refer to: CATALYTIC CONVERTER .
- Refer to: Valve Cover .
-
WARNING: Be prepared to collect escaping fluid.
Remove the drain plug, drain engine oil and install drain plug. Use the General Equipment: Oil Drain Equipment
Torque
: 18 lb.ft (25 Nm)
-
WARNING: Be prepared to collect escaping fluid.
Remove and discard the engine oil filter. Use the General Equipment: Oil Drain Equipment
-

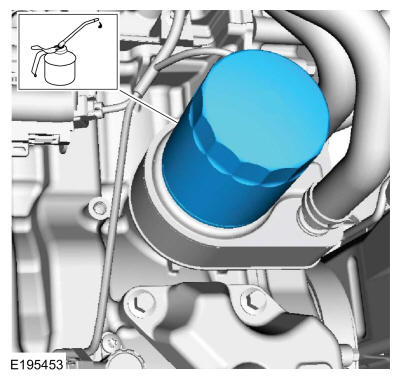

NOTE: Lubricate the engine oil filter seal with clean engine oil.
Install a new engine oil filter.
Material
: Motorcraft® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)
Torque
: 133 lb.in (15 Nm)

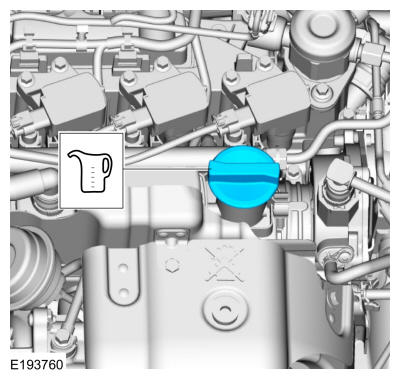

- Fill the engine with clean engine oil. Refer to: Specifications .
Material
: Motorcraft® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)
- Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
- After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure using a diagnostic scan tool.
