Fuel Lines: Removal
WARNING: This page is about a different car, the 2018 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the Fuel Tank. Refer to: Fuel Tank .
-

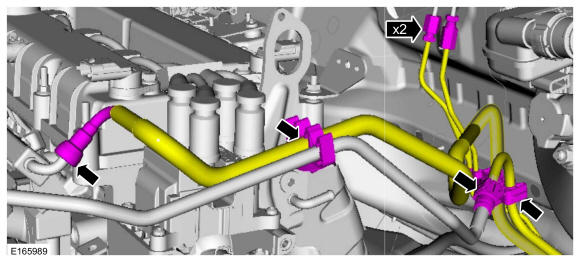

- Disconnect the brake lines.
- Disconnect the fuel feed and vapor lines. Refer to: Spring Lock Couplings
.
Refer to: Quick Release Coupling
.
Torque: 155 lb.in (17.5 Nm)
-

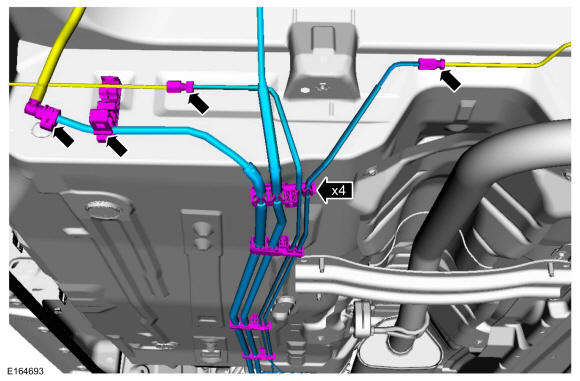

- Disconnect the brake lines.
- Disconnect fuel line quick release coupling. Refer to: Quick Release Coupling .
- Release the retainers and remove the fuel line bundle.
Torque: 155 lb.in (17.5 Nm)
