Battery Disconnect and Connect

WARNING: This page is about a different car, the 2018 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Disconnect

WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

Follow the health and safety precautions. Refer to: Health and Safety Precautions .

NOTE: Battery cable with a battery monitoring sensor shown. Battery cable without a battery monitoring sensor similar.

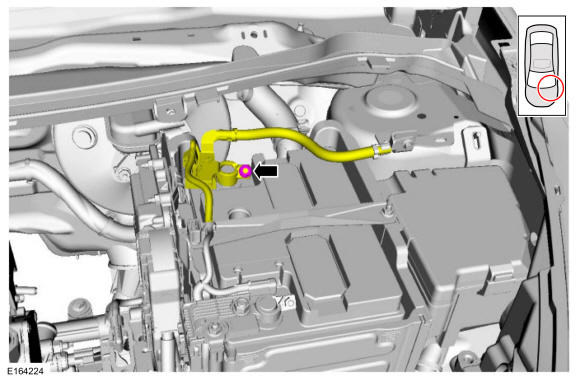

Loosen the nut and position the negative battery cable.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: To interrupt power to the vehicle electrical system, disconnect the battery ground cable only. It is not necessary to disconnect the positive battery cable.

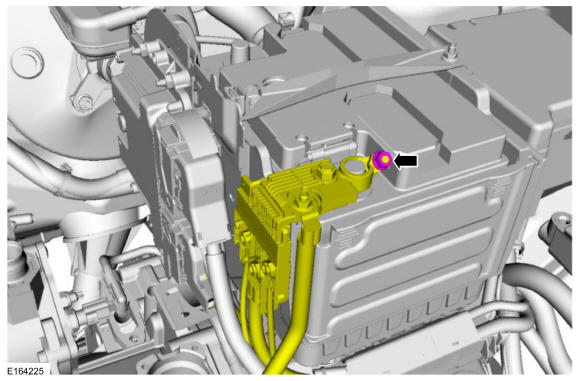

Loosen the nut and position the positive battery cable.

Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

Connect

To install, reverse the removal procedure.
If equipped with power windows, perform the window motor initialization. Refer to: Power Door Window Initialization - Vehicles With: One-Touch Open and Close Driver Window/One-Touch Open and Close Front Windows .
