Selector Mechanism: Installation

WARNING: This page is about a different variant/trim than selected.

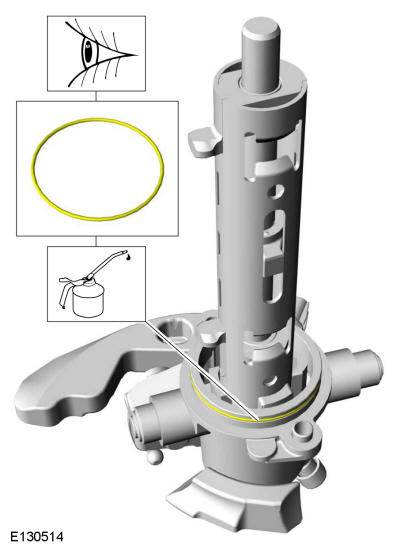

NOTE: The O-ring seal is to be reused unless damaged.

Lubricate and install the O-ring.

Material: Motorcraft® Dual Clutch Transmission Fluid / XT-11-QDC (WSS-M2C200-D2)

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that no components catch.

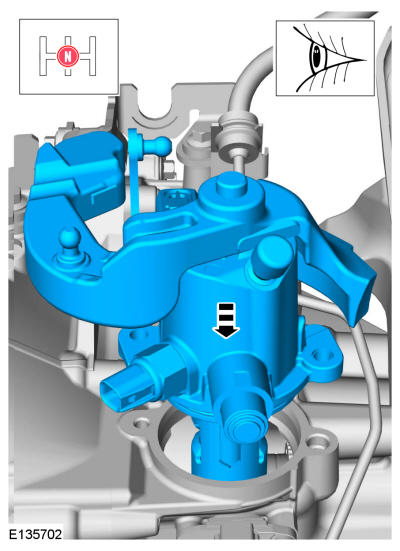

- Make sure that the shift forks are in the N position.
- Install the selector mechanism.
Courtesy of FORD MOTOR COMPANY

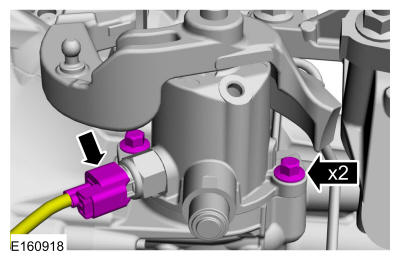

Connect the electrical connector and install the bolts.
Torque: 18 lb.ft (24 Nm)

Courtesy of FORD MOTOR COMPANY
Refer to: Gearshift Cable Adjustment - 6-Speed Manual Transmission - B6 .

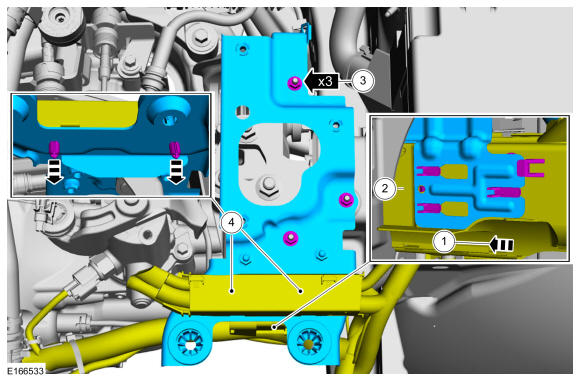

1. Slide and install the wiring harness.
2. Install the retainers.
3. Install the battery tray support bracket and nuts.
4. Install the wiring harness.
Courtesy of FORD MOTOR COMPANY
Install the battery tray. Refer to: Battery Tray - 1.6L EcoBoost (132kW/180PS) - Sigma .
Install the battery. Refer to: Battery .
Install the air cleaner. Refer to: Air Cleaner .
