Input Shaft Seal: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the transmission. Refer to: Transmission .

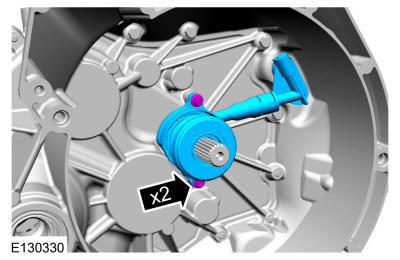

- Remove the bolts and the slave cylinder.
-
NOTE: Take extra care not to damage the bearing.

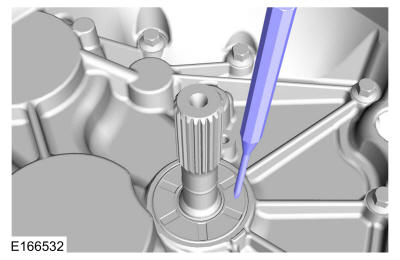

Using a punch, poke a hole in the input shaft seal. Use the General Equipment: Center Punch
-

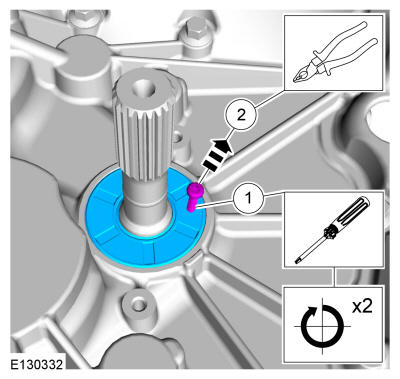

- 2.5 x 15 mm self-tapping screw Using a 2.5 x 15 mm self-tapping screw, thread a 2.5 x 15 mm self tapping screw into the input shaft seal 2 complete turns.
- Using a pair of pliers, pull on the screw and remove the seal.
