Section 3 (Manual Transmission - 6-Speed Manual Transmission - B6): Removal: Transmission

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	303-1502 Lifting Device Engine TKIT-2012A-FL TKIT-2012A-ROW
Courtesy of FORD MOTOR COMPANY	303-F072 Support Bar, Engine
Transmission Jack
Retaining Strap
Wooden Block

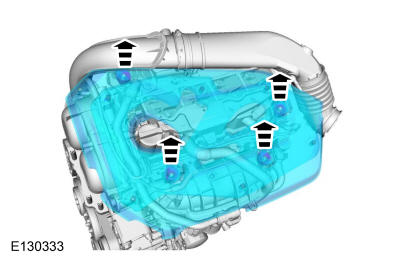

1. If equipped. Remove the engine appearance cover.

   Courtesy of FORD MOTOR COMPANY

2. Remove the battery tray. Refer to: Battery Tray - 1.6L EcoBoost (132kW/180PS) - Sigma .

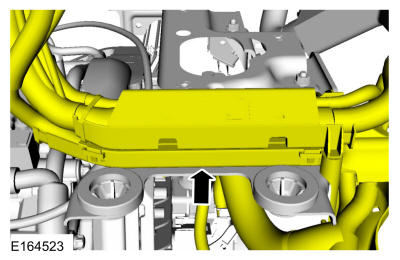

3. Detach and position aside the wiring harness.

   Courtesy of FORD MOTOR COMPANY

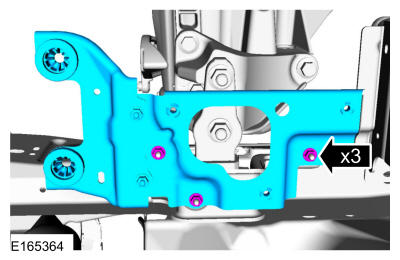

4. Remove the nuts and the battery tray bracket.

   Courtesy of FORD MOTOR COMPANY

5. Disconnect the shift cable from the transmission and position aside.
   • Slide the locking tab and disconnect the gearshift cables from the transmission.

   Courtesy of FORD MOTOR COMPANY

6. Remove the bolts and the gearshift cable bracket.

   Courtesy of FORD MOTOR COMPANY

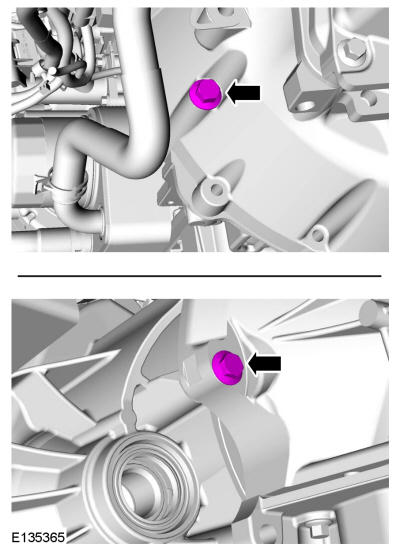

7. NOTE: Note the different lengths of the bolts.

   Remove the bellhousing bolts.

   Courtesy of FORD MOTOR COMPANY

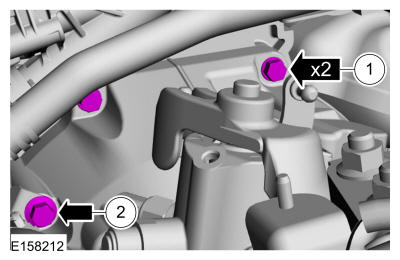

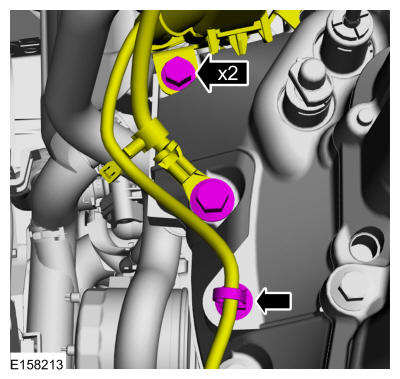

8. Remove the bolts, ground cable mounting and disconnect the wiring retainer.

   Courtesy of FORD MOTOR COMPANY

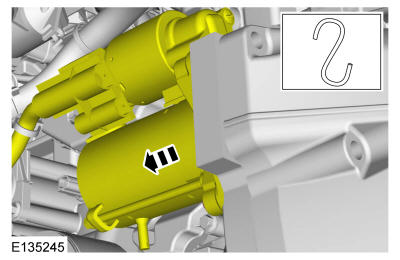

9. Detach the starter motor and position aside.

   Courtesy of FORD MOTOR COMPANY

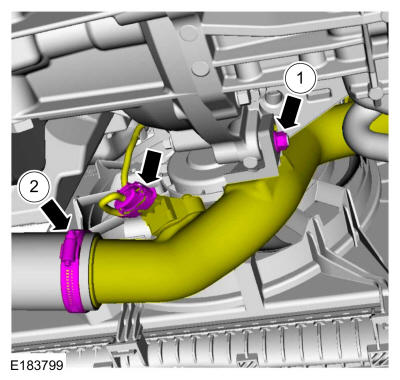

10. Disconnect the electrical connector and position aside the CAC outlet tube assembly.
    1. Remove the nut.
    2. Loosen the clamp.
    • Disconnect the electrical connector and position aside the hose.

    Courtesy of FORD MOTOR COMPANY

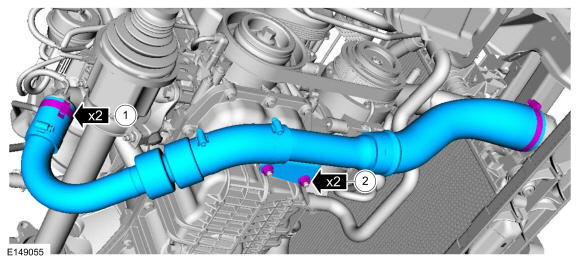

11. Remove the CAC inlet tube assembly.
    1. Loosen the clamps.
    2. Remove the nuts.

    Courtesy of FORD MOTOR COMPANY

12. Support the exhaust flexible pipe with a support wrap or suitable splint.

    Courtesy of FORD MOTOR COMPANY

13. Unhook the rear exhaust hanger isolator.

    Courtesy of FORD MOTOR COMPANY

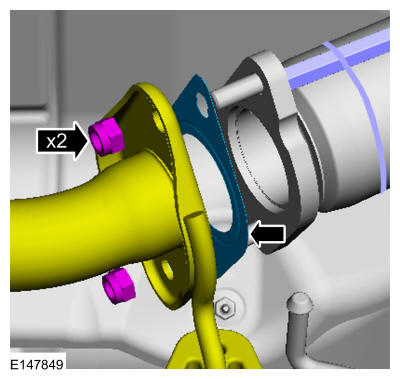

14. Remove and discard the muffler and tailpipe flange nuts and gasket.

    Courtesy of FORD MOTOR COMPANY

15. Remove the catalytic converter support bracket.

    Courtesy of FORD MOTOR COMPANY

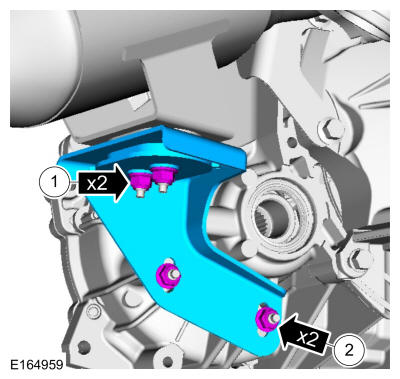

16. NOTE: Note the different lengths of the bolts.

    Remove the bolts and the roll restrictor RH.

    Courtesy of FORD MOTOR COMPANY

17. Remove the front subframe. Refer to: Front Subframe .

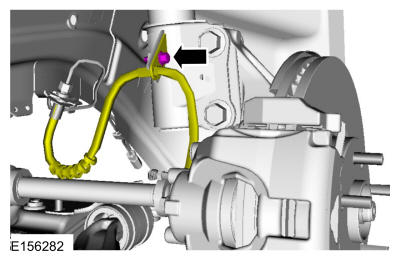

18. Remove the bolt and position aside the RH brake hose.

    Courtesy of FORD MOTOR COMPANY

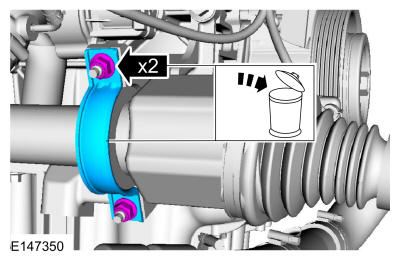

19. Remove and discard the halfshaft retaining strap and the halfshaft retaining strap nuts.

    Courtesy of FORD MOTOR COMPANY

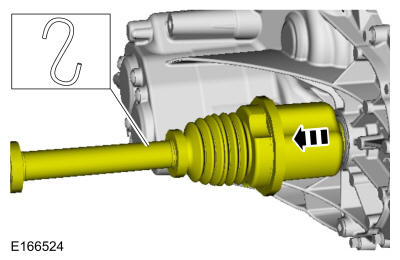

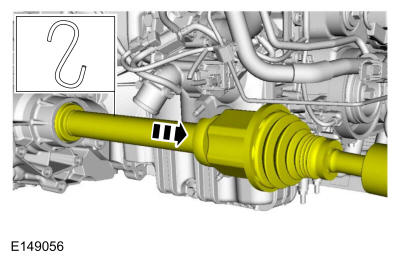

20. Remove and support the RH halfshaft from the transmission.

    Courtesy of FORD MOTOR COMPANY

21. Remove the bolt and position aside the LH brake hose.

    Courtesy of FORD MOTOR COMPANY

22. Remove and support the LH halfshaft from the transmission.

    Courtesy of FORD MOTOR COMPANY

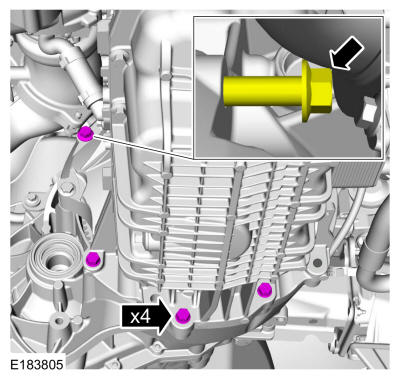

23. NOTE: Note the different lengths of the bolts.

    Remove the bellhousing bolts.

    Courtesy of FORD MOTOR COMPANY

24. Remove the cowl panel. Refer to: Cowl Panel .

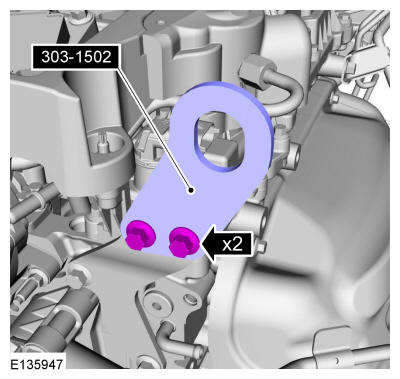

25. Install the special tool. Use Special Service Tool: 303-1502 Lifting Device Engine.

    Courtesy of FORD MOTOR COMPANY

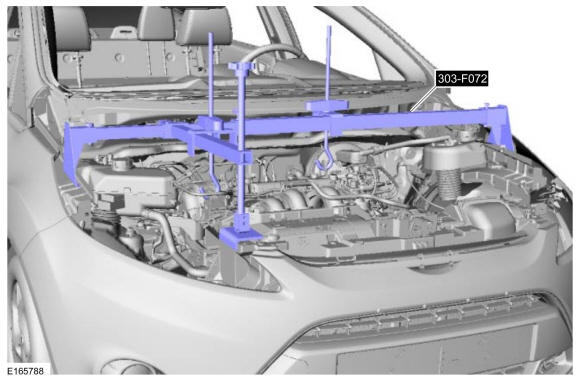

26. Install the special tool and support the engine and transmission. Use Special Service Tool: 303-F072 Support Bar, Engine.

    Courtesy of FORD MOTOR COMPANY

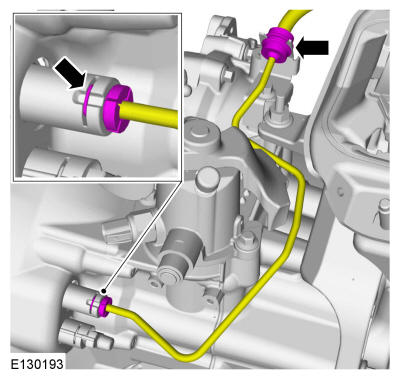

27. NOTE: Make sure that all openings are sealed.

    Disconnect the clutch hydraulic tube.

    Courtesy of FORD MOTOR COMPANY

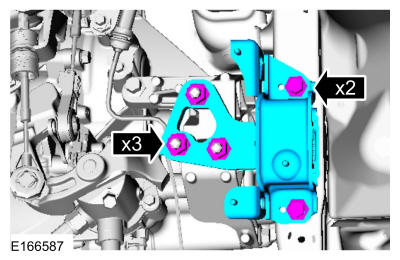

28. Remove the bolts, nuts and the transmission support insulator.

    Courtesy of FORD MOTOR COMPANY

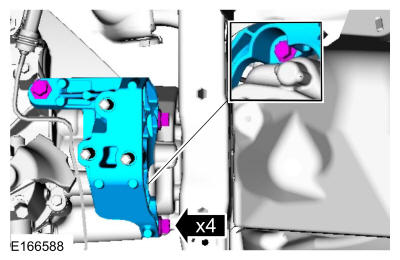

29. Remove the bolts and the transmission support insulator bracket.

    Courtesy of FORD MOTOR COMPANY

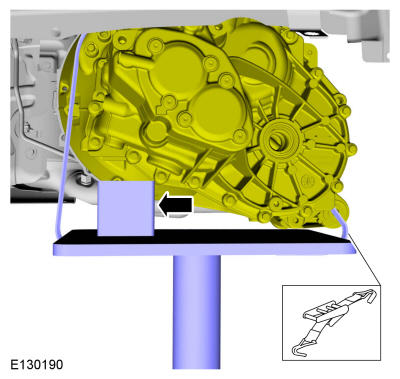

30. Install the following items:
    • Use the General Equipment: Transmission Jack
    • Use the General Equipment: Wooden Block
    • Use the General Equipment: Retaining Strap

    Courtesy of FORD MOTOR COMPANY

31. Remove the bellhousing bolts.

    Courtesy of FORD MOTOR COMPANY

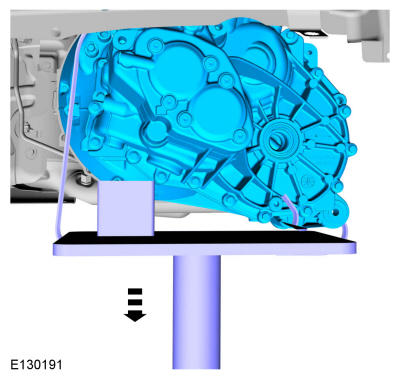

32. Remove the transmission.

Courtesy of FORD MOTOR COMPANY
