Halfshaft Seal RH: Installation
WARNING: This page is about a different variant/trim than selected.

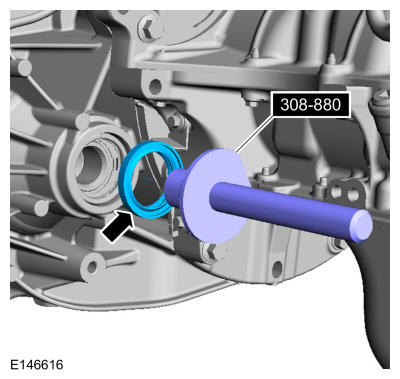

- Using the special tool install the halfshaft seal. Use Special Service Tool: 308-880 Installer, Driveshaft Seal.
-
NOTE: Do not fully install the shaft at this time.

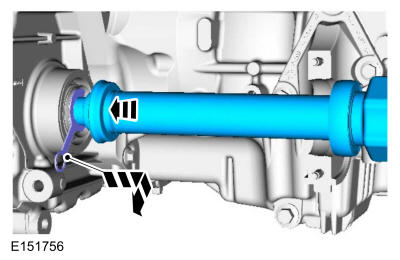

- Using part: AA5P-4N206-A.
- Remove the special tool before completely installing the halfshaft.
-

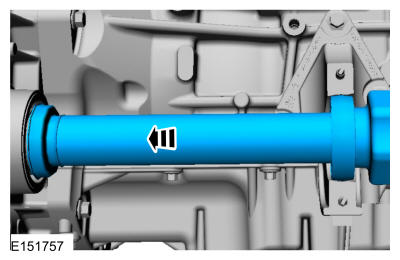

NOTE: Insert the intermediate shaft until the intermediate shaft bearing is centered in the concave groove of the intermediate shaft bearing bracket.
Install the RH halfshaft.

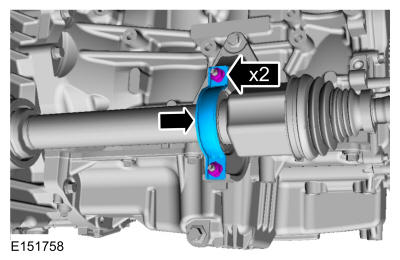

- Tighten: Install the new half shaft bearing strap and nuts.
Torque: Stage 1: Lower nut: 44 lb.in (5 Nm) Stage 2: Upper nut: 18 lb.ft (25 Nm) Stage 3: Lower nut: 18 lb.ft (25 Nm)

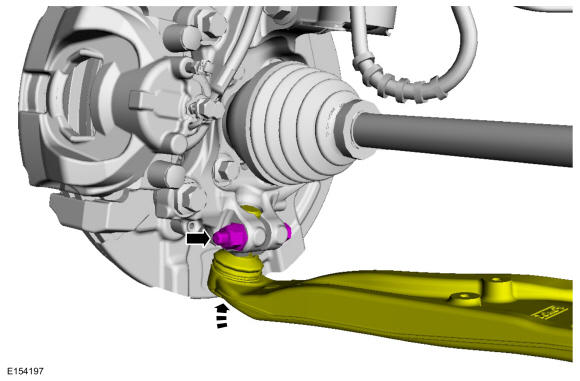

- Install the balljoint protector clip. Position the ball joint into the wheel knuckle and install the new balljoint bolt and nut.
Torque: 38 lb.ft (52 Nm)

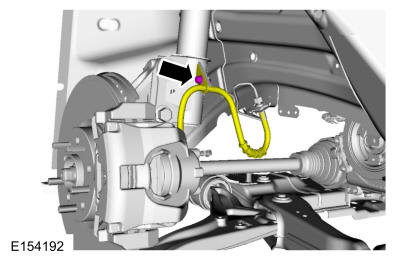

- Install the RH brake hose on the strut.
Torque: 19 lb.ft (26 Nm)
- Check the transmission fluid level. Refer to: Transmission Fluid Level Check .

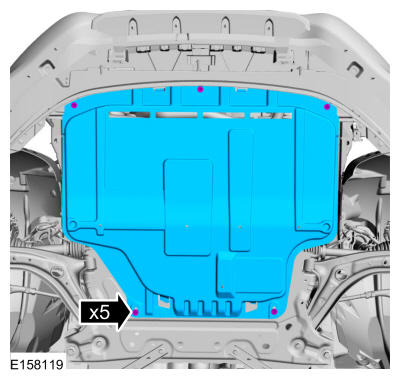

- If equipped. Install the underbody shield.
- Install the wheel and tire. Refer to: Wheel and Tire .
