Halfshaft Seal LH: Installation
WARNING: This page is about a different variant/trim than selected.

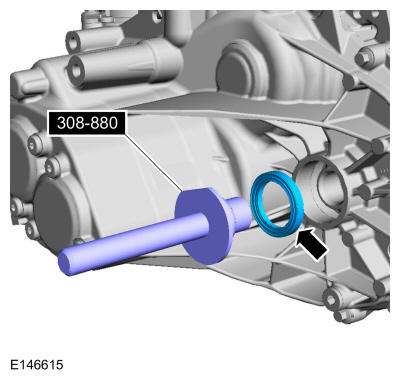

- Using the special tool install the halfshaft seal. Use Special Service Tool: 308-880 Installer, Driveshaft Seal.
-
NOTE: Make sure that a new component is installed.
Install a new halfshaft retaining circlip.
-
NOTE: Do not fully install shaft at this time.
- Using part: AA5P-4N206-A. Pull the LH halfshaft outward to make sure the circlip is locked.
- Remove the special tool before completely installing the halfshaft.
-
NOTE: Insert shaft until circlip is fully seated. When checking if circlip is seated do not pull on CV joints or damage can result.
Fully insert the halfshaft until the circlip is seated.

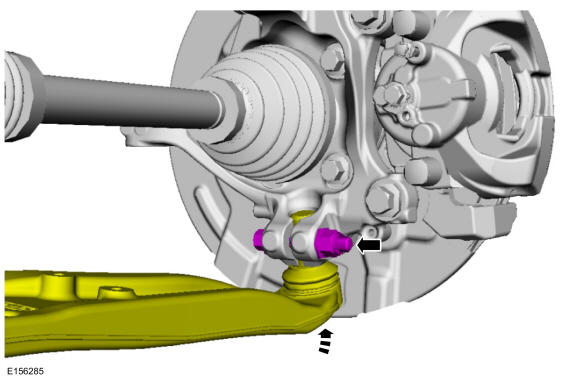

- Insert the lower ball joint into the wheel knuckle and install a new lower ball joint bolt and nut.
Torque: 38 lb.ft (52 Nm)
- Install the LH brake hose on the strut.
Torque: 19 lb.ft (26 Nm)
- Check the transmission fluid level. Refer to: Transmission Fluid Level Check .
- If equipped. Install the underbody shield and the retainers.
- Install the wheel and tire. Refer to: Wheel and Tire .
