Clutch Disc and Pressure Plate: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission. Refer to: Transmission .
  2. Loosen each bolt 2 turns at a time until all bolts are removed.

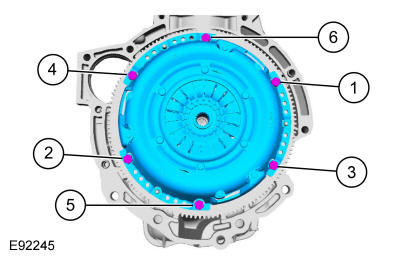

    Fig 1: Clutch Disc and Pressure Plate Loosening Sequence
    GFD301539Courtesy of FORD MOTOR COMPANY
