Clutch Disc and Pressure Plate: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Universal clutch alignment tool.

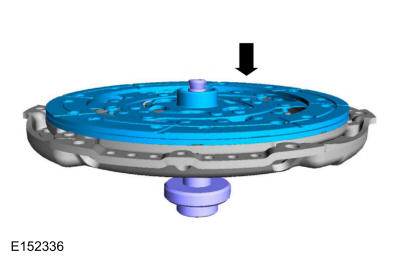

Install the clutch disc on the pressure plate and install a clutch alignment tool in the clutch disc.

Courtesy of FORD MOTOR COMPANY
Tighten each bolt 2 turns at a time. Install the clutch pressure plate and the clutch disc assembly, align the clutch disc and tighten the bolts.
Torque: 21 lb.ft (29 Nm)

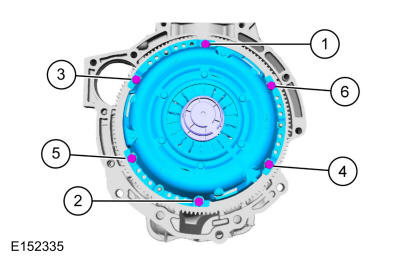

Fig 1: Clutch Disc and Pressure Plate Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install the transmission. Refer to: Transmission .
After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure using a diagnostic scan tool.
