Section 1 (Engine - 1.6L ECOBOOST (132KW/180PS) - Sigma): Removal: Engine

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

GFD300450Courtesy of FORD MOTOR COMPANY
300-OTC1585AE
Powertrain Lift
GFD300451Courtesy of FORD MOTOR COMPANY
300-OTC1819E
2, 200# Floor Crane, Fold Away
GFD300452Courtesy of FORD MOTOR COMPANY
303-1502
Lifting Device Engine
TKIT-2012A-FL
TKIT-2012A-ROW
GFD300453Courtesy of FORD MOTOR COMPANY
303-476 (T94P-9472-A)
Socket, Exhaust Gas Oxygen Sensor
TKIT-1994-LM/M
TKIT-1994-F
TKIT-1994-FLM/FM
Strap Wrench
Oil Drain Equipment
Cable Ties
Hose Clamp Remover/Installer
Wooden Block

Materials

Name Specification
Motorcraft® Penetrating and Lock Lubricant
XL-1
-
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Release the fuel system pressure. Refer to: Fuel System Pressure Release .
  3. Recover the refrigerant. Refer to: Air Conditioning (A/C) System Recovery, Evacuation And Charging .
  4. Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
  5. Remove the engine appearance cover.
    GFD300388Courtesy of FORD MOTOR COMPANY
  6. Disconnect the vacuum tube connector.
    GFD300454Courtesy of FORD MOTOR COMPANY
  7. Remove the air cleaner. Refer to: Air Cleaner .
    • Disconnect the quick release coupling from the air cleaner outlet pipe.

    • Loosen the clamp and remove the air cleaner outlet pipe.

    GFD300455Courtesy of FORD MOTOR COMPANY
  8. NOTE: Whenever turbocharger air intake system components are removed, always cover open ports to protect from debris. It is important that no foreign material enter the system. The turbocharger compressor vanes are susceptible to damage from even small particles. All components should be inspected and cleaned, if necessary, prior to installation or reassembly.

    1. Remove the engine appearance cover stud and the nut.
    2. Disconnect the crankcase ventilation tube, Loosen the clamp and remove the air cleaner outlet pipe.

    GFD300390Courtesy of FORD MOTOR COMPANY
  9. Remove the battery tray. Refer to: Battery Tray - 1.6L EcoBoost (132kW/180PS) - Sigma .

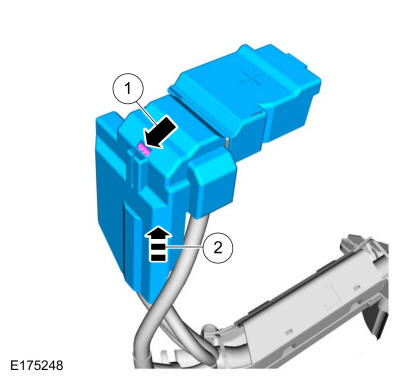

    1. Release the tab.
    2. Remove the battery terminal cover.
    GFD300456Courtesy of FORD MOTOR COMPANY
  10. Remove the nut and the wire.
    GFD300457Courtesy of FORD MOTOR COMPANY

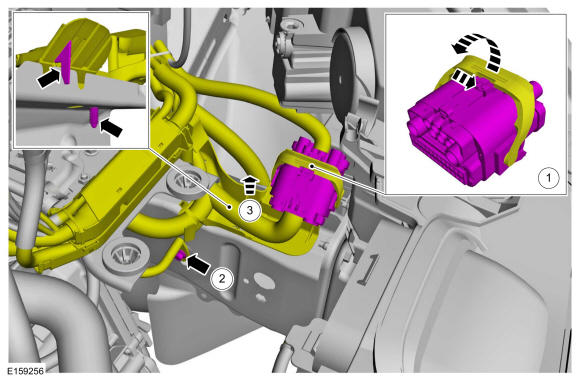

    1. Disconnect the electrical connector.
    2. Remove the bolt and the ground wire.
    3. Detach the wiring harness mounting retainers.
    GFD300458Courtesy of FORD MOTOR COMPANY

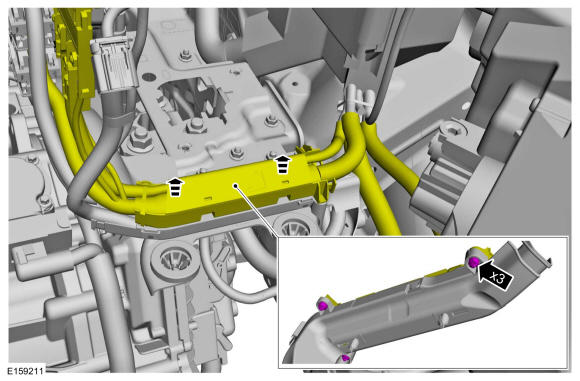

  11. Remove the wiring harness mounting retainers.
    GFD300459Courtesy of FORD MOTOR COMPANY

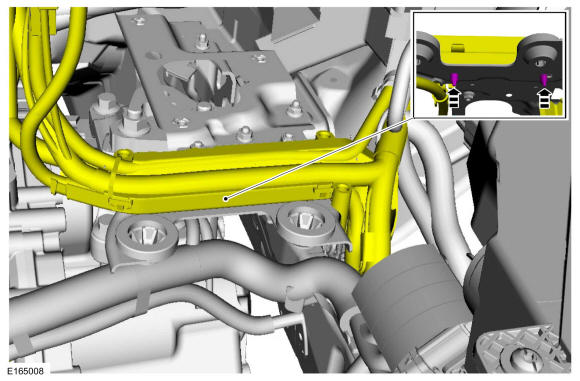

  12. Detach the wiring harness mounting retainers.
    GFD300460Courtesy of FORD MOTOR COMPANY
  13. Remove the nuts and the bracket.
    GFD300461Courtesy of FORD MOTOR COMPANY
  14. Disconnect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
    GFD300462Courtesy of FORD MOTOR COMPANY
  15. NOTE: Be prepared to collect escaping fluid.

    Early build vehicles, disconnect the fuel line connection. Refer to: Quick Release Coupling .

    GFD300463Courtesy of FORD MOTOR COMPANY
  16. NOTE: Be prepared to collect escaping fluid.

    Late build vehicles, disconnect the fuel line connection. Refer to: Spring Lock Couplings .

    GFD300464Courtesy of FORD MOTOR COMPANY
  17. Disconnect the quick release couplings, electrical connector and remove the fuel evaporative tube assembly. Refer to: Quick Release Coupling .
    GFD300465Courtesy of FORD MOTOR COMPANY
  18. Disconnect the coolant tube and detach the retainer. Use the General Equipment: Hose Clamp Remover/Installer
    GFD300466Courtesy of FORD MOTOR COMPANY
  19. NOTE: Note the position of the coolant hoses for installation.

    Disconnect the heater hoses. Use the General Equipment: Hose Clamp Remover/Installer

    GFD300467Courtesy of FORD MOTOR COMPANY

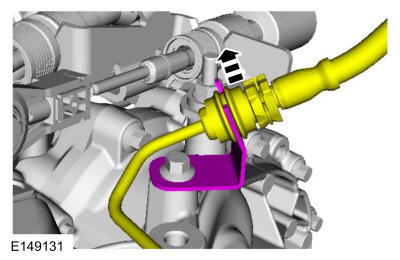

  20. Disconnect the tube from the retaining clamp.
    GFD300468Courtesy of FORD MOTOR COMPANY

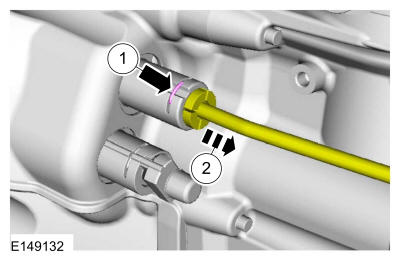

  21. Disconnect the clutch cylinder fluid supply tube.
    GFD300469Courtesy of FORD MOTOR COMPANY

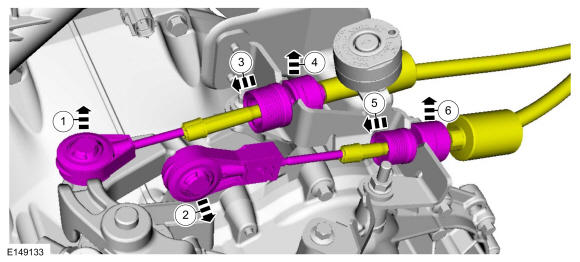

  22. Disconnect the selector lever cables.
    GFD300470Courtesy of FORD MOTOR COMPANY
  23. NOTE: Discard the O-ring seal and gasket seal.

    Remove the nut and disconnect the A/C line.

    GFD300471Courtesy of FORD MOTOR COMPANY
  24. NOTE: Discard the O-ring seal and gasket seal.

    Remove the nut and disconnect the A/C line.

    GFD300472Courtesy of FORD MOTOR COMPANY
  25. Remove the degas bottle. Refer to: Degas Bottle .
    • Disconnect the hose, loosen the hose clamp and remove the resonator assembly.

    • Loosen the hose clamp and position aside the throttle body hose.

    GFD300341Courtesy of FORD MOTOR COMPANY
    • Loosen the clamp and disconnect the electrical connector.

    • Remove the nut and the CAC outlet pipe.

    GFD300343Courtesy of FORD MOTOR COMPANY
  26. Remove the retainers and the shield.
    GFD300282Courtesy of FORD MOTOR COMPANY
    1. Loosen the clamps.
    2. Remove the nuts and the TC outlet tube.
    GFD300473Courtesy of FORD MOTOR COMPANY
  27. Remove the front subframe. Refer to: Front Subframe .

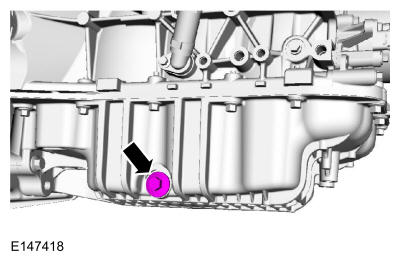

  28. Remove the drain plug and drain the engine oil, then install the drain plug. Use the General Equipment: Oil Drain Equipment

    Torque: 21 lb.ft (28 Nm)

    GFD300326Courtesy of FORD MOTOR COMPANY

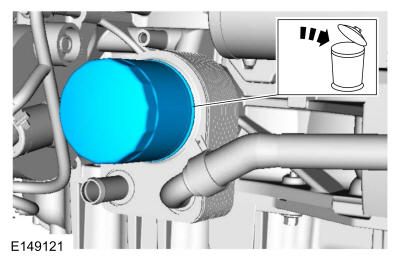

  29. Remove and discard the engine oil filter. Use the General Equipment: Strap Wrench
    GFD300474Courtesy of FORD MOTOR COMPANY
  30. Drain the transmission fluid. Refer to: Transmission Draining and Filling .

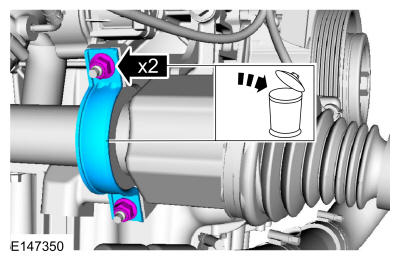

  31. Remove and discard the halfshaft bearing retaining strap and the nuts.
    GFD300475Courtesy of FORD MOTOR COMPANY

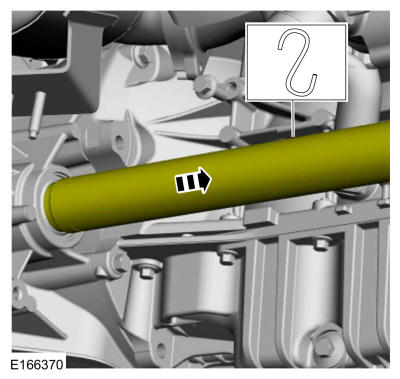

  32. Remove and support the halfshaft from the transmission.
    GFD300476Courtesy of FORD MOTOR COMPANY

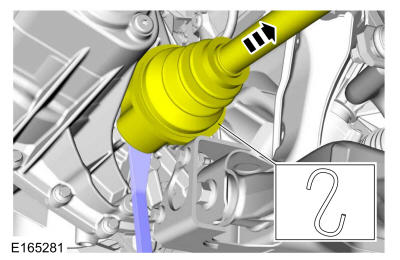

  33. Using a pry bar, Separate the halfshaft from the transmission and support.
    GFD300477Courtesy of FORD MOTOR COMPANY
  34. Remove the bolts and the bracket.
    GFD300478Courtesy of FORD MOTOR COMPANY
  35. Support the exhaust flexible pipe with a support wrap or suitable splint. Use the General Equipment: Cable Ties
    GFD300479Courtesy of FORD MOTOR COMPANY

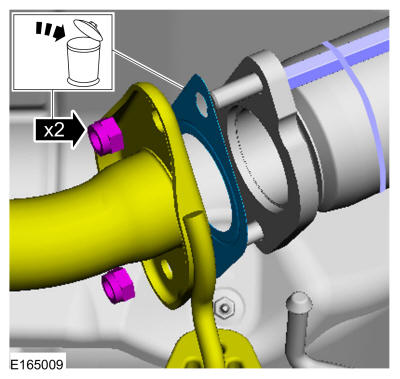

    • Remove the nuts.

    • Position back the exhaust system, remove and discard the gasket.

    GFD300480Courtesy of FORD MOTOR COMPANY
  36. Install Special Service Tool: 300-OTC1585AE Powertrain Lift. Use the General Equipment: Wooden Block
    GFD300481Courtesy of FORD MOTOR COMPANY
  37. Remove the nuts.
    GFD300482Courtesy of FORD MOTOR COMPANY
    1. Remove the nuts.
    2. Remove the bolts and the engine mount.
    GFD300329Courtesy of FORD MOTOR COMPANY

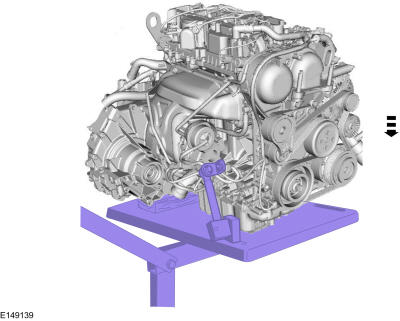

  38. Using the special tool, lower the engine from the vehicle.
    GFD300483Courtesy of FORD MOTOR COMPANY
  39. Disconnect the electrical connectors.
    GFD300484Courtesy of FORD MOTOR COMPANY
  40. Using the special tool, remove the HO2S. Detach the wiring harness retainer. Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.

    Material: Motorcraft® Penetrating and Lock Lubricant / XL-1

    GFD300485Courtesy of FORD MOTOR COMPANY
  41. Remove the bolts and the heat shield.
    GFD300486Courtesy of FORD MOTOR COMPANY

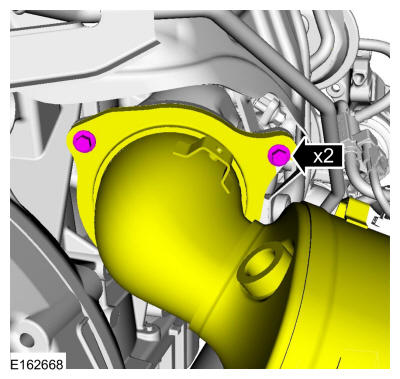

  42. Remove the catalytic converter bolts.
    GFD300487Courtesy of FORD MOTOR COMPANY
  43. Remove the nuts and catalytic converter mount bracket.
    GFD300488Courtesy of FORD MOTOR COMPANY

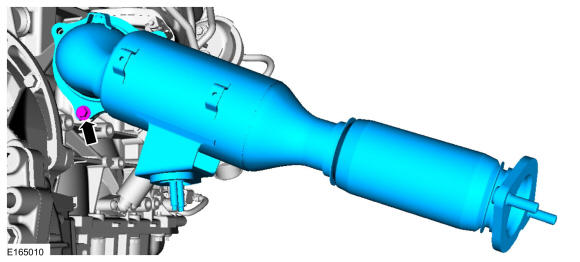

  44. NOTE: Support the catalytic converter while remove the bolt.

    Remove the bolt and the catalytic converter.

    GFD300489Courtesy of FORD MOTOR COMPANY

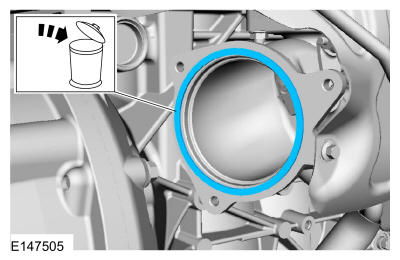

  45. Discard the catalytic convertor gasket.
    GFD300490Courtesy of FORD MOTOR COMPANY
  46. Remove the bolts and the bracket.
    GFD300491Courtesy of FORD MOTOR COMPANY

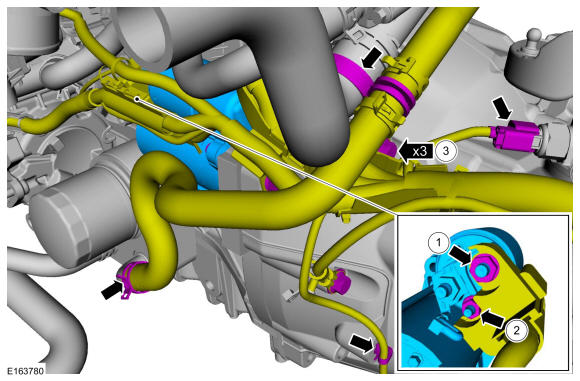

    1. Remove the nut and the starter motor solenoid terminal wiring electrical connection.
    2. Remove the nut and the starter motor solenoid terminal wiring electrical connection.
    3. Loosen the clamp and disconnect the coolant hose and position aside. Remove the bolts and the starter motor. Use the General Equipment: Hose Clamp Remover/Installer
    4. Detach the wiring harness retainer. Disconnect the electrical connector.
    GFD300492Courtesy of FORD MOTOR COMPANY
  47. Detach the retainer and remove the coolant hose.
    GFD300493Courtesy of FORD MOTOR COMPANY
  48. Install the engine lifting bracket and the bolts. Install Special Service Tool: 303-1502 Lifting Device Engine.
    GFD300494Courtesy of FORD MOTOR COMPANY
  49. Install the engine floor crane. Install Special Service Tool: 300-OTC1819E 2, 200# Floor Crane, Fold Away.
    GFD300495Courtesy of FORD MOTOR COMPANY
  50. Remove Special Service Tool: 300-OTC1585AE Powertrain Lift.
    GFD300481Courtesy of FORD MOTOR COMPANY
  51. Remove the transmission bolts.
    GFD300496Courtesy of FORD MOTOR COMPANY
  52. Remove the transmission bolts.
    GFD300497Courtesy of FORD MOTOR COMPANY
  53. Remove the transmission-to-engine bolt and remove the transmission from the engine.
GFD300498Courtesy of FORD MOTOR COMPANY
