Transmission Draining and Filling

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Materials

Name	Specification
Motorcraft® Dual Clutch Transmission Fluid XT-11-QDC	WSS-M2C200-D2

Draining

With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .
If equipped. Remove the retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY
Remove the drain plug and drain the transmission fluid.

Courtesy of FORD MOTOR COMPANY
Install the drain plug.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

Filling

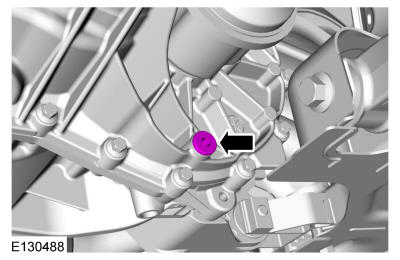

Remove the fill plug.

Courtesy of FORD MOTOR COMPANY

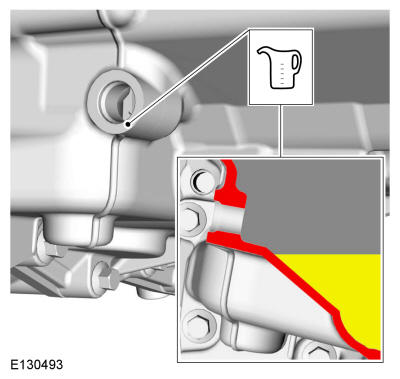

Fill the transmission.
Material: Motorcraft® Dual Clutch Transmission Fluid / XT-11-QDC (WSS-M2C200-D2)

Courtesy of FORD MOTOR COMPANY
NOTE: Remove enough fluid to be 1 in (20 mm) below fill hole.

Remove enough fluid to be 1 in (20 mm) below fill hole.

Courtesy of FORD MOTOR COMPANY
Install the fill plug.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
If equipped. Install the underbody shield.

Courtesy of FORD MOTOR COMPANY
