Instrument Panel Cluster (IPC): Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: If installing a new IPC, it is necessary to upload the module configuration information to the scan tool prior to removing the IPC. This information must be downloaded into the new IPC after installation.
- If installing a new IPC, upload the configuration information from the IPC module into the scan tool by following the scan tool on screen instructions.
- Record the odometer value from the original IPC. If the odometer value cannot be obtained from the IPC (display failure), perform the diagnostic routine. If the value cannot be obtained after the diagnostic routine, the customer should supply the approximate odometer value.

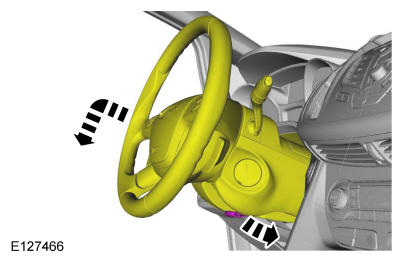

Position the steering column in the full forward/down position.

Courtesy of FORD MOTOR COMPANY

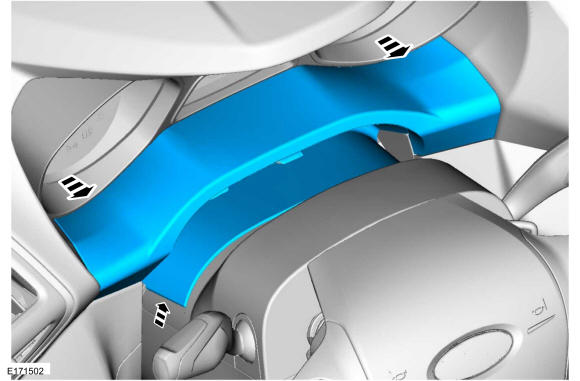

Remove the upper steering column shroud.

Courtesy of FORD MOTOR COMPANY

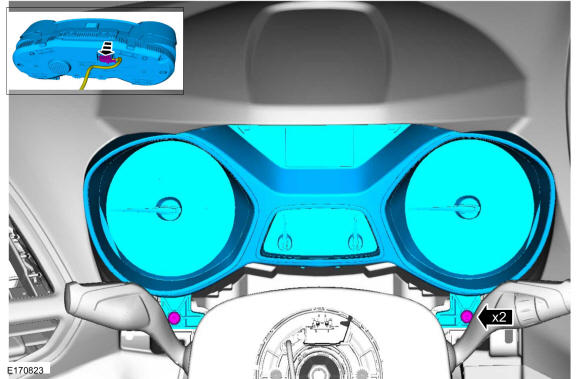

Remove the screws and the IPC. Disconnect the electrical connector.
Torque: 13 lb.in (1.5 Nm)

Courtesy of FORD MOTOR COMPANY
