Removal And Installation: Radiator: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the cooling module. Refer to: Cooling Module .

2.

Remove the lower support.

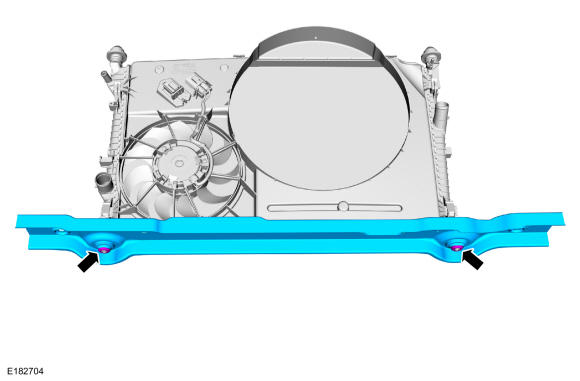

GFD144776

Courtesy of FORD MOTOR COMPANY

3.

Remove the cooling fan and shroud assembly.

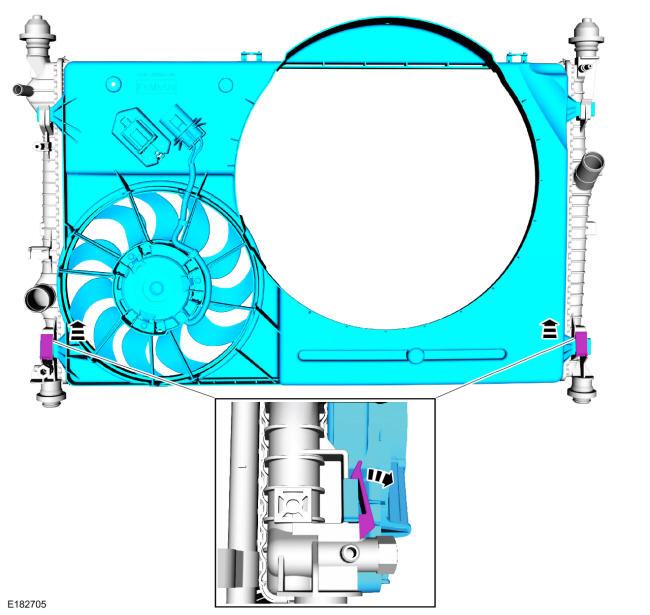

GFD144777

Courtesy of FORD MOTOR COMPANY

4.

Remove the A/C condenser.

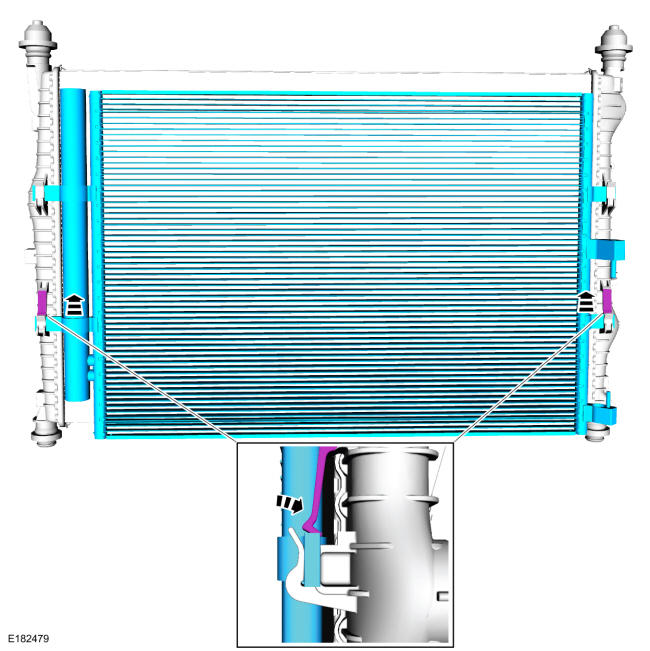

GFD144712

Courtesy of FORD MOTOR COMPANY
