Cooling Fan: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
NOTE:
The component has a right-hand thread.

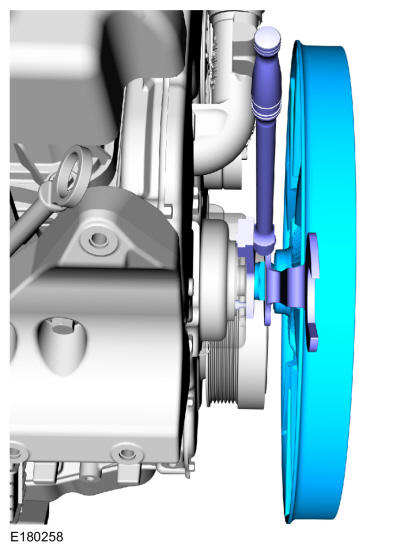

Using the special tool and a commercially available fan clutch wrench remove the cooling fan.
Use Special Service Tool: 303-1561 Holding Wrench, Pulley.
Torque: 77 lb.ft (105 Nm)
