Coolant Pump: Installation
WARNING: This page is about a different variant/trim than selected.
- 1.
Install the coolant pump and tighten the bolts and stud bolt in the sequence shown in illustration.Torque: 17 lb.ft (23 Nm)
- 2.

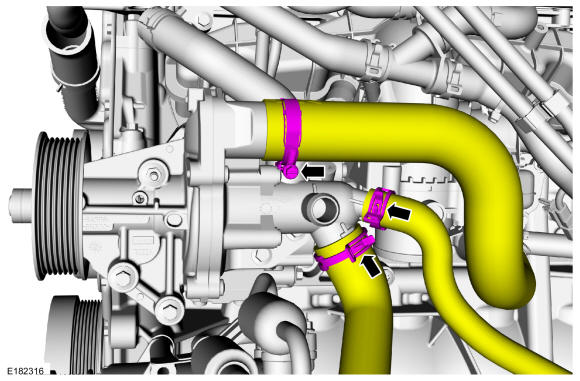

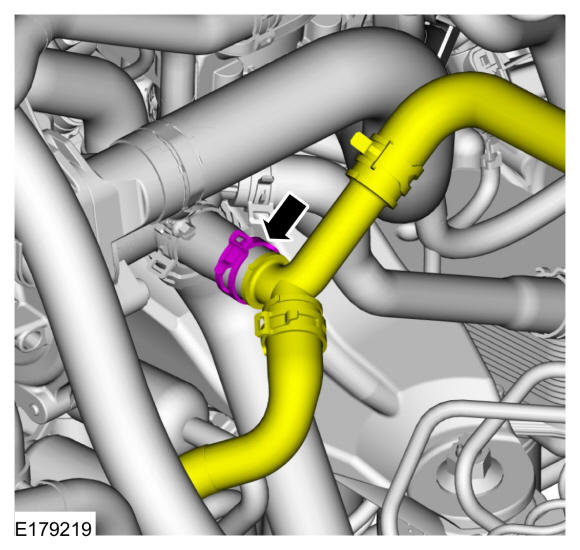

Connect the coolant hoses.Use the General Equipment: Hose Clamp Remover/Installer
Torque: 44 lb.in (5 Nm)
- 4.
Install the thermostat housing. Refer to: Thermostat Housing .
