Fuel Metering Valve: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Do not work on the fuel system until the pressure has been released and the engine has cooled. Fuel in the high-pressure fuel system is hot and under very high pressure. High-pressure fuel may cause cuts and contact with hot fuel may cause burns. Failure to follow these instructions may result in serious personal injury.
- 1.
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- 2.
Disconnect the battery. Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .
- 3.
Remove the throttle body. Refer to: Throttle Body .
- 4.
Disconnect the fuel injection pump temperature sensor and the fuel injection pump fuel metering valve electrical connectors.
- 5.

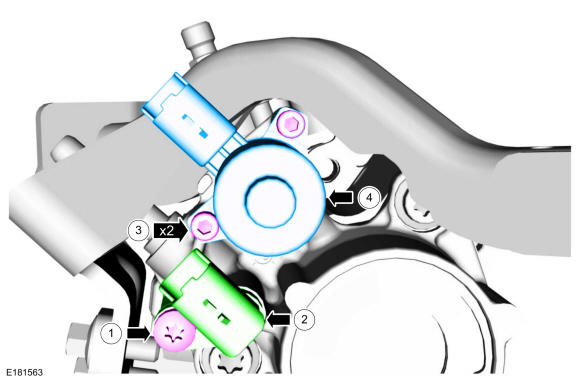

- 1.
Remove the fuel injection pump temperature sensor mounting bolt.
- 2.
Remove the fuel injection pump temperature sensor.
- 3.
Remove the fuel injection pump fuel metering valve bolts.
- 4.
Remove the fuel injection pump fuel metering valve.
