Fuel Tank: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation steps.
- 1.
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- 2.
Drain the fuel tank. Refer to: Fuel Tank Draining .
- 3.

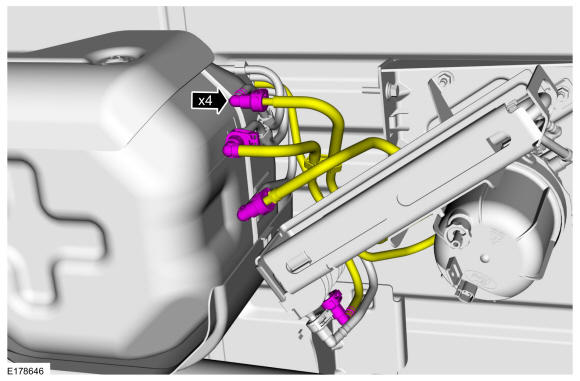

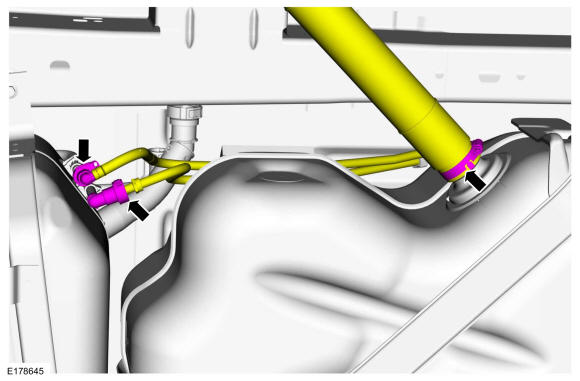

- Loosen the fuel filler neck hose clamp and remove the hose from the fuel tank.
- Disconnect the quick release couplings. Refer to: Quick Release Coupling .
- 4.
Disconnect the quick release couplings. Refer to: Quick Release Coupling .
- 5.
- Support the fuel tank with a powertrain jack and remove the fuel tank strap bolts. Use the General Equipment: Powertrain Jack
- Lower the fuel tank.
Torque: 35 lb.ft (48 Nm)
