Fuel Tank Draining
WARNING: This page is about a different variant/trim than selected.
Special Tool(s) / General Equipment
| 292-00004 Fuel Tanker 100 GPM | |
|---|---|
Draining
- 1.
Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .
- 2.NOTE: The supplemental refueling adapter is located in the glove box.

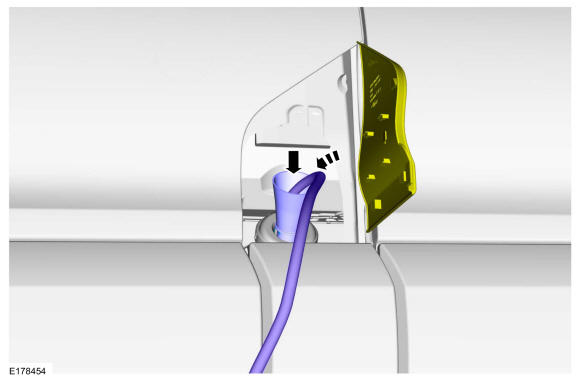

Install the supplemental refueling adapter and a length of semi-rigid fuel drain tube into the Easy Fuel ™ (capless) fuel tank filler pipe. Push the drain tube into the fuel tank and drain as much fuel as possible into the Fuel Storage Tanker, lowering the fuel level below the fuel tank inlet spout.
Use Special Service Tool: 292-00004 Fuel Tanker 100 GPM.
