Fuel Temperature Sensor: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

1.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

2.

Disconnect the battery. Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .

3.

Remove the throttle body. Refer to: Throttle Body .

4.

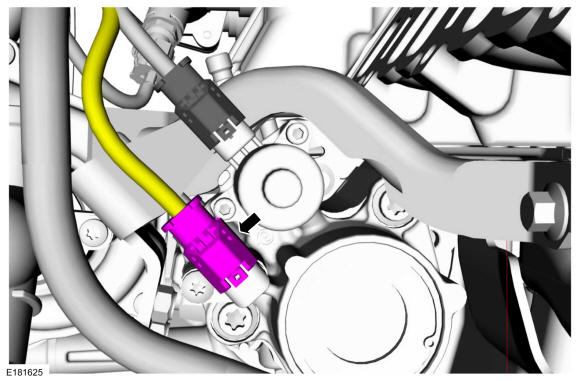

Disconnect the fuel injection pump temperature sensor.

GFD145246

Courtesy of FORD MOTOR COMPANY

5.

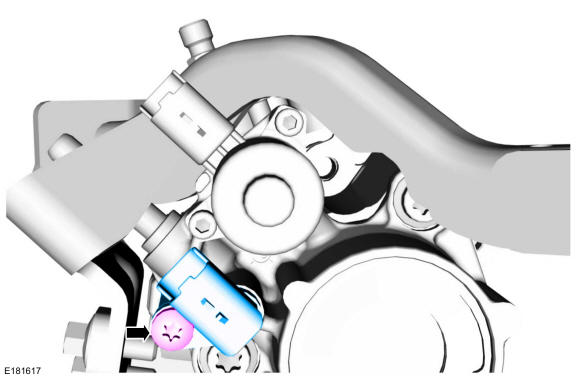

- Remove the fuel injection pump temperature sensor mounting bolt.
  Torque: 71 lb.in (8 Nm)
- Remove the fuel injection pump temperature sensor.

GFD145247

Courtesy of FORD MOTOR COMPANY
