Starter Motor: Removal
WARNING: This page is about a different variant/trim than selected.
- 1.
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- 2.
Disconnect the battery. Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .
- 4.
- 1.

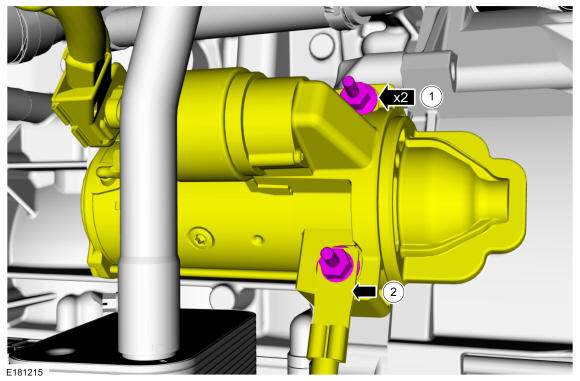

Remove the studbolts.
- 2.
Remove the ground cable from the lower stater motor mounting studbolt. Position the starter motor aside.
- 1.
- 6.

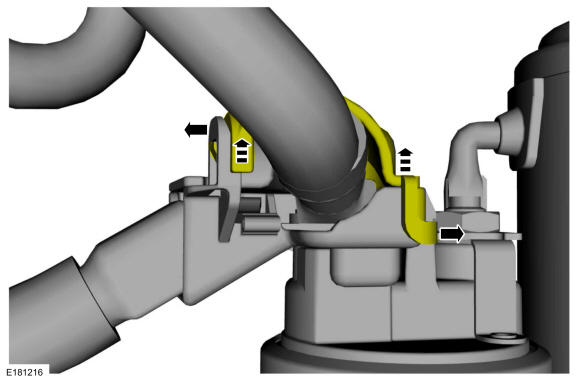

Remove the large and small starter motor solenoid wire connector nuts and remove the starter motor.
- 7.
Inspect the starter motor drive gear and flywheel ring gear. Refer to: Starter Motor Drive Gear and Flywheel Ring Gear Inspection .
