Fuel System Pressure Check

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	310-D009 (D95L-7211-A) Fuel Pressure Test Kit

Check

• 1.

  Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .

• 2.


  NOTE: This pressure check is for the low pressure side of the fuel system.

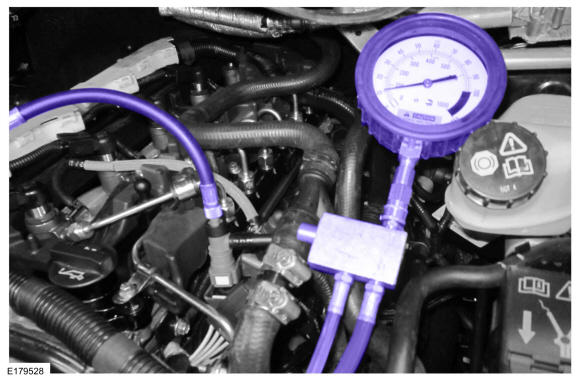

  Install the special tool on the fuel return line schrader valve outlet.

  Use Special Service Tool: 310-D009 (D95L-7211-A) Fuel Pressure Test Kit.

Courtesy of FORD MOTOR COMPANY

• 3.

  Connect the battery ground cable. Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .

• 4.


  NOTE: Carry out a Key ON Engine OFF (KOEO) visual inspection for fuel leaks prior to completing the fuel system pressure test.
  NOTE: After completion of the fuel system pressure test, open the drain valve on the Fuel Pressure Test Kit and release any residual fuel into a suitable container prior to removing the tool.

  Start the engine and test the fuel system pressure to make sure it is within the specified range. Refer to: Specifications .
