Starter Motor: Removal

NOTE: Removal steps in this procedure may contain installation details.

Disconnect the battery. Refer to: Battery Disconnect and Connect .
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

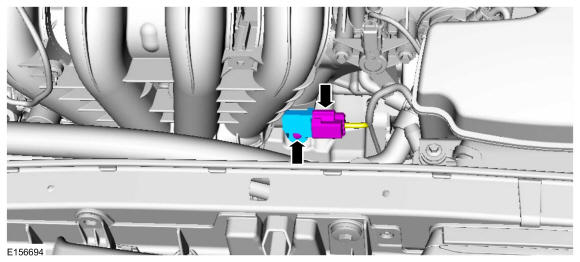

Disconnect the MAP sensor electrical connector. Remove the bolt and then remove the MAP sensor.
Torque: 27 lb.in (3 Nm)

Courtesy of FORD MOTOR COMPANY

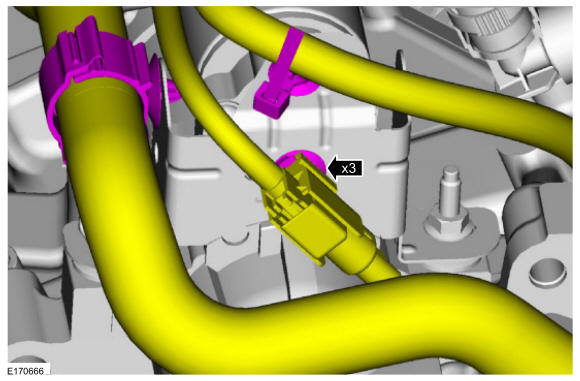

Detach the wire harness retainers and the hose retainer.

Courtesy of FORD MOTOR COMPANY
If equipped, Remove the retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY

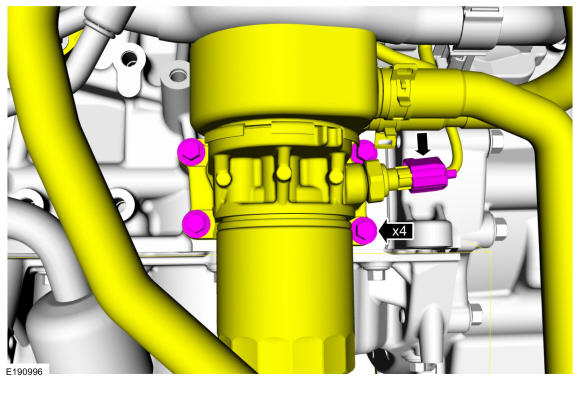

Disconnect the oil pressure switch electrical connector. Remove the bolts, then position the oil filter adapter and oil cooler assembly aside.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

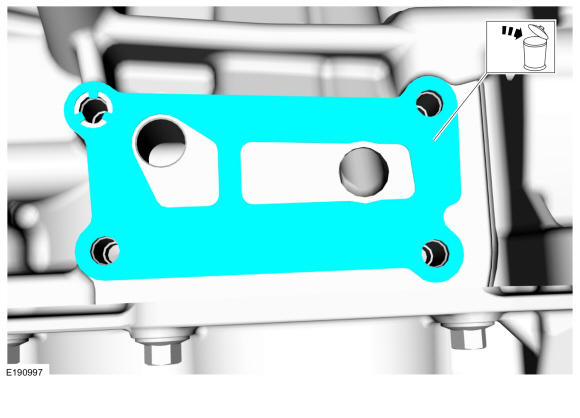

Remove and discard the oil filter adapter gasket.

Courtesy of FORD MOTOR COMPANY

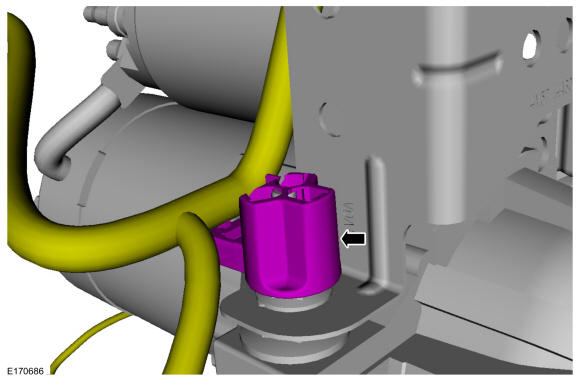

Detach the wire harness retainer.

Courtesy of FORD MOTOR COMPANY

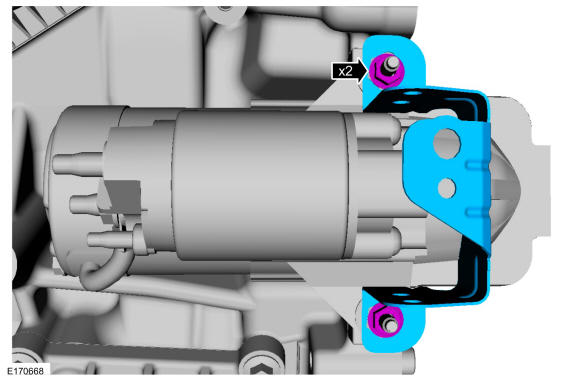

Remove the starter motor bracket retaining nuts and the remove the starter motor bracket.
Torque: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY

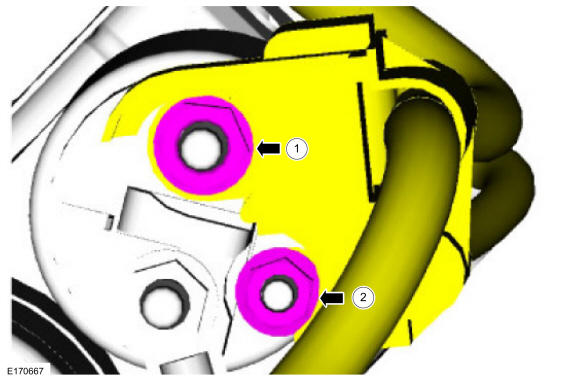

1. Remove the starter motor solenoid battery cable nut and then disconnect the starter motor solenoid battery cable.
  Torque: 106 lb.in (12 Nm)
2. Remove the starter motor solenoid control wire nut and then disconnect the starter motor solenoid control wire.
  Torque: 53 lb.in (6 Nm)
Courtesy of FORD MOTOR COMPANY

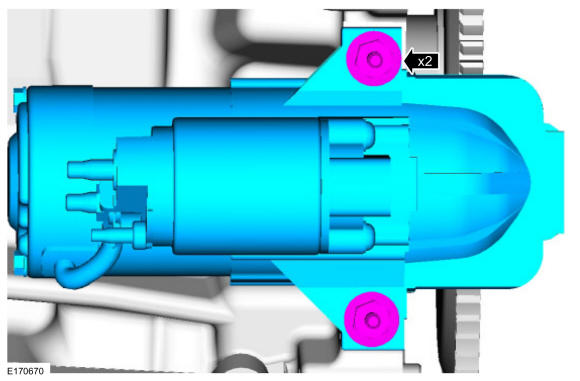

Remove the starter motor studbolts and then remove the starter motor.
Torque: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY
Inspect the starter motor drive gear and the flexplate or flywheel ring gear. Refer to: Starter Motor Drive Gear and Flywheel Ring Gear Inspection .
