Removal And Installation: Radiator: Installation

  1. To install, reverse the removal procedure.

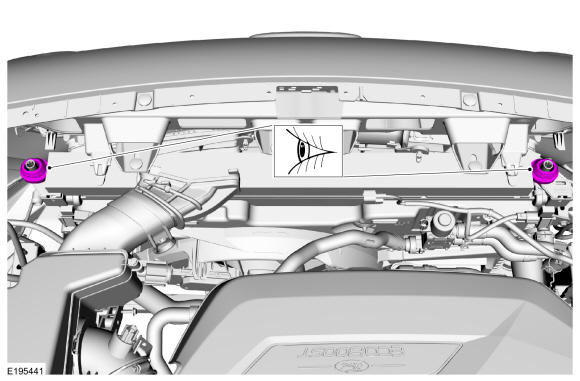

  2. Inspect the upper radiator insulators, secure if necessary.
GFD214813Courtesy of FORD MOTOR COMPANY
