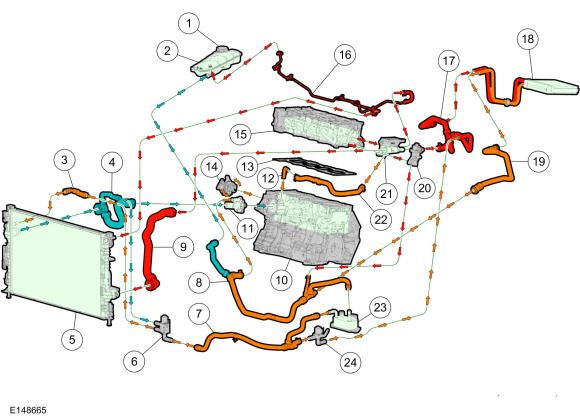

| 1 |
Pressure relief cap |
| 2 |
Degas bottle |
| 3 |
Transmission fluid cooler coolant control valve inlet hose |
| 4 |
Upper radiator hose |
| 5 |
Radiator |
| 6 |
Transmission fluid cooler coolant control valve |
| 7 |
Transmission fluid cooler coolant control valve outlet hose assembly |
| 8 |
Degas bottle-to-thermostat housing hose assembly |
| 9 |
Lower radiator hose |
| 10 |
Engine block |
| 11 |
Thermostat housing |
| 12 |
Coolant bypass hose connector |
| 13 |
Cylinder head gasket |
| 14 |
Coolant pump |
| 15 |
Cylinder head |
| 16 |
Degas bottle-to-radiator hose assembly |
| 17 |
Heater core inlet hose assembly |
| 18 |
Heater core |
| 19 |
Heater core outlet hose |
| 20 |
EGR valve |
| 21 |
Coolant outlet connector adapter assembly |
| 22 |
Coolant bypass hose |
| 23 |
Transmission fluid cooler - warmer |
| 24 |
Transmission fluid heater coolant control valve |
