Gearshift Cables - 1.0L EcoBoost (90kW/120PS), 5-Speed Manual Transmission - B5A/5-Speed Manual Transmission - B5/IB5: Installation

WARNING: This page is about a different variant/trim than selected.

1.

NOTE: Gearshift cables must not be kinked or bent.

Install gearshift cable mounting bracket.

GFD140891

Courtesy of FORD MOTOR COMPANY

2.

Install the nuts.
Torque: 80 lb.in (9 Nm)

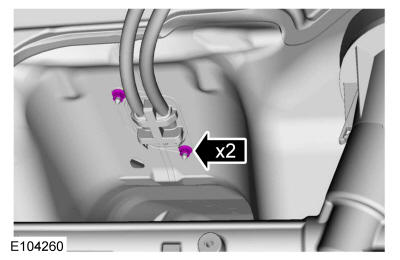

GFD140888

Courtesy of FORD MOTOR COMPANY

3.
- 1.

  Install the exhaust heat shield and nuts.
- 2.

  Install the exhaust isolator.
- 3.

  Install the center support brace and nuts.
  Torque: 18 lb.ft (24 Nm)

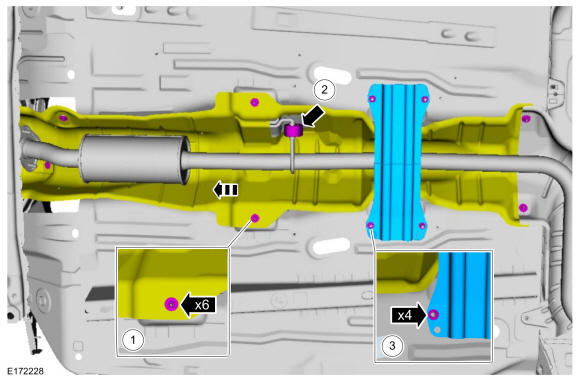

GFD140892

Courtesy of FORD MOTOR COMPANY

4.

Install the new muffler gasket.

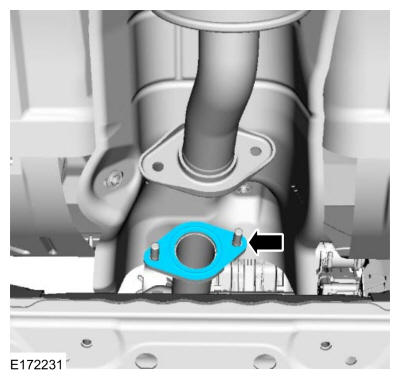

GFD140893

Courtesy of FORD MOTOR COMPANY

5.

Install the muffler mounting nuts.
Torque: 35 lb.ft (48 Nm)

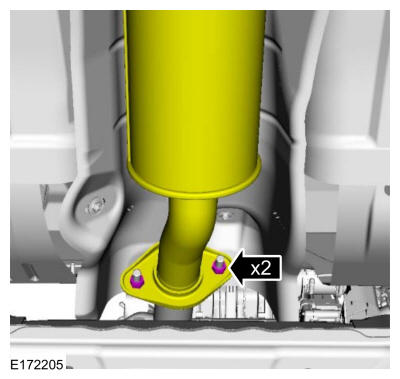

GFD140894

Courtesy of FORD MOTOR COMPANY

6.
- Slide the lock sleeve and install the gearshift cables in the bracket.
- Connect the gearshift cable ends to the ball studs of the transmission selector mechanism.

GFD139197

Courtesy of FORD MOTOR COMPANY

7.

Install the gearshift housing access cover.

GFD139196

Courtesy of FORD MOTOR COMPANY

8.

Attach the gearshift cables to the clip.

9.
- Install the gearshift cables in the gearshift lever.
- Connect the gearshift cable ends to the gearshift lever ball studs.

GFD140889

Courtesy of FORD MOTOR COMPANY

10.

Install the floor console. Refer to: Floor Console .

11.

Connect the gearshift cables to the bracket.

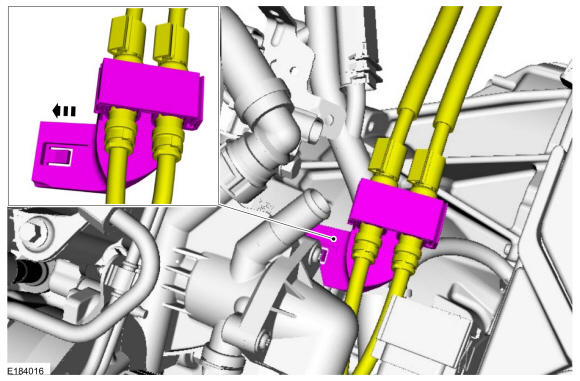

GFD140895

Courtesy of FORD MOTOR COMPANY

12.

Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

13.

Adjust the gearshift cables. Refer to: Gearshift Cable Adjustment - 5-Speed Manual Transmission - B5/IB5 .
