Input Shaft Seal: Removal
WARNING: This page is about a different variant/trim than selected.
- 1.
Remove the transmission. Refer to: Transmission .
- 3.NOTE: Take extra care not to damage the bearing.

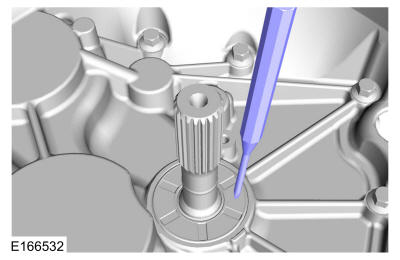

Using a punch, poke a hole in the input shaft seal. Use the General Equipment: Center Punch
- 4.
- 1.

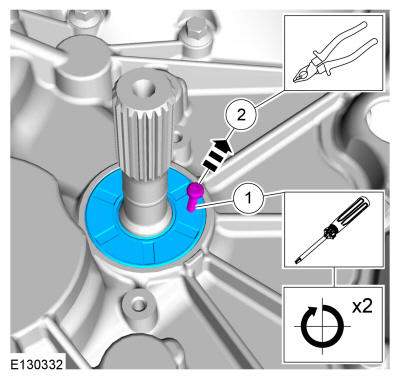

2.5 x 15 mm self-tapping screwUsing a 2.5 x 15 mm self-tapping screw, thread a 2.5 x 15 mm self tapping screw into the input shaft seal 2 complete turns.
- 2.
Using a pair of pliers, pull on the screw and remove the seal.
- 1.
