Section 11 (Manual Transmission - 6-Speed Manual Transmission - B6): Removal: Transmission

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	303-1502Lifting Device EngineTKIT-2012A-FLTKIT-2012A-ROW
Courtesy of FORD MOTOR COMPANY	303-F072Support Bar, Engine
Transmission Jack
Retaining Strap
Wooden Block

• 1.

  If equipped. Remove the engine appearance cover.

Courtesy of FORD MOTOR COMPANY

• 2.

  Remove the battery tray. Refer to: Battery Tray - 1.0L EcoBoost (90kW/120PS)/1.6L EcoBoost (132kW/180PS) - Sigma .

• 3.

  Detatch and position aside the wiring harness.

Courtesy of FORD MOTOR COMPANY

• 4.

  Remove the nuts and the battery tray bracket.

Courtesy of FORD MOTOR COMPANY

• 5.

  Disconnect the shift cable from the transmission and position aside.
  • Slide the locking tab and disconnect the gearshift cables from the transmission.

Courtesy of FORD MOTOR COMPANY

• 6.

  Remove the bolts and the gearshift cable bracket.

Courtesy of FORD MOTOR COMPANY

• 7.


  NOTE: Note the different lengths of the bolts.

  Remove the bellhousing bolts.

Courtesy of FORD MOTOR COMPANY

• 8.

  Remove the bolts, ground cable mounting and disconnect the wiring retainer.

Courtesy of FORD MOTOR COMPANY

• 9.

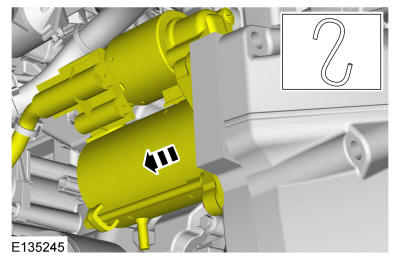

  Detatch the starter motor and position aside.

Courtesy of FORD MOTOR COMPANY

• 10.

  Disconnect the electrical connector and position aside the CAC outlet tube assembly.

  • 1.

    Remove the nut.

  • 2.

    Loosen the clamp.
  • Disconnect the electrical connector and position aside the hose.

Courtesy of FORD MOTOR COMPANY

• 11.

  Remove the CAC inlet tube assembly.

  • 1.

    Loosen the clamps.

  • 2.

    Remove the nuts.

Courtesy of FORD MOTOR COMPANY

• 12.

  Support the exhaust flexible pipe with a support wrap or suitable splint.

Courtesy of FORD MOTOR COMPANY

• 13.

  Unhook the rear exhaust hanger isolator.

Courtesy of FORD MOTOR COMPANY

• 14.

  Remove and discard the muffler and tailpipe flange nuts and gasket.

Courtesy of FORD MOTOR COMPANY

• 15.

  Remove the catalytic converter support bracket.

Courtesy of FORD MOTOR COMPANY

• 16.


  NOTE: Note the different lengths of the bolts.

  Remove the bolts and the roll restrictor RH.

Courtesy of FORD MOTOR COMPANY

• 17.

  Remove the front subframe. Refer to: Front Subframe .

• 18.

  Remove the bolt and position aside the RH brake hose.

Courtesy of FORD MOTOR COMPANY

• 19.

  Remove and discard the halfshaft retaining strap and the halfshaft retaining strap nuts.

Courtesy of FORD MOTOR COMPANY

• 20.

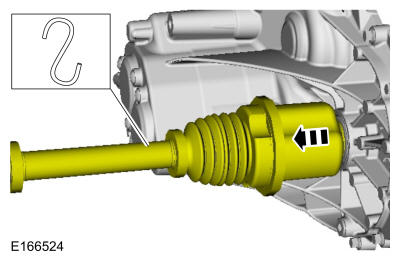

  Remove and support the RH halfshaft from the transmission.

Courtesy of FORD MOTOR COMPANY

• 21.

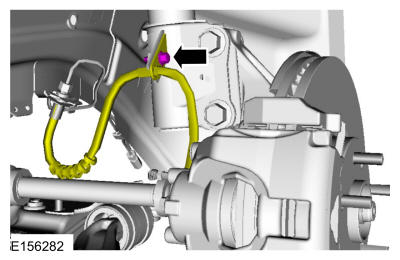

  Remove the bolt and position aside the LH brake hose.

Courtesy of FORD MOTOR COMPANY

• 22.

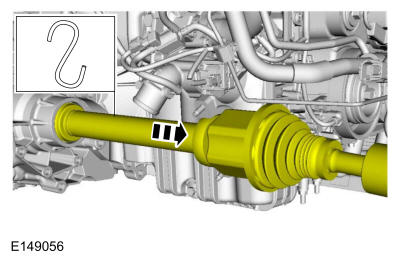

  Remove and support the LH halfshaft from the transmission.

Courtesy of FORD MOTOR COMPANY

• 23.


  NOTE: Note the different lengths of the bolts.

  Remove the bellhousing bolts.

Courtesy of FORD MOTOR COMPANY

• 24.

  Remove the cowl panel. Refer to: Cowl Panel .

• 25.

  Install the special tool. Use Special Service Tool: 303-1502 Lifting Device Engine.

Courtesy of FORD MOTOR COMPANY

• 26.

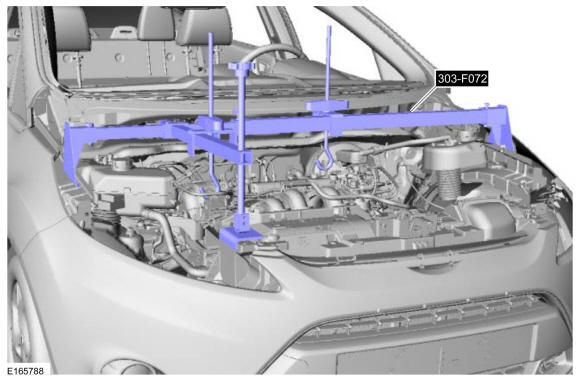

  Install the special tool and support the engine and transmission. Use Special Service Tool: 303-F072 Support Bar, Engine.

Courtesy of FORD MOTOR COMPANY

• 27.


  NOTE: Make sure that all openings are sealed.

  Disconnect the clutch hydraulic tube.

Courtesy of FORD MOTOR COMPANY

• 28.

  Remove the bolts, nuts and the transmission support insulator.

Courtesy of FORD MOTOR COMPANY

• 29.

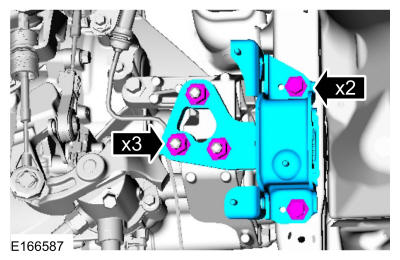

  Remove the bolts and the transmission support insulator bracket.

Courtesy of FORD MOTOR COMPANY

• 30.

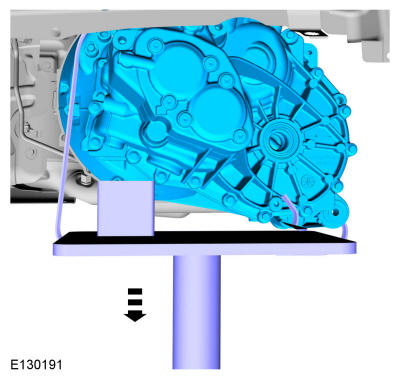

  Install the following items:
  • Use the General Equipment: Transmission Jack
  • Use the General Equipment: Wooden Block
  • Use the General Equipment: Retaining Strap

Courtesy of FORD MOTOR COMPANY

• 31.

  Remove the bellhousing bolts.

Courtesy of FORD MOTOR COMPANY

• 32.

  Remove the transmission.

Courtesy of FORD MOTOR COMPANY
