Removal And Installation: Flywheel: Installation

NOTE: Use a universal pulley holder (such as an OTC 4754, or equivalent).

Install the flywheel and new bolts.
- Using a universal pulley holder, tighten the new crankshaft pulley bolts in sequence shown.
  Torque

  :Stage 1: 37 lb.ft (50 Nm

  )Stage 2: 59 lb.ft (80 Nm)

  Stage 3: 83 lb.ft (112 Nm)

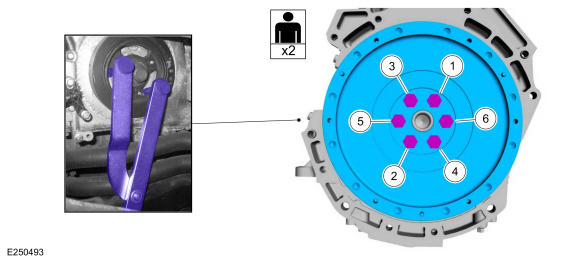

Fig 1: Flywheel Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install the damper and the bolts.
- Using a universal pulley holder, tighten 2 turns at a time in sequence shown.
  Torque: 21 lb.ft (29 Nm)

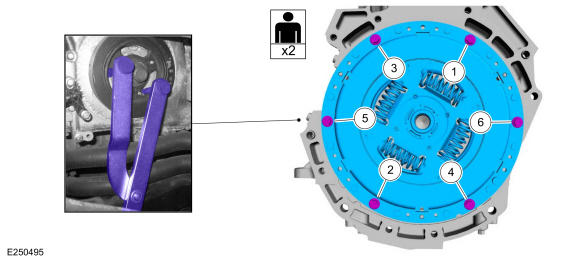

Fig 2: Flywheel Damper Tightening Sequence
Courtesy of FORD MOTOR COMPANY
- Install the engine.
- Refer to: Engine - Hybrid Electric Vehicle (HEV) .
- Refer to: Engine - Plug-In Hybrid Electric Vehicle (PHEV) .
