Engine - Plug-In Hybrid Electric Vehicle (PHEV)
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Base Part Number: 6L084
Special Tool(s) / General Equipment
| 300-OTC1585AEPowertrain Lift | |
|---|---|
| 300-OTC1819E2, 200# Floor Crane, Fold Away | |
| Adjustable Mounting Arm |
Materials
| Name | Specification |
|---|---|
| Motorcraft ® SAE 0W-20 Synthetic Blend Motor OilXO-0W20-QSP | WSS-M2C947-A |
-
WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Health And Safety Precautions .
-

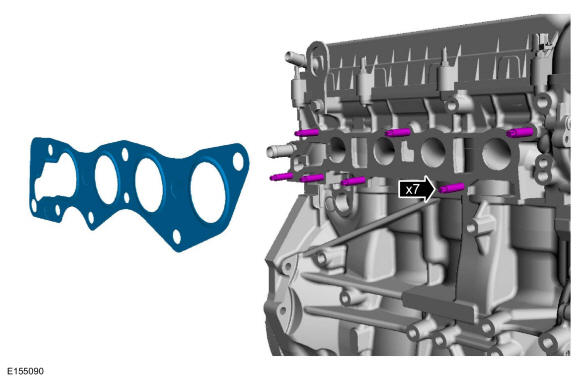

NOTE: The transaxle-to-engine bolts differ in length. Note the location of the bolts for correct installation.

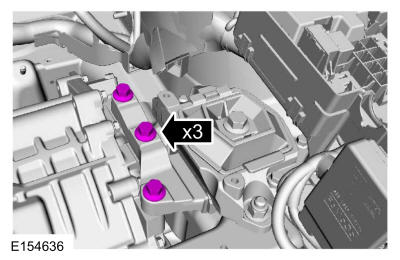

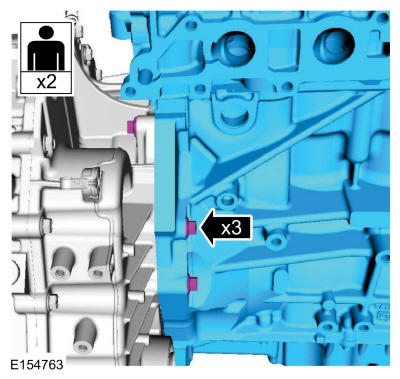

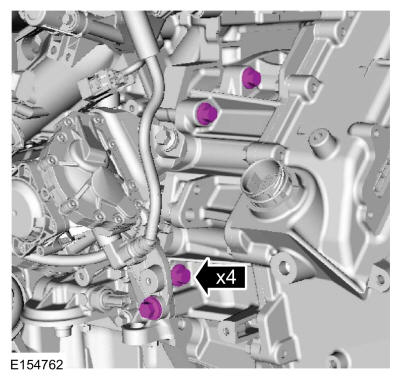

Torque: 35 lb.ft (48 Nm)

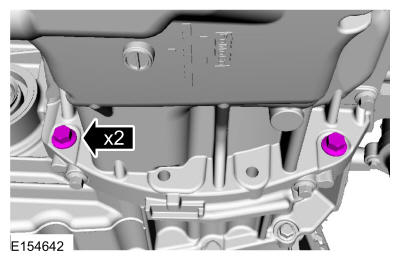

- Torque: 35 lb.ft (48 Nm)
- Torque: 35 lb.ft (48 Nm)

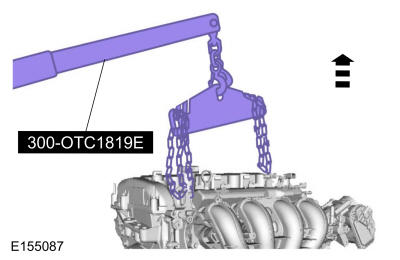

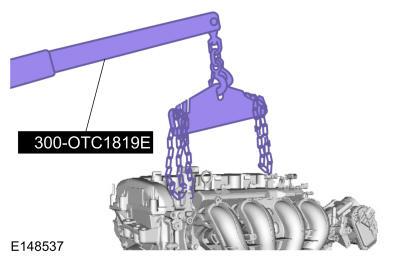

- Use Special Service Tool: 300-OTC1819E 2, 200# Floor Crane, Fold Away.

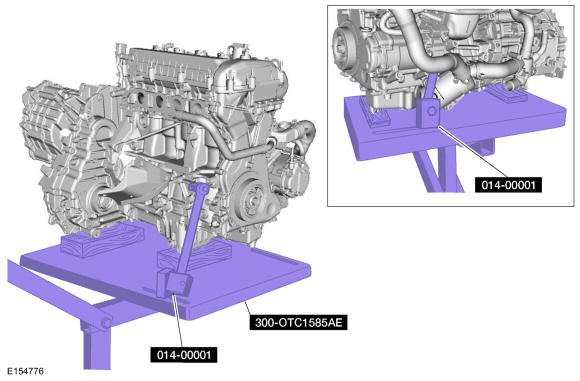

- Install Special Service Tool: 300-OTC1585AE Powertrain Lift. Use the General Equipment: Adjustable Mounting Arm
- Remove Special Service Tool: 300-OTC1819E 2, 200# Floor Crane, Fold Away.

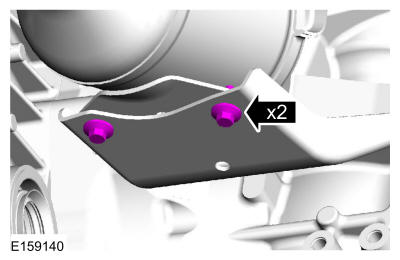

- Torque: 97 lb.in (11 Nm)
- Torque: 89 lb.in (10 Nm)
- Torque: 150 lb.in (17 Nm)

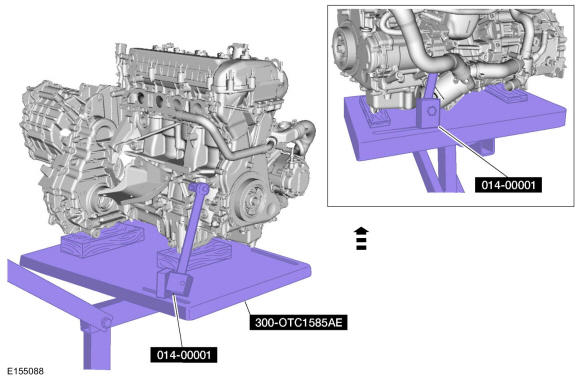

- Use Special Service Tool: 300-OTC1585AE Powertrain Lift. Use the General Equipment: Adjustable Mounting Arm
-

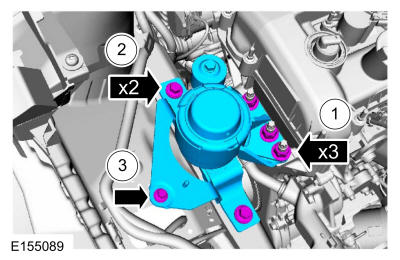

- Torque: 85 lb.ft (115 Nm)
- Torque: 66 lb.ft (90 Nm)
- Torque: 18 lb.ft (25 Nm)
- Torque: 98 lb.ft (133 Nm)
- Remove Special Service Tool: 300-OTC1585AE Powertrain Lift. Use the General Equipment: Adjustable Mounting Arm

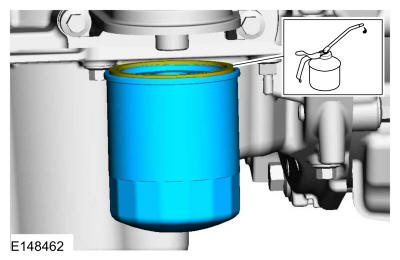

- Material: Motorcraft ® SAE 0W-20 Synthetic Blend Motor Oil / XO-0W20-QSP (WSS-M2C947-A)

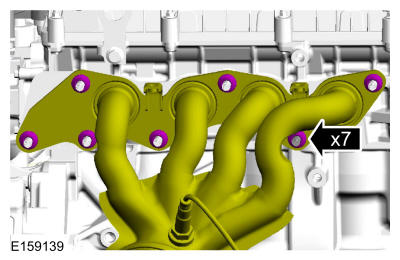

Torque: 177 lb.in (20 Nm)
- Torque: 35 lb.ft (48 Nm)
- Refer to: Roll Restrictor RH .

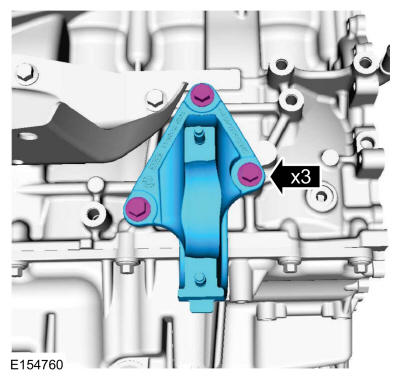

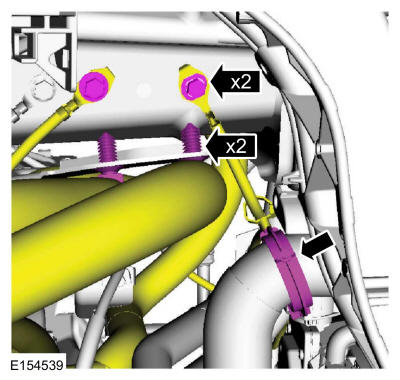

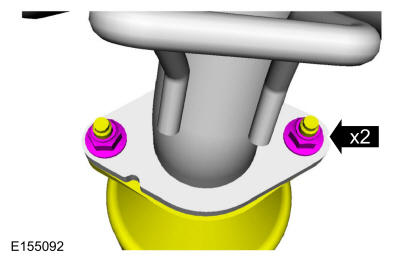

- Torque: 41 lb.ft (55 Nm)

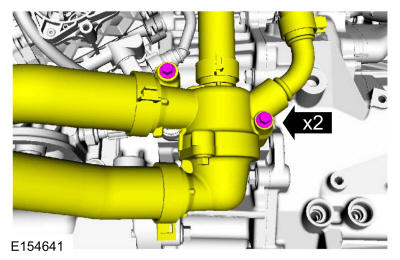

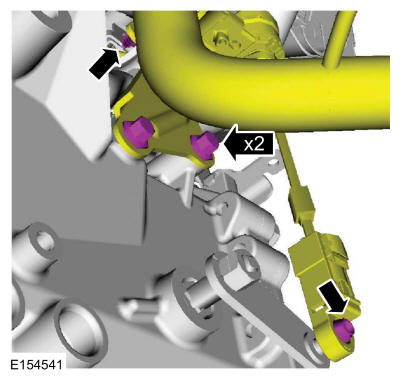

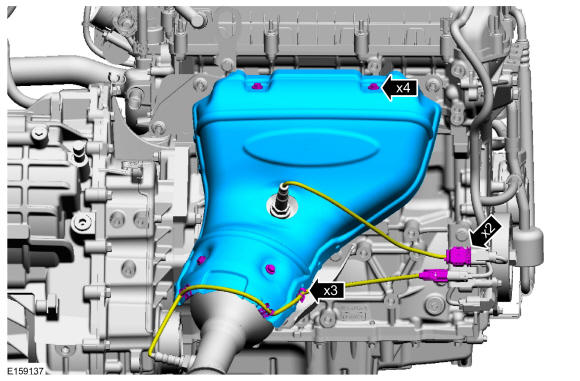

- Torque: 89 lb.in (10 Nm)

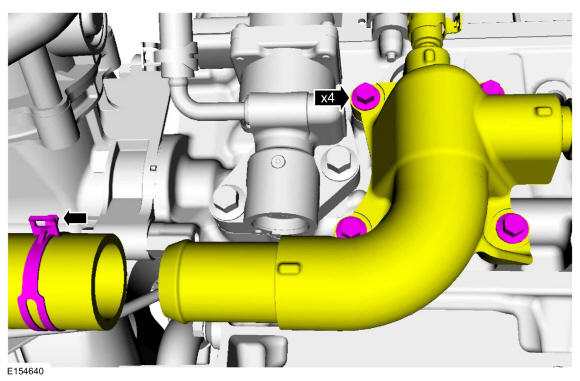

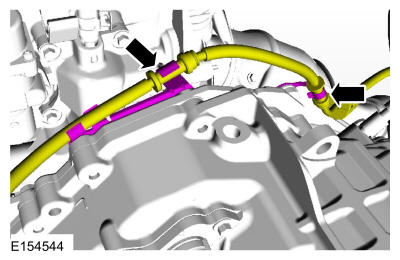

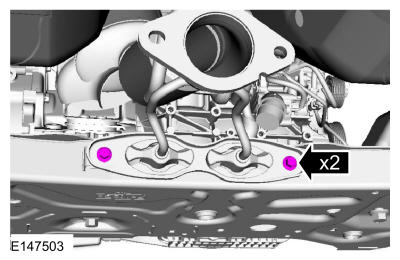

- Torque: 18 lb.ft (25 Nm)

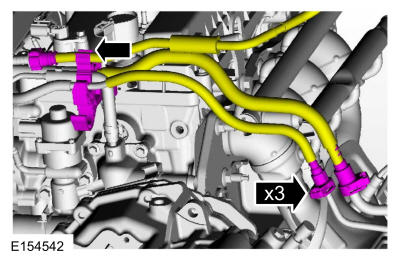

- Torque: 18 lb.ft (25 Nm)

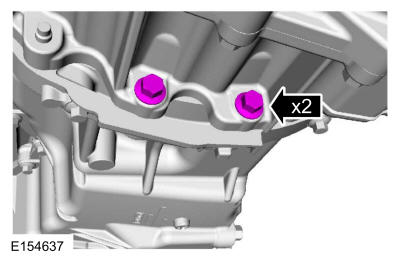

- Torque: 35 lb.ft (48 Nm)
- Torque: 35 lb.ft (48 Nm)
- Torque: 18 lb.ft (25 Nm)

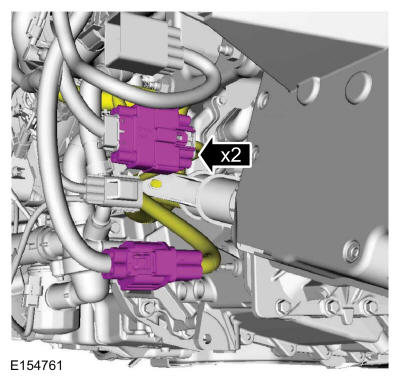

- Install the following items:
-

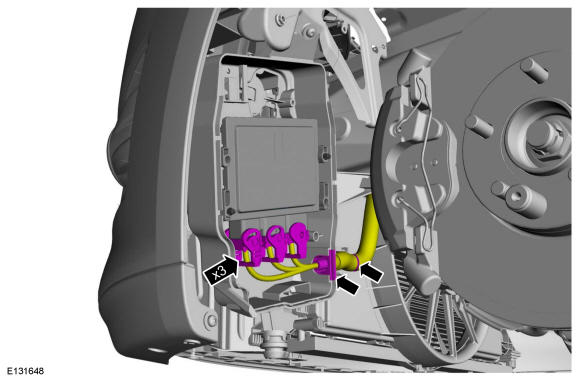

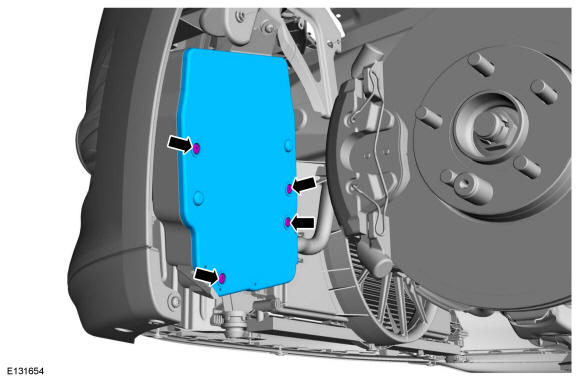

NOTE: LH side only.
Refer to: Fender Splash Shield .
- Refer to: Front Halfshaft RH .
- Refer to: Front Halfshaft LH .
- Refer to: Cooling Module .
-

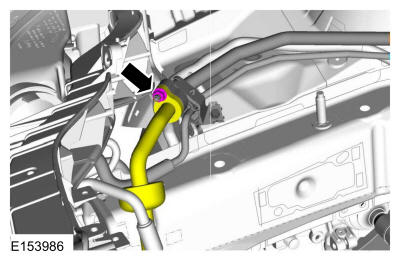

- Torque: 133 lb.in (15 Nm)

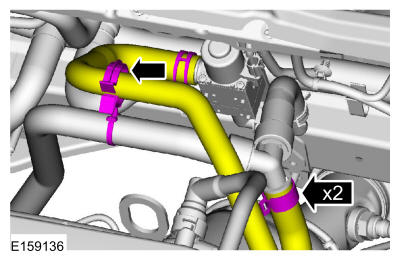

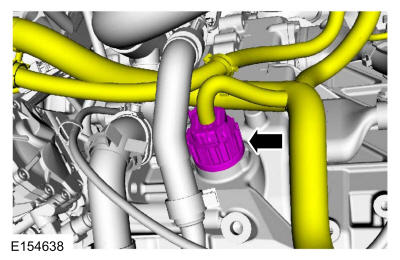

- Refer to: Quick Release Coupling
.

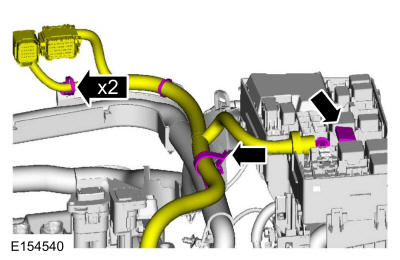

- Torque: 17 lb.ft (23 Nm)

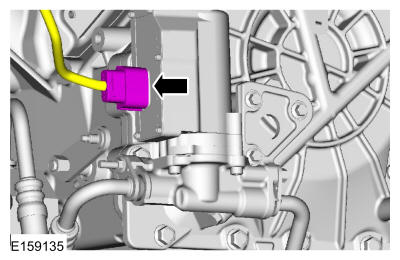

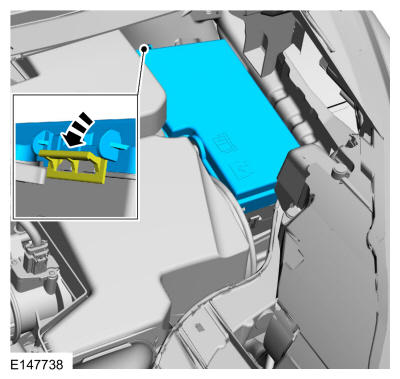

- Install the following items:
- Refer to: Transmission Control Module (TCM) .
- Refer to: Air Cleaner Outlet Pipe .
- Refer to: Air Cleaner Intake Pipe .
- Refer to: Air Cleaner .
- Refer to: Degas Bottle .
- Fill the engine with clean engine oil.
Material: Motorcraft ® SAE 0W-20 Synthetic Blend Motor Oil / XO-0W20-QSP (WSS-M2C947-A)
-
- Refer to: Battery Disconnect And Connect - Plug-In Hybrid Electric Vehicle (PHEV) .
- Refer to: High Voltage Battery Disconnect And Connect - Plug-In Hybrid Electric Vehicle (PHEV) .
- Refer to: Cooling System Draining, Filling And Bleeding .
- Refer to: Cooling System Draining, Filling And Bleeding .
- Refer to: Air Conditioning (A/C) System Recovery, Evacuation And Charging .
