Cooling Fan Motor and Shroud: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- 2.
If equipped, remove the retainers and the front lip seal.
 Courtesy of FORD MOTOR COMPANY
|
- 3.

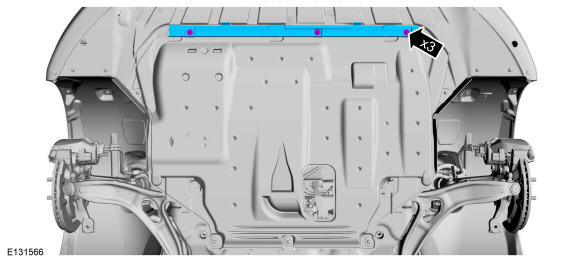

If equipped, remove the retainers and the underbody shield.
 Courtesy of FORD MOTOR COMPANY
|
- 4.

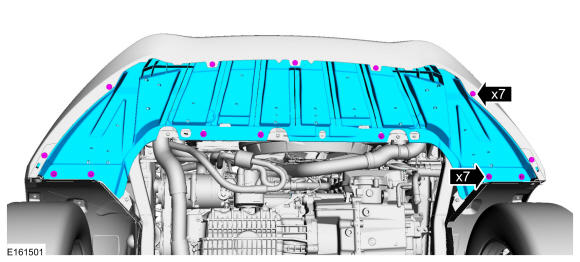

Remove the retainers and the underbody shield.
 Courtesy of FORD MOTOR COMPANY
|
- 6.

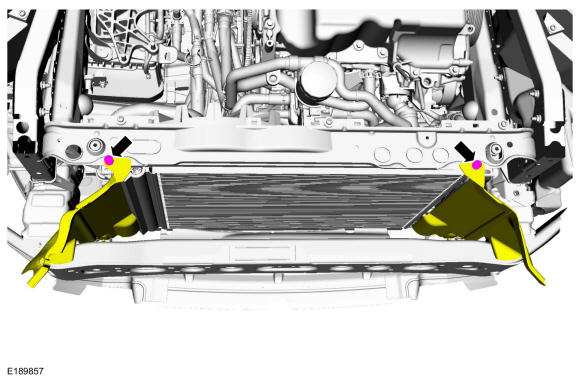

Remove the radiator side air deflectors pin-type retainers.
 Courtesy of FORD MOTOR COMPANY
|
- 7.

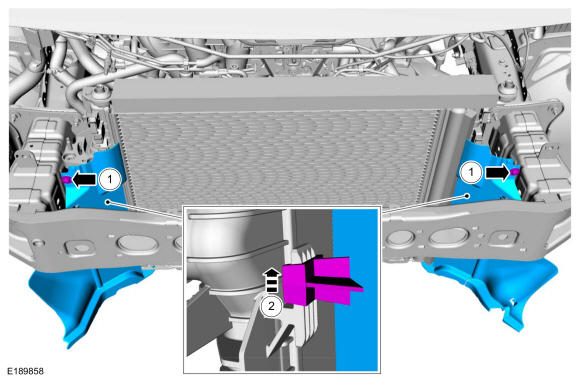

Remove the radiator side air deflectors.
- 1.
Remove the radiator side air deflector retainers.
- 2.
Release the tab and remove the radiator side air deflectors.
 Courtesy of FORD MOTOR COMPANY
|
- 8.

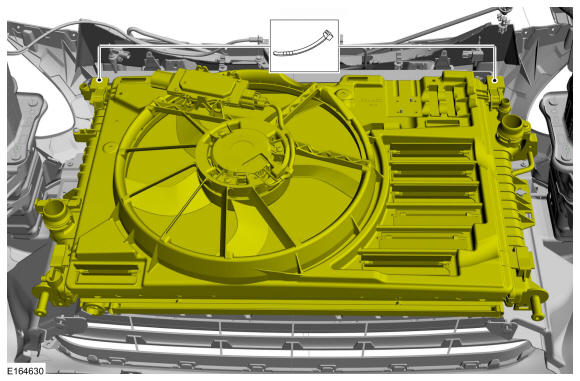

Loosely install the cable ties at both sides. Use the General Equipment: Cable Ties
 Courtesy of FORD MOTOR COMPANY
|
- 9.

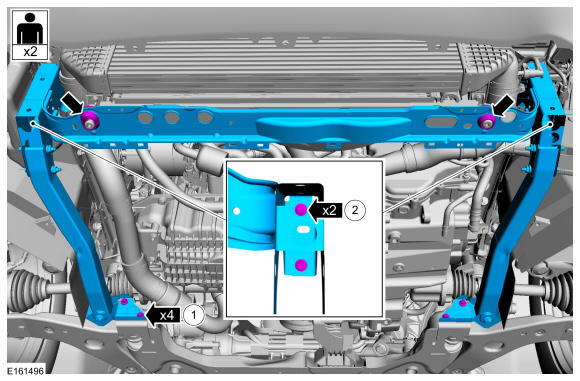

Remove the front lower crossmember.
- 1.
Remove the grommets and the front lower crossmember bracket bolts.Torque: 18 lb.ft (25 Nm)
- 2.
Remove the bolts and the front lower crossmember.Torque: 18 lb.ft (25 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- 10.

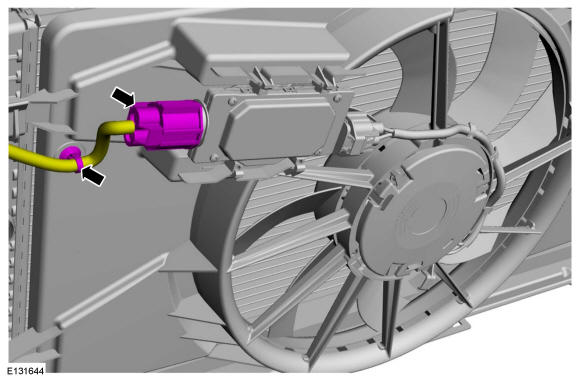

Disconnect the cooling fan motor electrical connector and detach the wiring retainer.
 Courtesy of FORD MOTOR COMPANY
|
- 11.

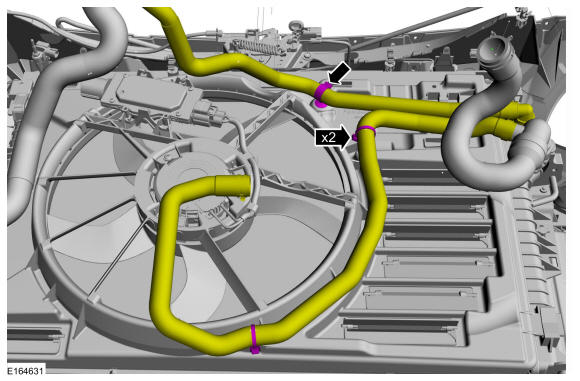

Detach the retainers and position aside the hoses.
 Courtesy of FORD MOTOR COMPANY
|
- 12.

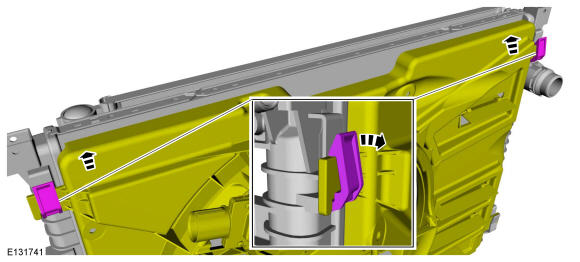

Release the cooling fan motor and shroud upper tabs.
 Courtesy of FORD MOTOR COMPANY
|
- 13.

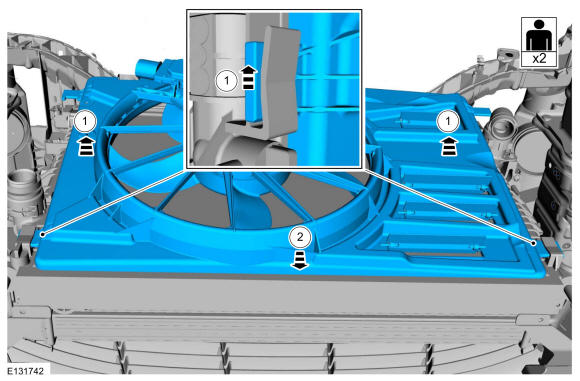

Lift up and remove the cooling fan motor and shroud.
 Courtesy of FORD MOTOR COMPANY
|
