Parking Brake Cable: Installation

1.

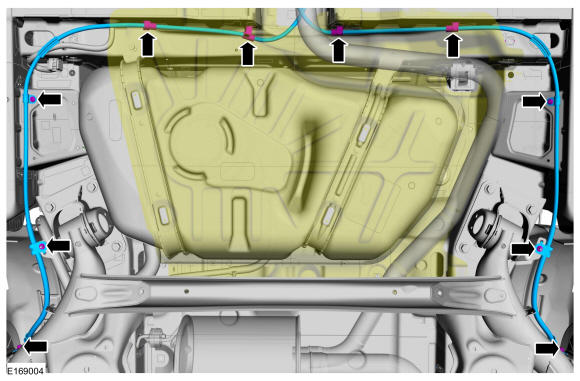

Install the parking brake cable, bracket bolts and nuts. Attach the parking brake cable retainers.
Torque: 89 lb.in (10 Nm)

GFD148350

Courtesy of FORD MOTOR COMPANY

2.

To install, reverse the removal procedure.

3.

Adjust the parking brake cables. Refer to: Parking Brake Cable Adjustment .
