Section 1109 (Information Center - Instrumentation, Message Center And Warning Chimes (Hybrid/ENERGI))
>>
Description And Operation
>>
Message Center - System Operation and Component Description
>>
System Operation
>>

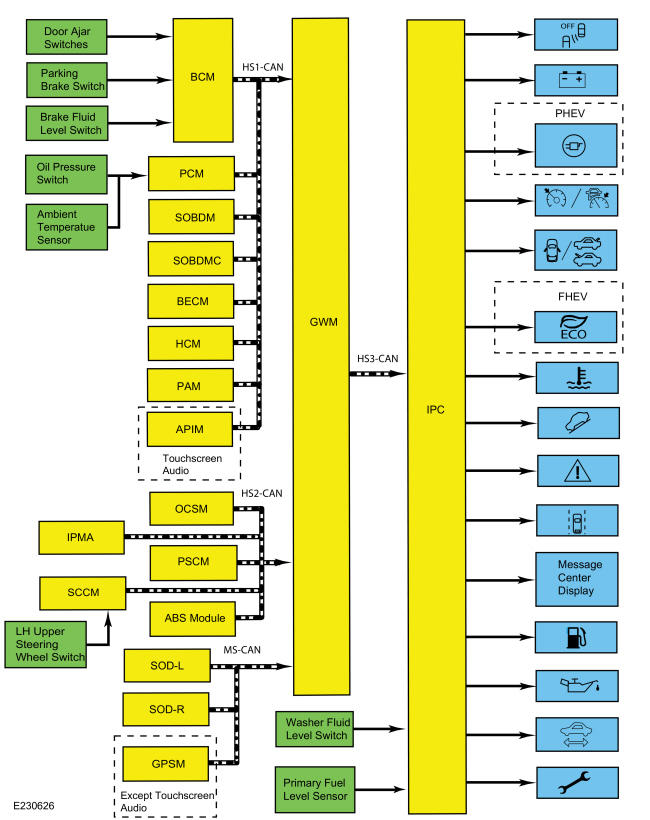

System Diagram
System Diagram
WARNING:
This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR COMPANY
