Brake Shoes: Installation

1.

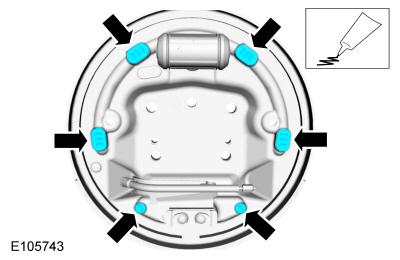

Apply the substance from the specified tube.
Material: Motorcraft ® Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)

GFD60602

Courtesy of FORD MOTOR COMPANY

2.

To install, reverse the removal procedure.

3.

Refer to: Brake Shoe Adjustment .
