Brake Shoe Adjustment
Special Tool(s) / General Equipment
| 206-D002 (D81L-1103-A) Gauge, Brake Adjustment | |
|---|---|
Activation
- 1.
Refer to: Brake Drum .
- 2.

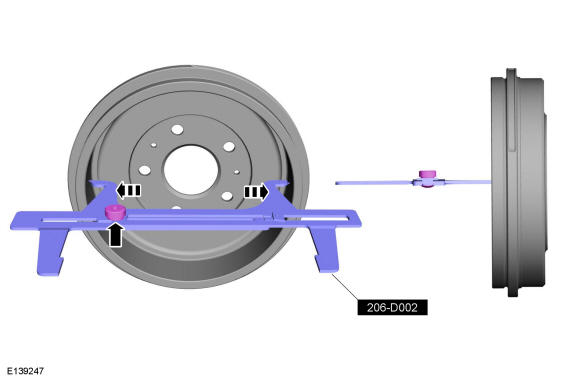

Using the special tool, measure the inside diameter of the brake drum. Use Special Service Tool: 206-D002 (D81L-1103-A) Gauge, Brake Adjustment.
- 3.

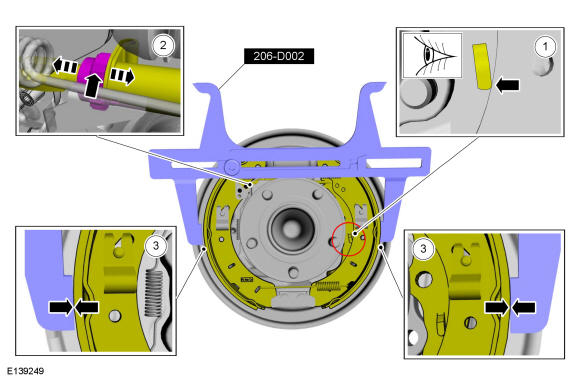

Position the special tool on the brake shoes and linings and adjust accordingly. Use Special Service Tool: 206-D002 (D81L-1103-A) Gauge, Brake Adjustment.
- 4.
Refer to: Brake Drum .
