Cooling Fan Motor and Shroud: Removal

NOTE: Removal steps in this procedure may contain installation details.

1.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

2.

If equipped, remove the retainers and the front lip seal.

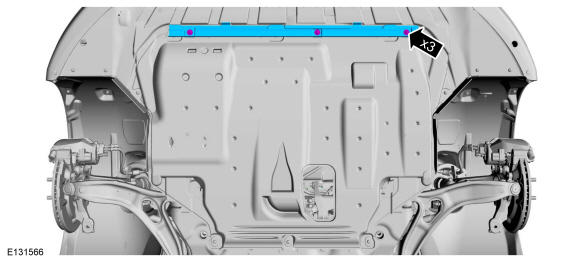

GFD44871

Courtesy of FORD MOTOR COMPANY

3.

If equipped, remove the retainers and the underbody shield.

GFD44502

Courtesy of FORD MOTOR COMPANY

4.

Remove the retainers and the underbody shield.

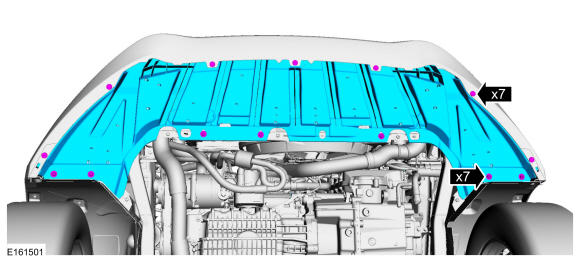

GFD44896

Courtesy of FORD MOTOR COMPANY

5.

Remove the front bumper cover. Refer to Removal .

6.

Remove the radiator side air deflectors pin-type retainers.

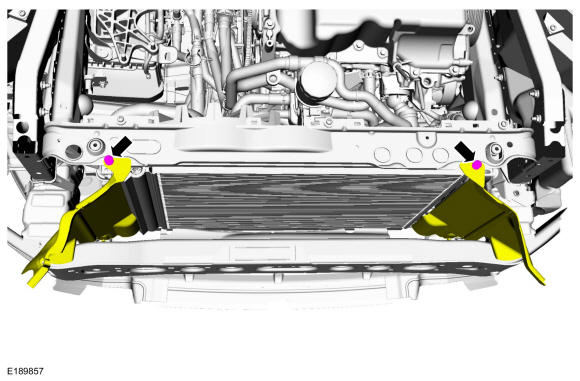

GFD45592

Courtesy of FORD MOTOR COMPANY

7.

Remove the radiator side air deflectors.
- 1.

  Remove the radiator side air deflector retainers.
- 2.

  Release the tab and remove the radiator side air deflectors.

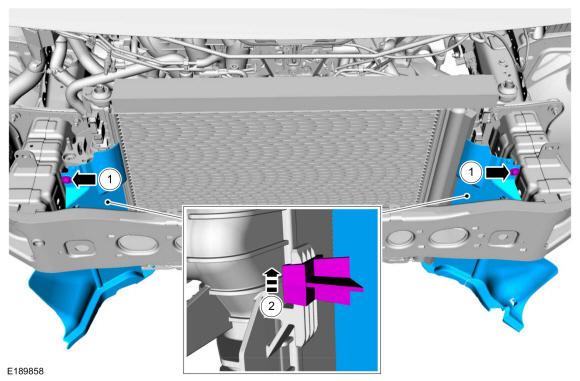

GFD45593

Courtesy of FORD MOTOR COMPANY

8.

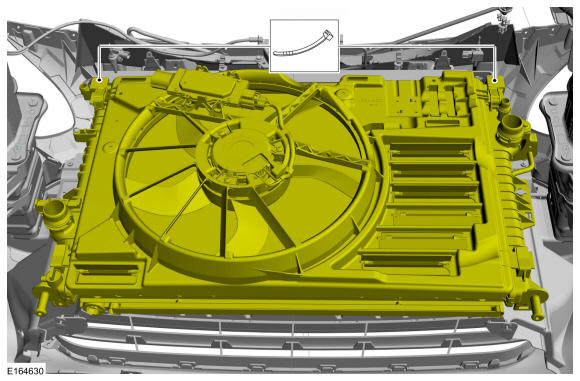

Loosely install the cable ties at both sides.
Use the General Equipment: Cable Ties

GFD45522

Courtesy of FORD MOTOR COMPANY

9.

Remove the front lower crossmember.
- 1.

  Remove the grommets and the front lower crossmember bracket bolts.
  Torque

  : 18 lb.ft (25 Nm)
- 2.

  Remove the bolts and the front lower crossmember.
  Torque

  : 18 lb.ft (25 Nm)

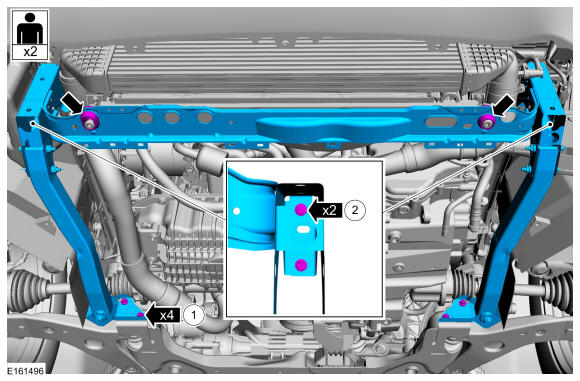

GFD45531

Courtesy of FORD MOTOR COMPANY

10.

Disconnect the cooling fan motor electrical connector and detach the wiring retainer.

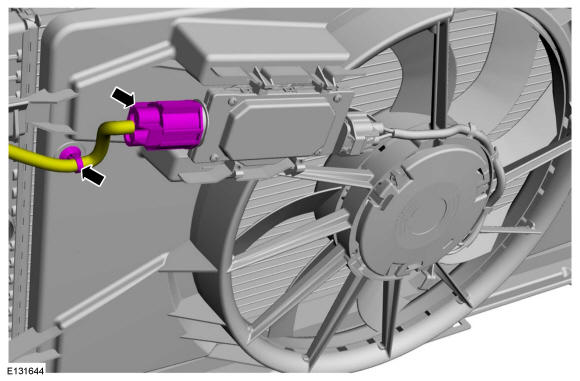

GFD45523

Courtesy of FORD MOTOR COMPANY

11.

Detach the retainers and position aside the hoses.

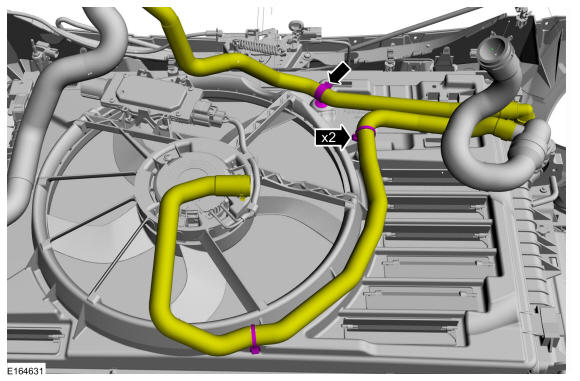

GFD45594

Courtesy of FORD MOTOR COMPANY

12.

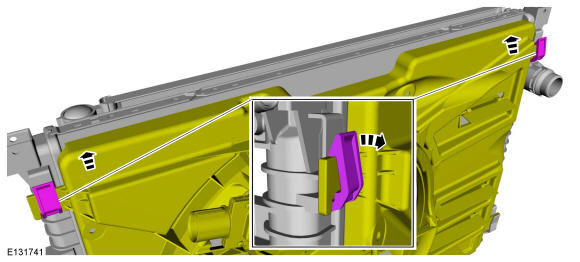

Release the cooling fan motor and shroud upper tabs.

GFD45533

Courtesy of FORD MOTOR COMPANY

13.

Lift up and remove the cooling fan motor and shroud.

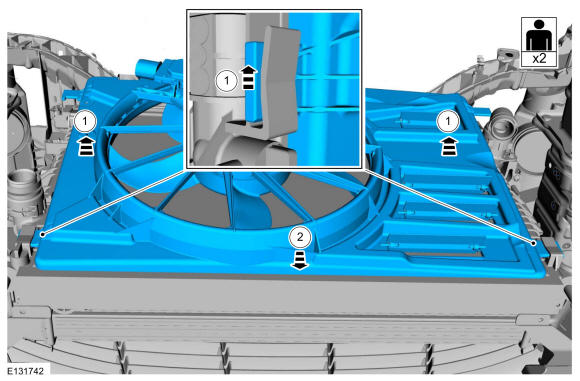

GFD45534

Courtesy of FORD MOTOR COMPANY
