Front Bumper Cover: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- 2.
Remove the headlamp assembly. Refer to: Headlamp Assembly .
- 8.

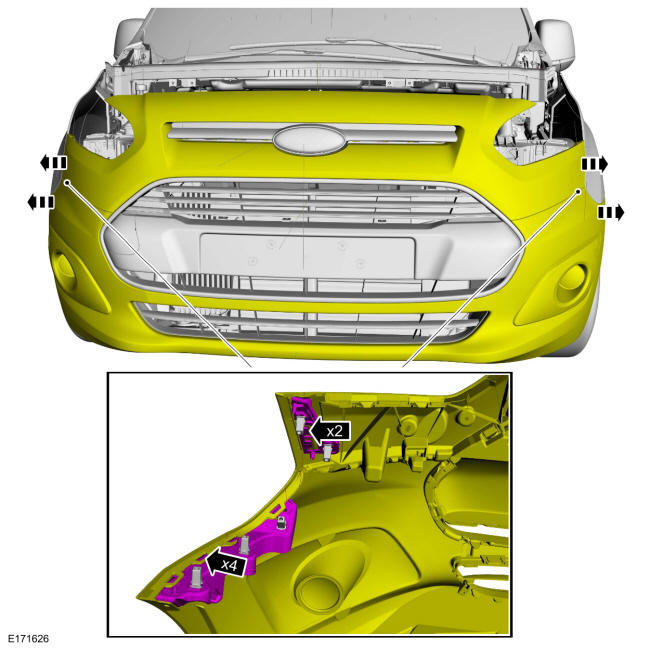

Remove the front bumper cover.- 1.

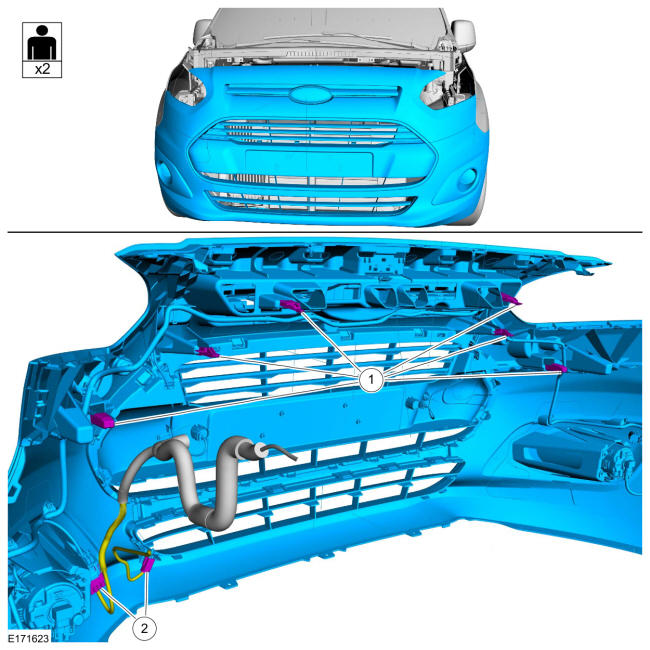

Release the tabs.
- 2.
If equipped. Disconnect the electrical connectors.
- 1.
