Removal And Installation: Spring: Installation

1.

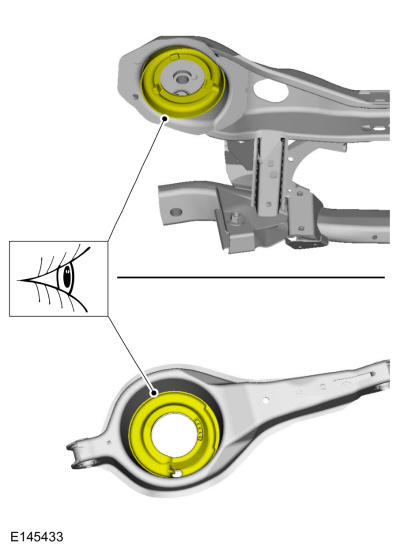

Visual check. Inspect the upper and lower spring seats for damage and replace as necessary.

GFD60498

Courtesy of FORD MOTOR COMPANY

2.

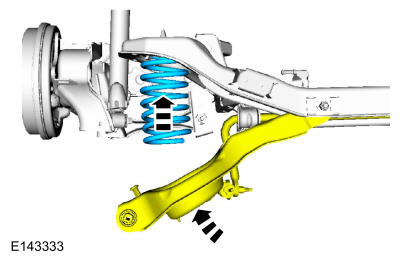

NOTE: Make sure that the spring is correctly located in both spring seats.

Install the spring and position the rear lower arm.

GFD60499

Courtesy of FORD MOTOR COMPANY

3.

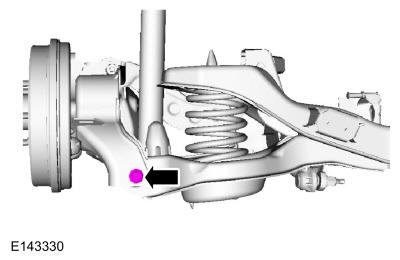

Finger tight at this stage. Install the new rear lower arm-to-trailing arm bolt.

GFD60500

Courtesy of FORD MOTOR COMPANY

4.

Support the rear lower arm. Use the General Equipment: Vehicle/Axle Stands

GFD60495

Courtesy of FORD MOTOR COMPANY

5.

NOTE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.

Tighten the rear lower arm-to-trailing arm bolt.

Torque

: 85 lb.ft (115 Nm)

GFD60500

Courtesy of FORD MOTOR COMPANY

6.

NOTE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.

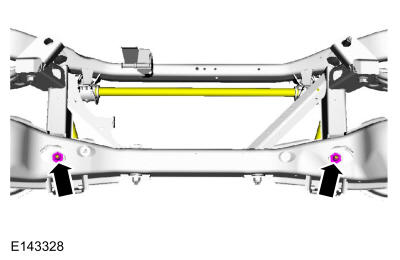

Position the rear stabilizer bar and the rear stabilizer bar links and install the new rear stabilizer bar link nuts.

Torque

: 35 lb.ft (48 Nm)

GFD60501

Courtesy of FORD MOTOR COMPANY

7.

Install the wheel and tire. REFER to: Wheel and Tire

8.

Check and, if necessary, adjust the rear toe. REFER to: Rear Toe Adjustment
