Rear Toe Adjustment
Rear Toe Adjustment
Special Tool(s) / General Equipment
| Wheel Alignment System |
Adjustment
- 1.
Using alignment equipment and the manufacturer's instructions, measure the rear toe. Use the General Equipment: Wheel Alignment System
NOTE:
The cam nut and cam bolt area must be free of foreign material to make sure of correct clamping.
NOTE:
Clean the general area of the joint to prevent foreign material from entering the joint. Clean the area using only mild liquids.
NOTE:
Jounce the vehicle to make sure that the suspension is in its normal, at-rest position.
- 2.

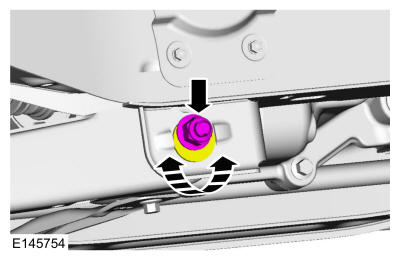

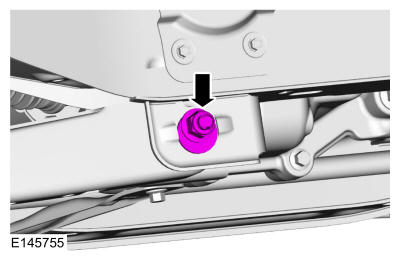

On both sides. Loosen the lower arm cam nut and adjust the rear toe setting by rotating the lower arm bolt and eccentric washer.
