Pinpoint Test Am : The Key-In-Ignition Warning Chime Is Inoperative
- AM1 CHECK THE SAFETY BELT WARNING CHIME OPERATION
- Ignition OFF.
- Ignition ON.
- Monitor the safety belt warning chime when the ignition is transitioned from OFF to RUN.
Does the safety belt warning chime operate for approximately 6 seconds?
Yes GO to AM2. No INSTALL a new IPC. REFER to Instrument Panel Cluster (IPC) . TEST the system for normal operation. - AM2 CHECK THE INTERIOR LAMPS OPERATION
- Open and close the driver door.
- Observe the interior lamps.
Do the interior lamps operate correctly from the driver door?
Yes GO to AM3. No REFER to Interior Lighting . - AM3 RETRIEVE THE RECORDED DTCs FROM THE BCM SELF-TEST
- Ignition ON.
- Using a scan tool, perform the BCM self-test.
Are any DTCs present?
Yes For DTC B10F1:14, GO to AM4. For all other DTCs, REFER to the BCM DTC Chart in Multifunction Electronic Modules . No GO to AM6. - AM4 CHECK THE KEY-IN-IGNITION INPUT CIRCUIT FOR VOLTAGE AT THE BCM
- Ignition OFF.
- Insert the key into the ignition cylinder.

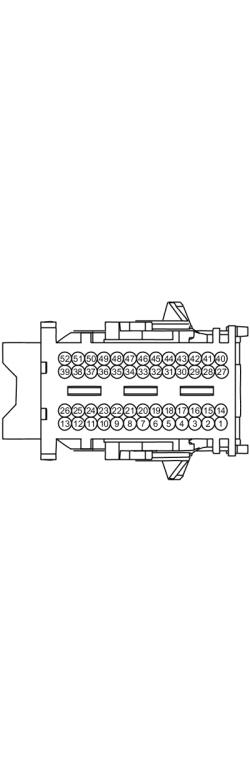

- Disconnect: BCM C2280B .
- Measure the voltage
between:
Positive Lead Negative Lead Pin Circuit Pin Circuit C2280B-34 CDC30 (BU) - Ground
Is the voltage greater than 11 volts?
Yes GO to AM6. No GO to AM5. - AM5 CHECK THE IGNITION SWITCH
- Ignition OFF.
- Disconnect: Ignition Switch.
- Carry out the ignition switch component test. REFER to Wiring Diagrams COMPONENT TESTING for component testing.
Is the ignition switch OK?
Yes REPAIR the circuit. No INSTALL a new ignition switch. REFER to Steering Column Switches . - AM6 CHECK FOR CORRECT BCM OPERATION
- Disconnect and inspect all the BCM connectors.
- Repair:
- corrosion (install new connector or terminals - clean module pins)
- damaged pins - install new terminals/pins
- pushed-out pins - install new pins as necessary
- Reconnect all the BCM connectors. Make sure they seat and latch correctly.
- Operate the system and determine if the concern is still present.
Is the concern still present?
Yes CHECK OASIS for any applicable TSBs. If a TSB exists for this concern, DISCONTINUE this test and FOLLOW TSB instructions. If no TSBs address this concern, INSTALL a new BCM. REFER to Multifunction Electronic Modules . No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.
