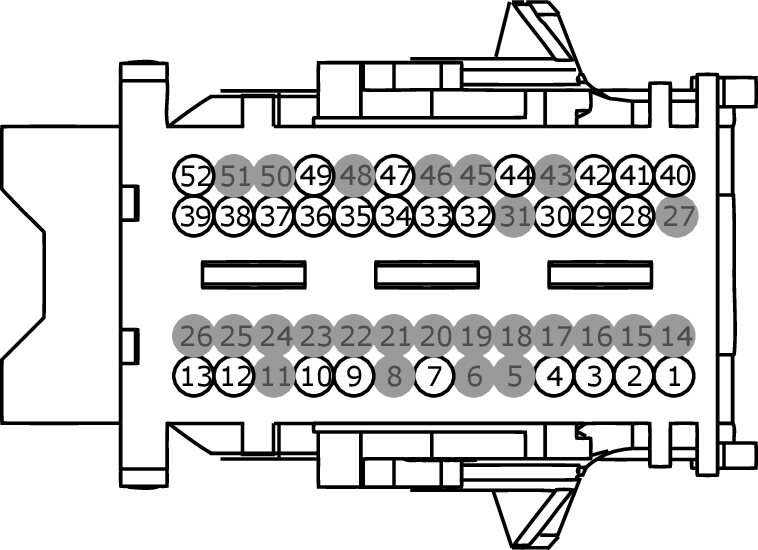

Connector End View (C2280B) - BODY CONTROL MODULE (BCM)
Connector: C2280B
Description
BODY CONTROL MODULE (BCM)
Color
BK
Harness
14401
Base Part #
part# N/A
Service Pigtail
Not Available
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
SBP09 (RD) |
18 |
FUSE - 9 OR CIRCUIT BREAKER |
|
|
2 |
CBP34 (VT-BN) |
22 |
FUSE - 34 OR CIRCUIT BREAKER |
|
|
3 |
CBP41 (BU) |
22 |
FUSE - 41 OR CIRCUIT BREAKER |
|
|
4 |
CBP31 (BU-OG) |
22 |
FUSE - 31 OR CIRCUIT BREAKER |
|
|
5 |
* |
* |
Not Used |
|
|
6 |
* |
* |
Not Used |
|
|
7 |
CBP35 (YE) |
26 |
FUSE - 35 OR CIRCUIT BREAKER |
|
|
8 |
* |
* |
Not Used |
|
|
9 |
CBP36 (BU-BN) |
18 |
FUSE - 36 OR CIRCUIT BREAKER |
with Heated steering wheel |
|
10 |
CBP37 (WH) |
20 |
FUSE - 37 OR CIRCUIT BREAKER |
|
|
11 |
* |
* |
Not Used |
|
|
12 |
SBP26 (YE-RD) |
18 |
FUSE - 26 OR CIRCUIT BREAKER |
|
|
12 |
SBP26 (RD) |
26 |
FUSE - 26 OR CIRCUIT BREAKER |
with IA |
|
13 |
CBP38 (GY-BU) |
22 |
FUSE - 38 OR CIRCUIT BREAKER |
|
|
14 |
* |
* |
Not Used |
|
|
15 |
* |
* |
Not Used |
|
|
16 |
* |
* |
Not Used |
|
|
17 |
* |
* |
Not Used |
|
|
18 |
* |
* |
Not Used |
|
|
19 |
* |
* |
Not Used |
|
|
20 |
* |
* |
Not Used |
|
|
21 |
* |
* |
Not Used |
|
|
22 |
* |
* |
Not Used |
|
|
23 |
* |
* |
Not Used |
|
|
24 |
* |
* |
Not Used |
|
|
25 |
* |
* |
Not Used |
|
|
26 |
* |
* |
Not Used |
|
|
27 |
* |
* |
Not Used |
|
|
28 |
CCB08 (VT-WH) |
22 |
SWITCH - BRAKE PEDAL POSITION (BPP) |
|
|
29 |
CDC34 (WH-OG) |
18 |
SWITCH - IGNITION # RUN; START |
|
|
30 |
VLF14 (BU-BN) |
22 |
SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) + |
with manual a/c |
|
30 |
VLF14 (BU) |
26 |
SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) + |
with automatic a/c |
|
31 |
* |
* |
Not Used |
|
|
32 |
CLS32 (BN) |
26 |
SWITCH - HAZARD |
|
|
33 |
CRH04 (VT-GN) |
20 |
CTRL MOD. - RELAY HORN |
|
|
34 |
CDC30 (BU) |
26 |
SWITCH - IGNITION # KEY IN |
|
|
35 |
CDC33 (VT) |
26 |
SWITCH - IGNITION # RUN; ACCESSORY |
|
|
36 |
VRT23 (VT) |
26 |
TRANSCEIVER - PASSIVE ANTI THEFT (IMMOBILIZER) # RX DATA (RX_IN) |
|
|
37 |
VRT24 (YE) |
26 |
TRANSCEIVER - PASSIVE ANTI THEFT (IMMOBILIZER) # TX CNTRL |
|
|
38 |
VDB06 (GY-OG) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH |
|
|
39 |
VDB07 (VT-OG) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW |
|
|
40 |
VLN04 (VT-GY) |
20 |
CTRL MOD. - IP/SWITCH ILLUMINATION |
|
|
41 |
CDC35 (BU-WH) |
22 |
SWITCH - IGNITION # START |
|
|
42 |
CPK36 (VT) |
26 |
CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP RUN LED |
|
|
43 |
* |
* |
Not Used |
|
|
44 |
CPK35 (YE) |
26 |
CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 2 + |
|
|
45 |
* |
* |
Not Used |
|
|
46 |
* |
* |
Not Used |
|
|
47 |
CDC35 (BU-WH) |
22 |
SWITCH - IGNITION # START |
|
|
48 |
* |
* |
Not Used |
|
|
49 |
CET53 (BU-OG) |
22 |
CTRL MOD. - POWERTRAIN # BRAKE SHIFT INTERLOCK |
|
|
50 |
* |
* |
Not Used |
|
|
51 |
* |
* |
Not Used |
|
|
52 |
VDN01 (BU) |
26 |
CTRL MOD. - LIN BUS # SPDJB 1 |
