Heater Hoses: Removal
WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
- 2.
Drain the cooling system. REFER to: Cooling System Draining, Vacuum Filling and Bleeding .
- 3.
Remove the cowl panel. REFER to: Cowl Panel Grille .
- 4.

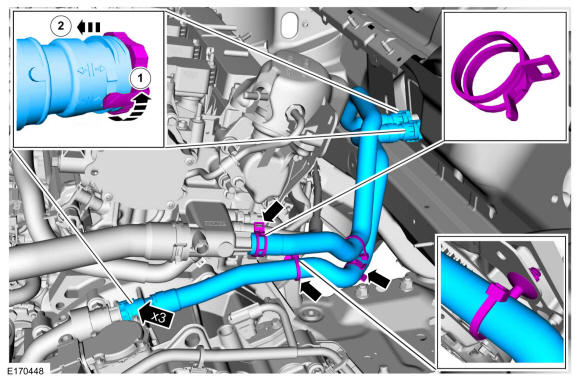

- Detach the heater hose pin-type retainer. If necessary remove the heater hose support clip.
- Release the hose clamp and disconnect the coolant hose from the coolant outlet adapter.
Use the General Equipment: Hose Clamp Remover/Installer
- Rotate the lock rings on the quick disconnect fittings to the release position and disconnect and remove the heater hose assembly.
