Coolant Pump: Removal
WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in GENERAL INFORMATION . Failure to follow this instruction may result in serious personal injury.
Refer to: Engine Cooling System Health and Safety Precautions .
- 2.
Drain the cooling system. REFER to: Cooling System Draining, Vacuum Filling and Bleeding .
- 4.NOTE: Position the accessory drive belt so no coolant will drip on the belt, or the belt may be contaminated.
- 1.

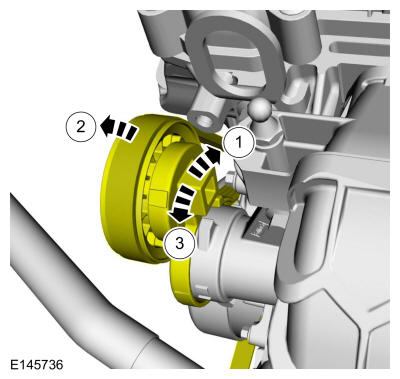

Using a suitable tool retract the accessory drive belt tensioner.
- 2.
Position aside the accessory drive belt.
- 3.
Release the accessory drive belt tensioner.
- 1.
