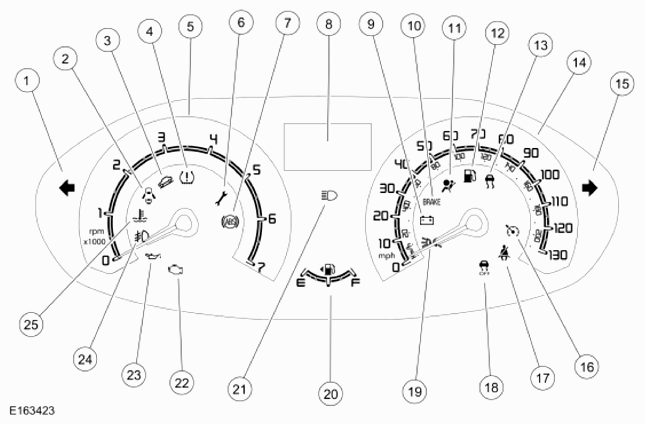

Instrument Panel Cluster (IPC) - Overview: Overview
| Item | Description |
|---|---|
| 1 | Left turn signal indicator |
| 2 | Door ajar indicator |
| 3 | Grade assist indicator |
| 4 | TPMS warning indicator |
| 5 | Tachometer |
| 6 | Powertrain malfunction (wrench) indicator |
| 7 | ABS warning indicator |
| 8 | Integrated LCD |
| 9 | Charging system warning indicator |
| 10 | Brake warning indicator |
| 11 | Airbag warning indicator |
| 12 | Low fuel warning indicator |
| 13 | Stability-traction control (sliding car icon) indicator |
| 14 | Speedometer |
| 15 | Right turn signal indicator |
| 16 | Cruise control indicator |
| 17 | Safety belt warning indicator |
| 18 | Stability-traction control disabled (sliding car OFF icon) indicator |
| 19 | Lights on indicator |
| 20 | Fuel gauge |
| 21 | High beam indicator |
| 22 | MIL |
| 23 | Low oil pressure warning indicator |
| 24 | Front fog lamp indicator |
| 25 | Engine temperature warning indicator |
The IPC contains gauges, informational indicators, warning indicators and an integrated LCD designed to provide the driver with system status and to alert the driver when certain conditions exist in the vehicle.
