Section 7 (Engine Mechanical - 3.7L): Removal: Engine

WARNING: This page is about a different variant/trim than selected.
SPECIAL TOOLS DESCRIPTION

G08977757
 2, 200# Floor Crane, Fold Away
300-OTC1819E
G08977758
 Adjustable Grip Arm, 1735A
014-00001
G08977759
 Disconnect Tool, Transmission Cooler Tube
307-569
G08977760
 Eye, Engine Lift
303-1245
G08977761
 Powertrain Lift
300-OTC1585AE
G08977762
 Spreader Bar
303-D089 (D93P-6001-A3) or equivalent
WARNING: Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

All vehicles

  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to JACKING & LIFTING .
  2. Remove the engine appearance cover. Refer to ENGINE APPEARANCE COVER - EXPLODED VIEW .
  3. Recover the A/C system. Refer to HVAC - CLIMATE CONTROL SYSTEM - GENERAL INFORMATION AND DIAGNOSTICS .
  4. Release the fuel system pressure. Refer to FUEL SYSTEM - GENERAL INFORMATION .
  5. NOTE: Use a steering wheel holding device (such as Hunter® 28-75-1 or equivalent).

    Using a suitable holding device, hold the steering wheel in the straight-ahead position.

    Fig 1: Holding Steering Wheel In Straight-Ahead Position Using Tool
    G08977763Courtesy of FORD MOTOR CO.
  6. Drain the engine cooling system. Refer to ENGINE COOLING .
  7. Remove the LH and RH front wheels and tires. Refer to WHEELS & TIRES .
  8. Remove the LH and RH inner splash shields. Refer to BODY PANEL SYSTEM - FRONT END BODY PANELS .
  9. Remove the accessory drive belt and the power steering belt. Refer to ACCESSORY DRIVE BELT .

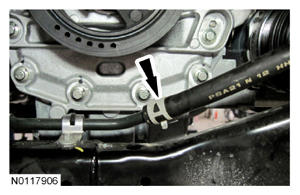

  10. Disconnect the power steering cooler hose and drain the power steering fluid into a suitable drain pan.
    G08977764

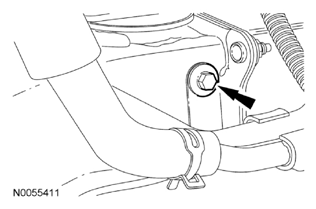

  11. Remove the power steering cooler bracket bolt from the RH side of the subframe.
    Fig 2: Locating Power Steering Cooler Bracket Bolt
    G08977765Courtesy of FORD MOTOR CO.
  12. Remove the degas bottle. Refer to ENGINE COOLING .
  13. Disconnect the hose from the power steering reservoir.
    Fig 3: Locating Power Steering Reservoir Hose Clamp
    G08977766Courtesy of FORD MOTOR CO.
  14. Remove the engine Air Cleaner (ACL) and ACL outlet pipe. Refer to INTAKE AIR DISTRIBUTION SYSTEM & INTAKE AIR FILTERING SYSTEM .
  15. Remove the battery tray. Refer to BATTERY, BATTERY MOUNTING & BATTERY CABLES .

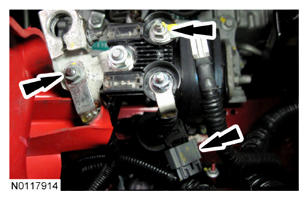

  16. Remove the 2 nuts and disconnect the power feed from the battery terminal.
    • Disconnect the wiring harness electrical connector.
      G08977767
  17. Remove the nut and the ground wire.
    • Disconnect the wiring harness electrical connector.
      G08977768

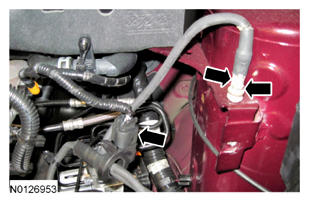

  18. Detach the 2 wiring harness retainers from the stud bolt and bracket.
    G08977769

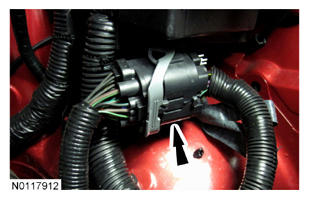

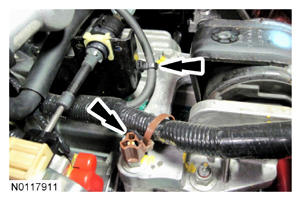

  19. Disconnect the wiring harness electrical connector.
    G08977770

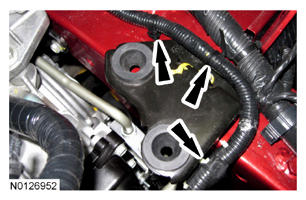

  20. Detach the 3 wiring harness retainers from the bracket and inner fender.
    G08977771
  21. Disconnect the vacuum hose from the upper intake manifold.
    G08977772

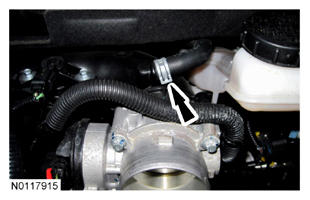

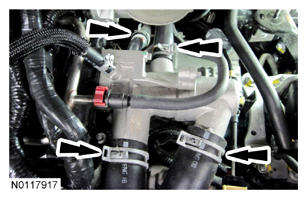

  22. Disconnect the upper radiator hose, lower radiator hose and 2 heater hoses from the thermostat housing.
    G08977773
  23. Disconnect the transaxle control cable from the control lever.
    • Detach the control cable from the bracket.
      Fig 4: Removing Bracket Control Cable
      G08977774Courtesy of FORD MOTOR CO.

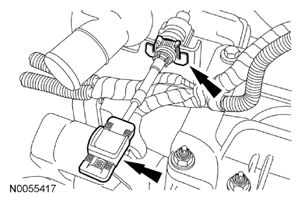

  24. If equipped, detach the engine block heater harness retainers from the radiator support and the A/C suction tube.

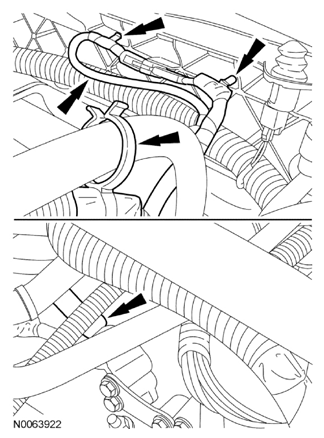

    Fig 5: Locating Engine Wiring Harness
    G08977775Courtesy of FORD MOTOR CO.

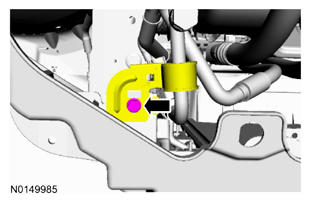

  25. Remove the A/C tube bracket bolt.
    G08977776

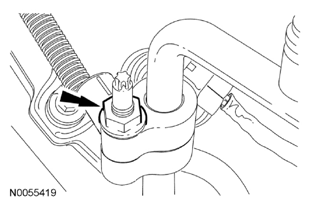

  26. Remove the nut and disconnect the A/C pressure tube fitting.
    • Discard the O-ring seal.
      Fig 6: Locating O-Ring Seal
      G08977777Courtesy of FORD MOTOR CO.
  27. Remove the safety clip from the A/C fitting.
    • Disconnect the A/C suction tube fitting.
      Fig 7: Locating A/C Suction Tube Fitting
      G08977778Courtesy of FORD MOTOR CO.

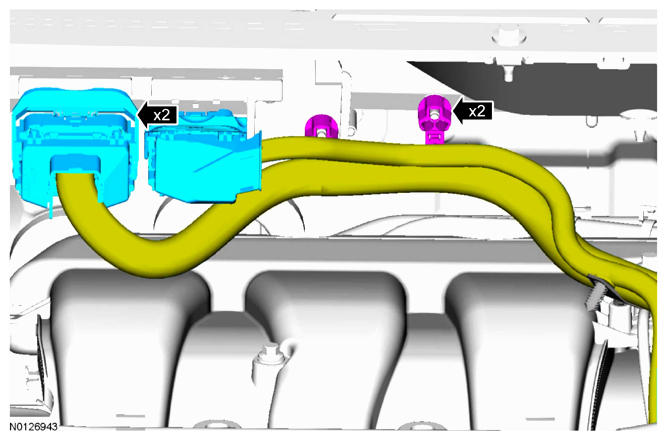

  28. Disconnect the 2 PCM electrical connectors.
    • Detach the 2 wiring harness retainers from the stud bolts.
      G08977779

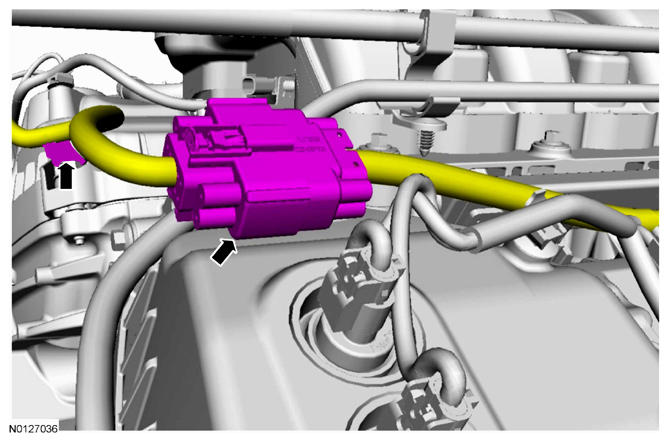

  29. Disconnect the wiring harness electrical connector.
    • Detach the wiring harness retainer from the RH valve cover stud bolt.
      G08977780
  30. Remove the bolt and the ground wire from the engine front cover.
    G08977781

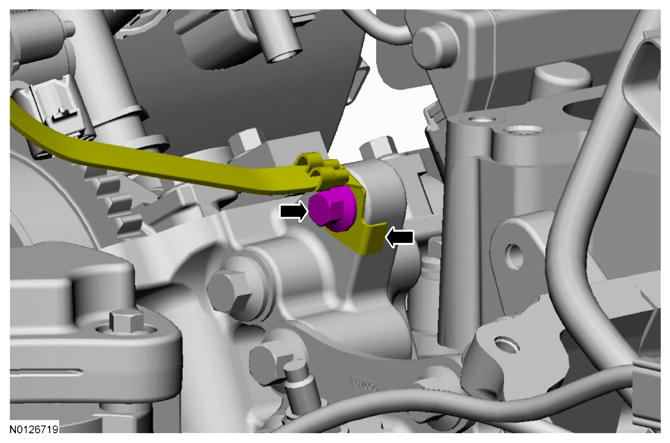

  31. Remove the nut and the radio interference capacitor wire from the engine front cover stud.

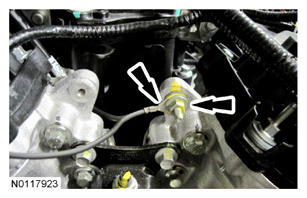

    G08977782

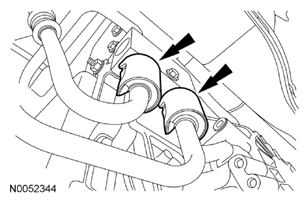

  32. Remove the 2 secondary latches from the transmission fluid cooler tubes.
    Fig 8: Locating Transmission Fluid Cooler Tubes Secondary Latches
    G08977783Courtesy of FORD MOTOR CO.

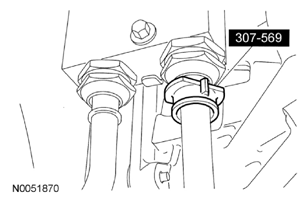

  33. Using the Transmission Cooler Tube Disconnect Tool, disconnect the transmission cooling tubes.
    Fig 9: Disconnecting Transmission Cooling Tubes
    G08977784Courtesy of FORD MOTOR CO.
  34. NOTE: RH shown, LH similar.
    NOTE: The guide pin bolts are different sizes. The larger bolt is the upper guide pin bolt.

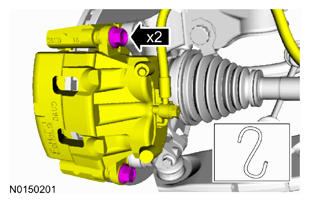

    Remove the 2 RH and 2 LH brake caliper guide pin bolts and position aside the front brake calipers and secure with a length of mechanic's wire.

    G08977785
  35. NOTE: RH shown, LH similar.

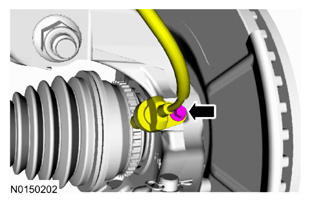

    Remove the bolts and position aside the RH and LH front wheel speed sensor.

    G08977786
  36. NOTE: RH shown, LH similar.

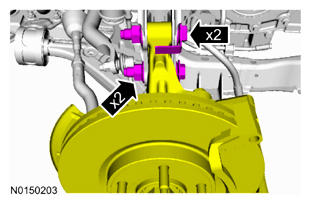

    Remove the 2 RH and 2 LH front shock absorber lower flag bolts and nuts.

    G08977787
  37. Remove the exhaust Y-pipe. Refer to EXHAUST SYSTEM .

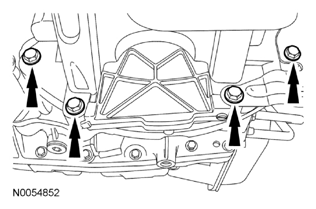

  38. Remove the 4 oil pan-to-transaxle bolts.
    Fig 10: Locating Oil Pan-To-Transaxle Bolts
    G08977788Courtesy of FORD MOTOR CO.

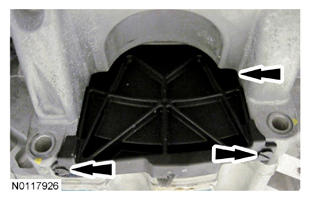

  39. Remove the 2 fasteners and the inspection cover.
    G08977789

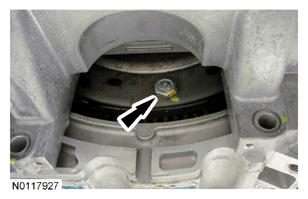

  40. Remove and discard the 3 torque converter bolts.
    G08977790

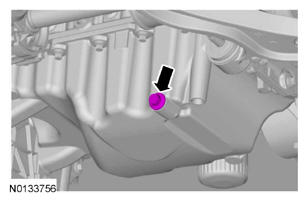

  41. Remove the drain plug and drain the engine oil.
    • Install the drain plug and tighten to 27 Nm (20 lb-ft).
      G08977791

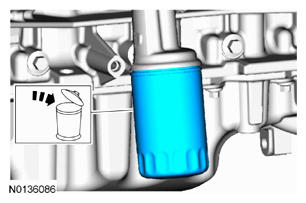

  42. Remove and discard the engine oil filter.
    G08977792

    All-Wheel Drive (AWD) vehicles

  43. NOTE: Index-mark the driveshaft for installation.

    Remove the 4 bolts and support the driveshaft with a length of mechanic's wire.

    Fig 11: Locating Driveshaft Support Bolts
    G08977793Courtesy of FORD MOTOR CO.

    All vehicles

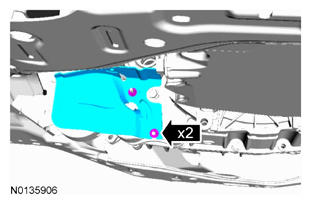

  44. Remove the 2 nuts and the roll restrictor heat shield.
    G08977794
  45. NOTE: Do not allow the intermediate shaft to rotate while it is disconnected from the gear or damage to the clockspring can occur. If there is evidence that the intermediate shaft has rotated, the clockspring must be removed and recentered. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM .

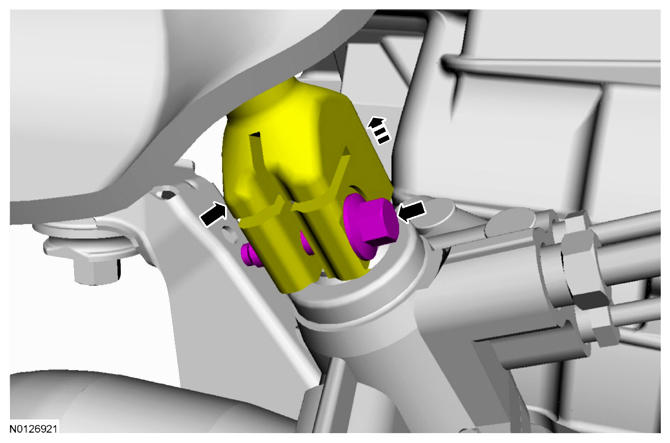

    Remove and discard the steering intermediate shaft bolt.

    • Separate the steering intermediate shaft from the steering gear.
      G08977795
  46. Remove the 3 RH subframe-to-lower bumper nuts.
    Fig 12: Locating RH Subframe To Lower Bumper Nuts
    G08977796Courtesy of FORD MOTOR CO.
  47. Remove the 3 LH subframe-to-lower bumper nuts and separate the lower bumper from the subframe.
    Fig 13: Locating LH Subframe-To-Lower Bumper Nuts
    G08977797Courtesy of FORD MOTOR CO.

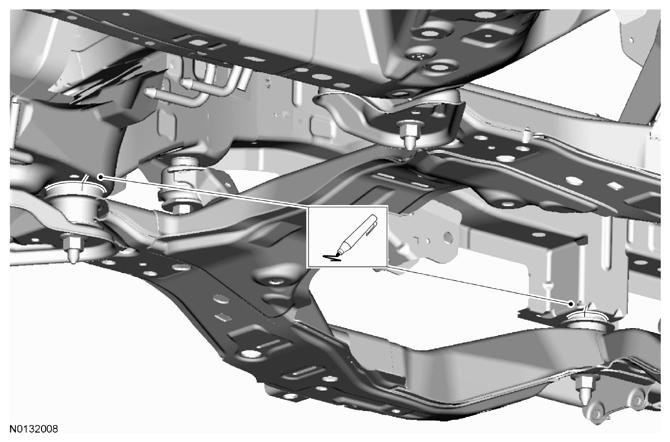

  48. Mark the relationship of the front subframe to the underbody at the mounting locations.
    G08977798

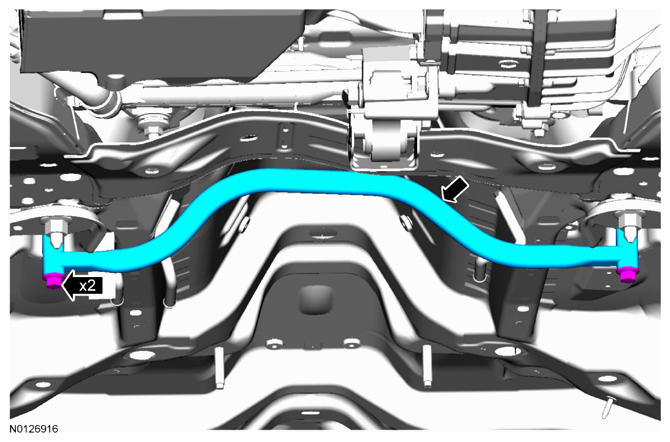

  49. Remove the 2 bolts and the subframe brace.
    G08977799
  50. NOTE: The fuel and vapor tube assembly clip must remain attached to the transaxle case stud during engine removal. Failure to follow these instructions can result in damage to the fuel and vapor tube assembly.

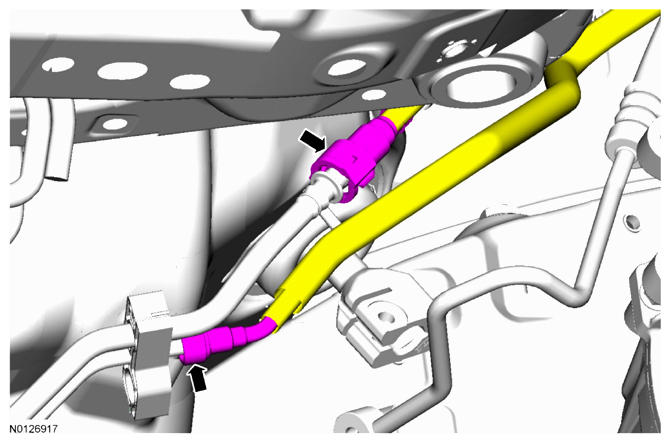

    Disconnect the fuel supply tube and Evaporative Emission (EVAP) tube quick connect couplings. For additional information, refer to the QUICK CONNECT COUPLING procedure.

    G08977800

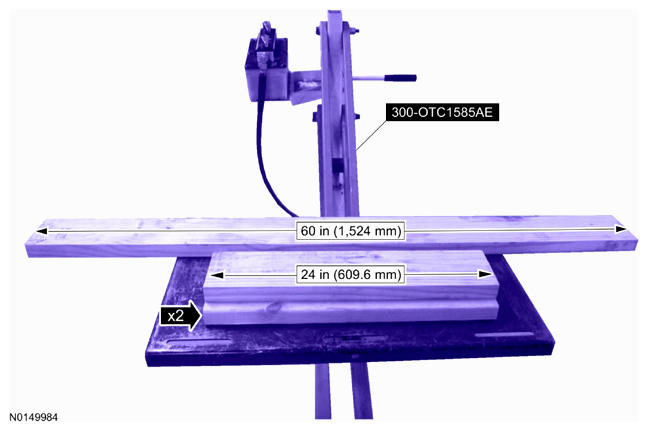

  51. Position a 2 x 6 board, 60 in (1, 524 mm) in length and two 2 x 6 boards, 24 in (609.6 mm) in length onto the Powertrain Lift.
    G08977801
  52. NOTE: RH shown, LH similar.

    Position the Powertrain Lift and boards.

    1. Position the long board directly under the control arms.
    2. Position the short boards under the engine oil pan and transmission.

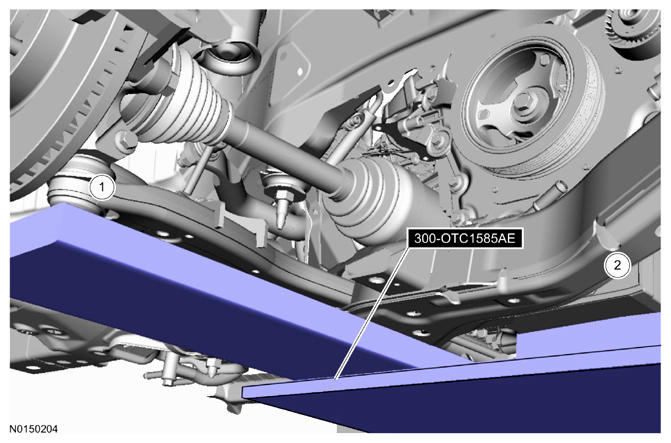

      G08977802
  53. Install an Adjustable Grip Arm from the Powertrain Lift to the LH engine-to-transmission bolt hole.
    G08977803

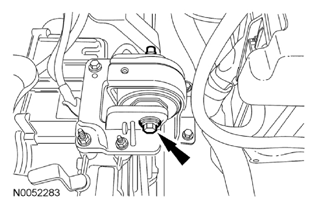

  54. Remove the transaxle support insulator through bolt and nut.
    Fig 14: Locating Transaxle Support Bolt
    G08977804Courtesy of FORD MOTOR CO.
  55. Remove the 3 nuts, the bolt and the transaxle support insulator bracket.
    Fig 15: Locating Transaxle Support Insulator Bracket Bolt
    G08977805Courtesy of FORD MOTOR CO.

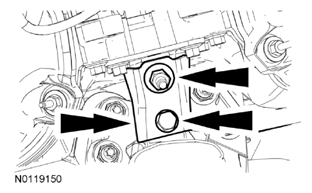

  56. Remove the nut, bolt and engine mount brace.
    Fig 16: Locating Engine Mount Brace Nut And Bolt
    G08977806Courtesy of FORD MOTOR CO.

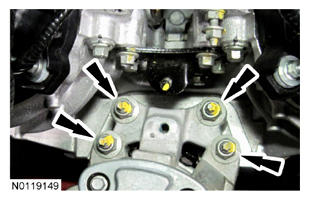

  57. Remove the 4 engine mount nuts.
    G08977807

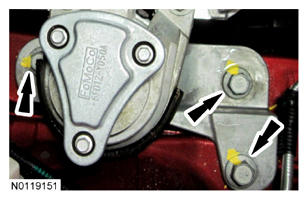

  58. Remove the 3 bolts and the engine mount.
    G08977808

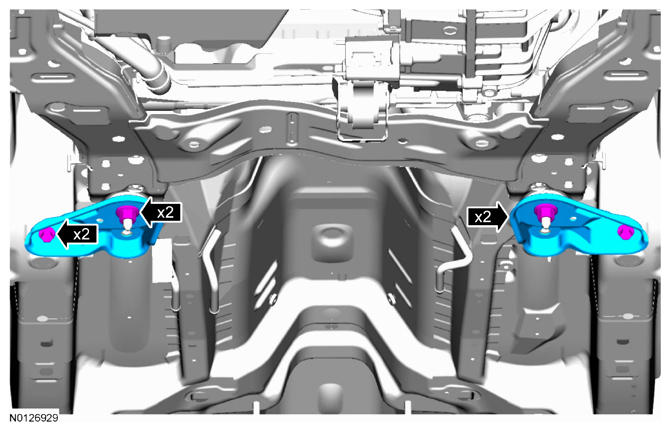

  59. Remove the 2 nuts, 2 bolts and the 2 subframe support brackets.
    G08977809
  60. Remove the 2 front subframe nuts.

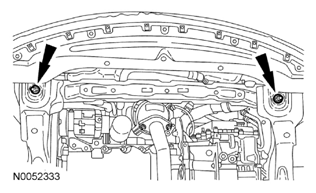

    Fig 17: Locating Front Subframe Nuts
    G08977810Courtesy of FORD MOTOR CO.
  61. Remove the 2 middle subframe nuts and lower subframe onto the Powertrain Lift.
    • Lower the powertrain/subframe assembly from the vehicle.

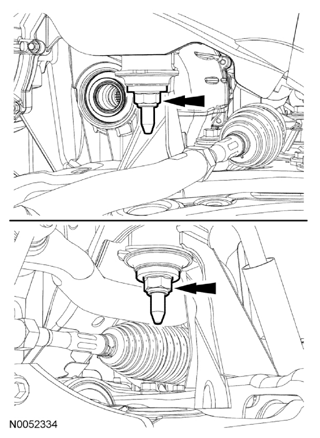

      Fig 18: Locating Middle Subframe Nuts
      G08977811Courtesy of FORD MOTOR CO.

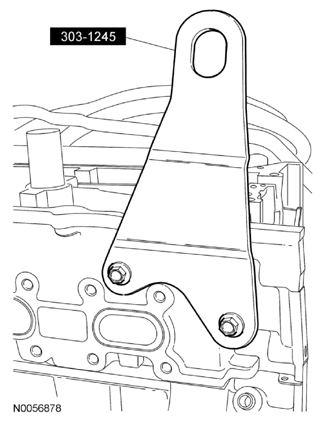

  62. Install the Engine Lift Eye on the LH cylinder head.
    Fig 19: Locating Engine Lift Eye On LH Cylinder Head
    G08977812Courtesy of FORD MOTOR CO.
  63. Install the Floor Crane and Spreader Bar.
    Fig 20: Locating Floor Crane And Spreader Bar
    G08977813Courtesy of FORD MOTOR CO.

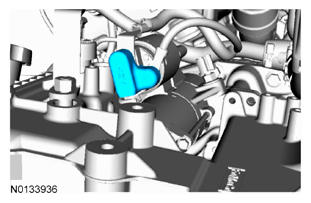

  64. Remove the starter motor solenoid cover.
    G08977814

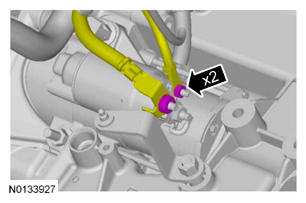

  65. Remove the 2 nuts and the starter motor wiring terminals.
    G08977815

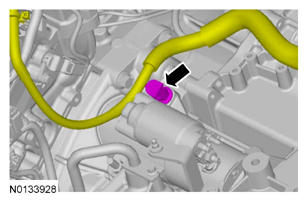

  66. Disconnect the wiring harness retainer from the starter motor stud bolt.
    G08977816

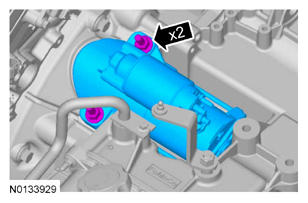

  67. Remove the bolt, stud bolt and the starter.
    G08977817

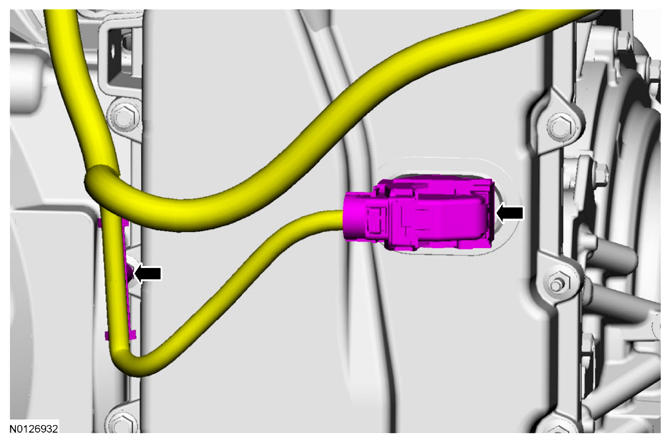

  68. Disconnect the transmission control electrical connector.
    • Detach the wiring harness retainer.
      G08977818

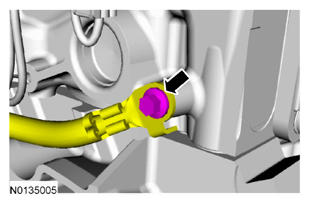

  69. Remove the bolt for the ground on the back side of the RH cylinder head and position the wiring harness aside.
    G08977819

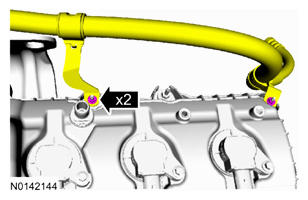

  70. Remove the 2 nuts from valve cover for power steering hose retainers.
    G08977820
  71. NOTE: Power steering hoses removed from graphic for clarity.

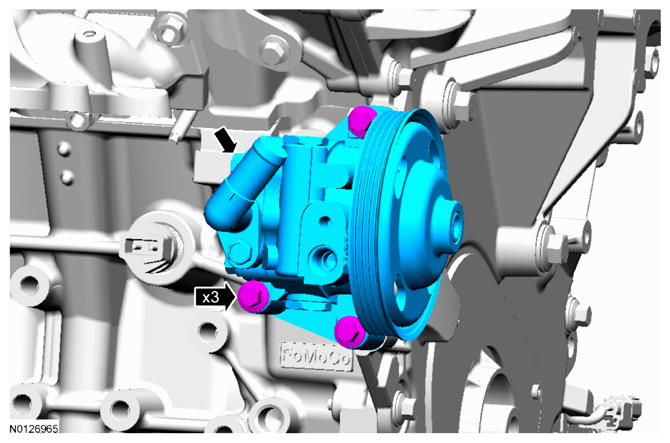

    Remove the 3 bolts and position aside the power steering pump.

    G08977821
  72. Disconnect the RH Catalyst Monitor Sensor (CMS) electrical connector.
    Fig 21: Locating RH Catalyst Monitor Sensor Electrical Connector
    G08977822Courtesy of FORD MOTOR CO.

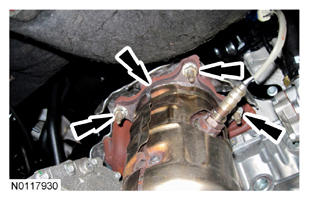

  73. Remove the 4 nuts (3 shown) and the RH catalytic converter.
    • Discard the gasket and the nuts.
      G08977823

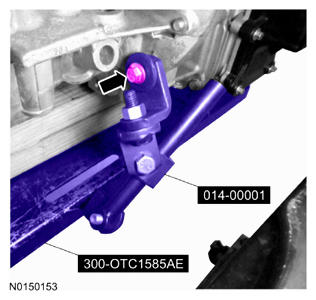

  74. Remove the Adjustable Grip Arm.
    G08977824

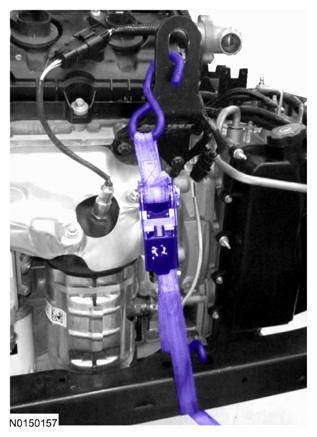

  75. Install a ratchet strap from the front subframe to the LH engine lift eye.
    G08977825
  76. Using the Floor Crane and Spreader Bar, remove the powertrain and subframe as an assembly from the Powertrain Lift and set on the ground.
    • Position wood blocks under the engine and transmission.
    • Secure the RH knuckle to the transaxle with a ratchet strap to keep RH halfshaft in place.
      Fig 22: Locating Floor Crane And Spreader Bar
      G08977826Courtesy of FORD MOTOR CO.
  77. Remove the ratchet strap.
    G08977827

    AWD vehicles

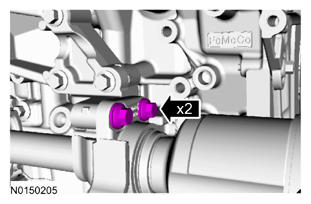

  78. Remove the 2 RH halfshaft-to-PTU bracket bolts.
    G08977828
  79. Remove the 5 bolts and the Power Transfer Unit (PTU) support bracket.
    Fig 23: Locating Power Transfer Unit Support Bracket Bolts
    G08977829Courtesy of FORD MOTOR CO.

    FWD vehicles

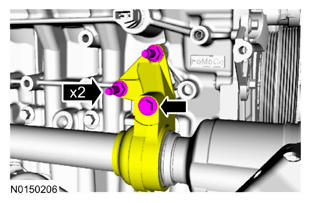

  80. Remove the RH halfshaft bolt and 2 stud bolts.
    G08977830

    All vehicles

  81. Disconnect the EVAP tube quick connect coupling from the purge valve. For additional information, refer to the QUICK CONNECT COUPLING procedure.
    • Detach the EVAP tube retainer.
      G08977831
  82. NOTE: Do not separate the fuel and vapor tube assembly clip from the transaxle case stud. Failure to follow these instructions can result in damage to the fuel and vapor tube assembly.

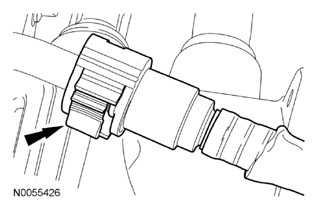

    Disconnect the fuel supply tube. For additional information, refer to the QUICK CONNECT COUPLING procedure.

    Fig 24: Locating Fuel Supply Tube
    G08977832Courtesy of FORD MOTOR CO.

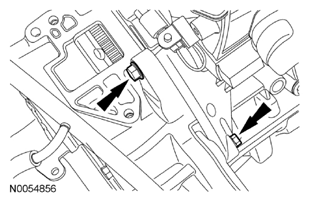

  83. Remove the 2 engine-to-transaxle bolts.
    Fig 25: Locating Engine-To-Transaxle Bolts
    G08977833Courtesy of FORD MOTOR CO.
  84. Remove the 5 transaxle-to-engine bolts.
    • Separate the transaxle from the engine.
      Fig 26: Locating Transaxle-To-Engine Bolts
      G08977834Courtesy of FORD MOTOR CO.
  85. Using the Floor Crane and Spreader Bar, remove the engine from the transaxle.
    Fig 27: Locating Floor Crane And Spreader Bar
    G08977835Courtesy of FORD MOTOR CO.
